Bosch GSB 13

Bosch GSB 13 drill: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13: 26 positions on 1 sheet

Bosch GSB 13 parts list (1 sheet)

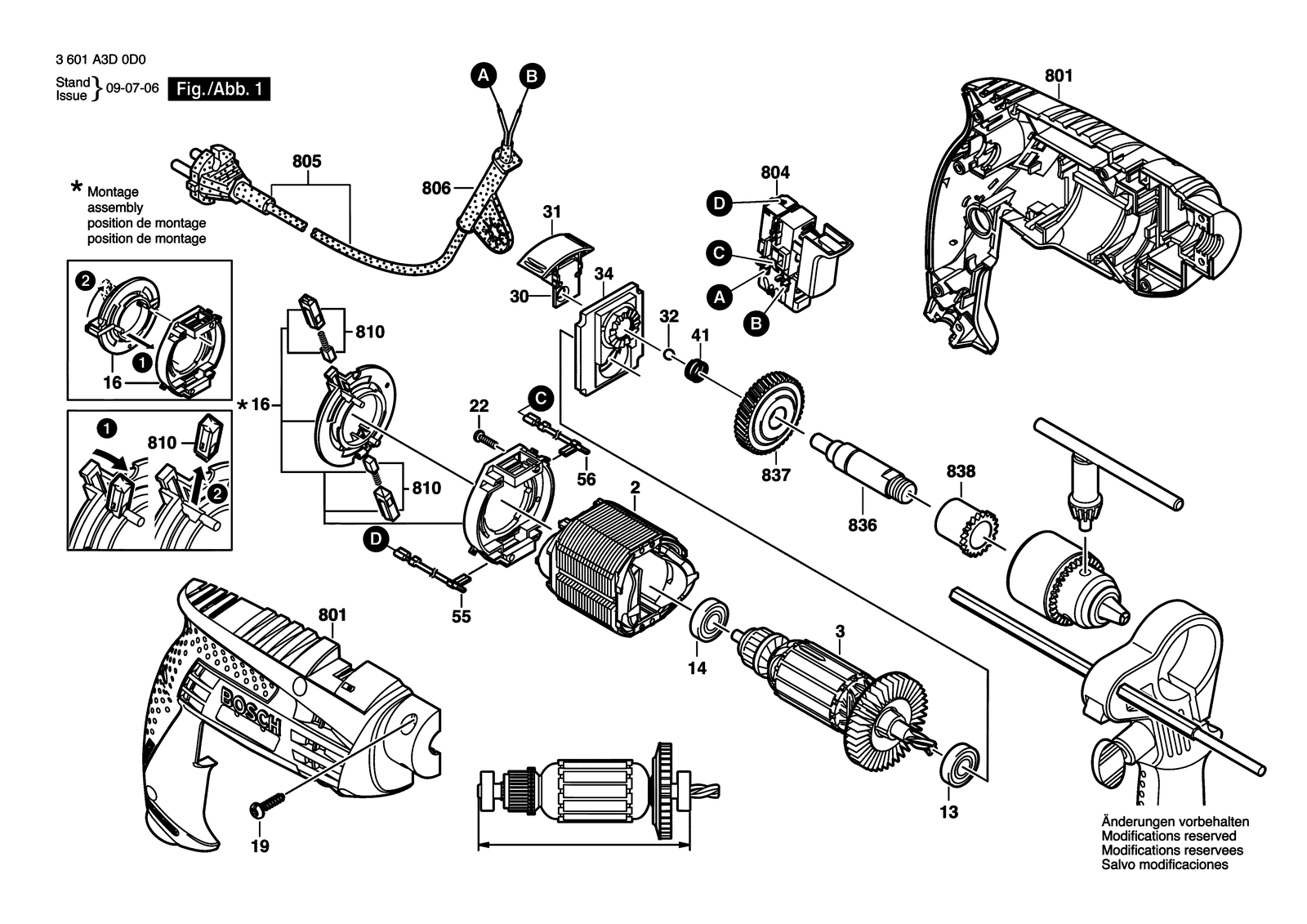

Bosch GSB 13 parts diagram, sheet 1
No.Part numberPart name
133130900020Groove ball bearing 8X22X7 608-2Z/C3
142609110153Ball Bearing 8X22X7
16F000612063Brush Plate
199618087099Screw 4X16 MM
2F000607007Pole Shoe 127V
2F000607064Field 220-230V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
3F000605037Armature 127V
3F000605099Armature 220-230V
30F000623029Pressure Plate
312609100417Indexing Disk
321903230010Ball DIN 5401-5,5MM-III-ST
34F000613022Bearing Bracket
412604616006Compression Spring
55F000610028Connecting Cable
56F000610031Connecting Cable
801F000601260Motor Housing Blue
804F000608019Switch
805F000609274Power supply cord BR 2,00M 2 X 1,00MM H05 Vvf
805F000609280Power supply cord SAM 2,00M 2 X 1,00MM H05 Vvf
805F000609286Power supply cord AR 2,00M 2 X 0;75MM H05 Vvf
8062600707059Grommet Ø6,9 MM
810F000611030Carbon-Brush Set
836F000619048Spindle
837F000617034Cylindrical Gear
8382600301066Porous Bearing
