Bosch GSB 13 univ. 2speed impact drill: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13: 26 positions on 1 sheet

Bosch GSB 13 parts list (1 sheet)

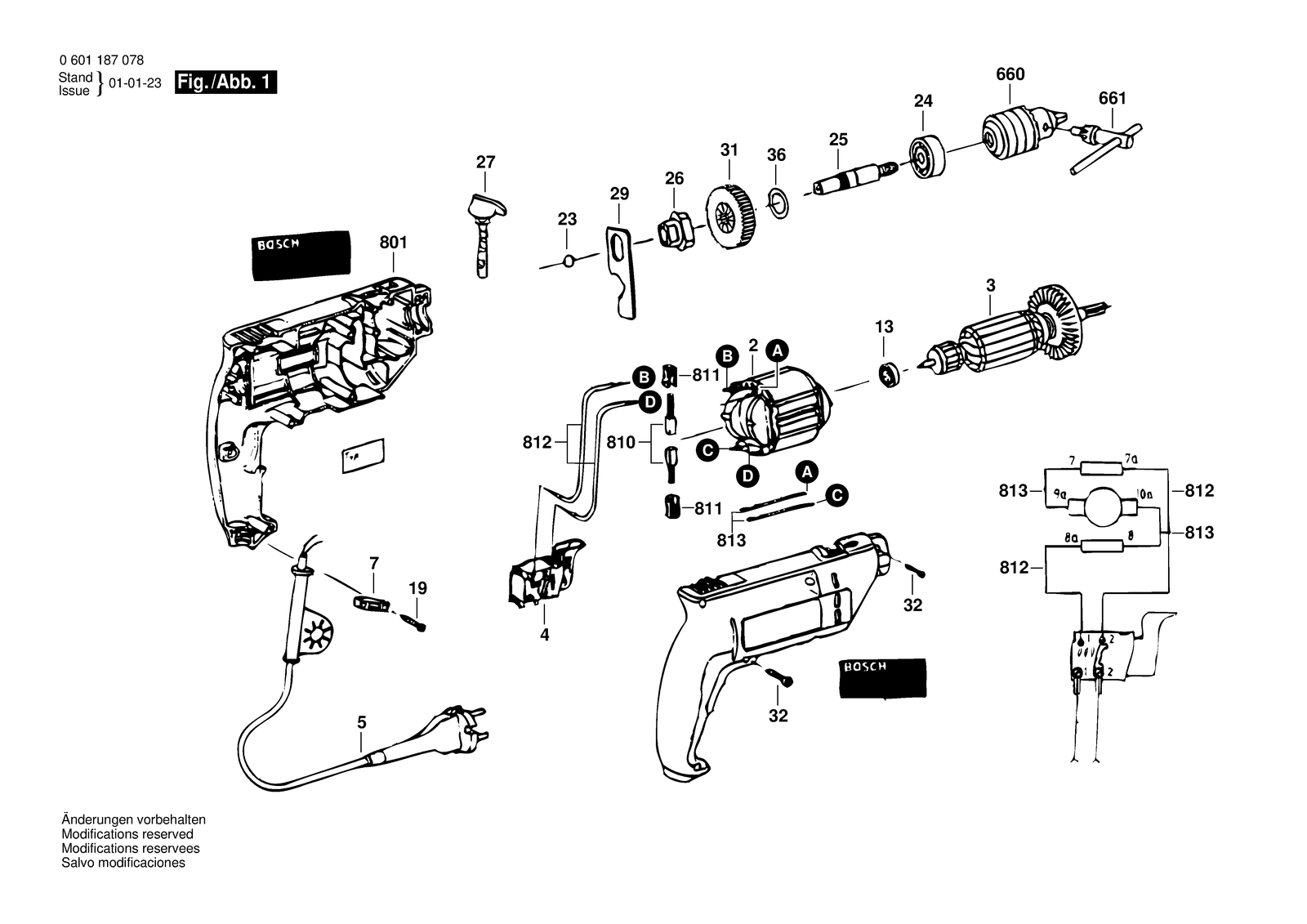

Bosch GSB 13 parts diagram, sheet 1
No.Part numberPart name
131900905029Ball Bearing 8X22X7
199618087099Screw 4X16 MM
29618086999Field 220V
29618087095Pole Shoe 127V
239618083800Ball
249618081609Groove ball bearing
259618087174Drilling Spindle 3/8"
269618087166Locating Washer
27F000600146Shifter Rod
299618087096Switch Slide
39618086702Armature With Fan 127V
39618086807Armature With Fan 220V
319618086704Cylindrical Gear
329618087099Screw 4X16 MM
369618086802Spacer Ring
49618086703Switch
59618087135Power supply cord
59618087136Power supply cord
6601608571079Chuck Ø1,0-10 Mm, 3/8"
661F000632059Chuck Wrench
72601035001Cable Clip
8019618086801Housing
8109618086870Carbon Brush
8119618086695Brush Holder
8122604448018Connecting Cable White L=124 MM
8132604448018Connecting Cable White L=124 MM
