Bosch GSB 13

Bosch GSB 13 percussion drill: exploded parts diagram, 1 sheet, 39 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13: 39 positions on 1 sheet

Bosch GSB 13 parts list (1 sheet)

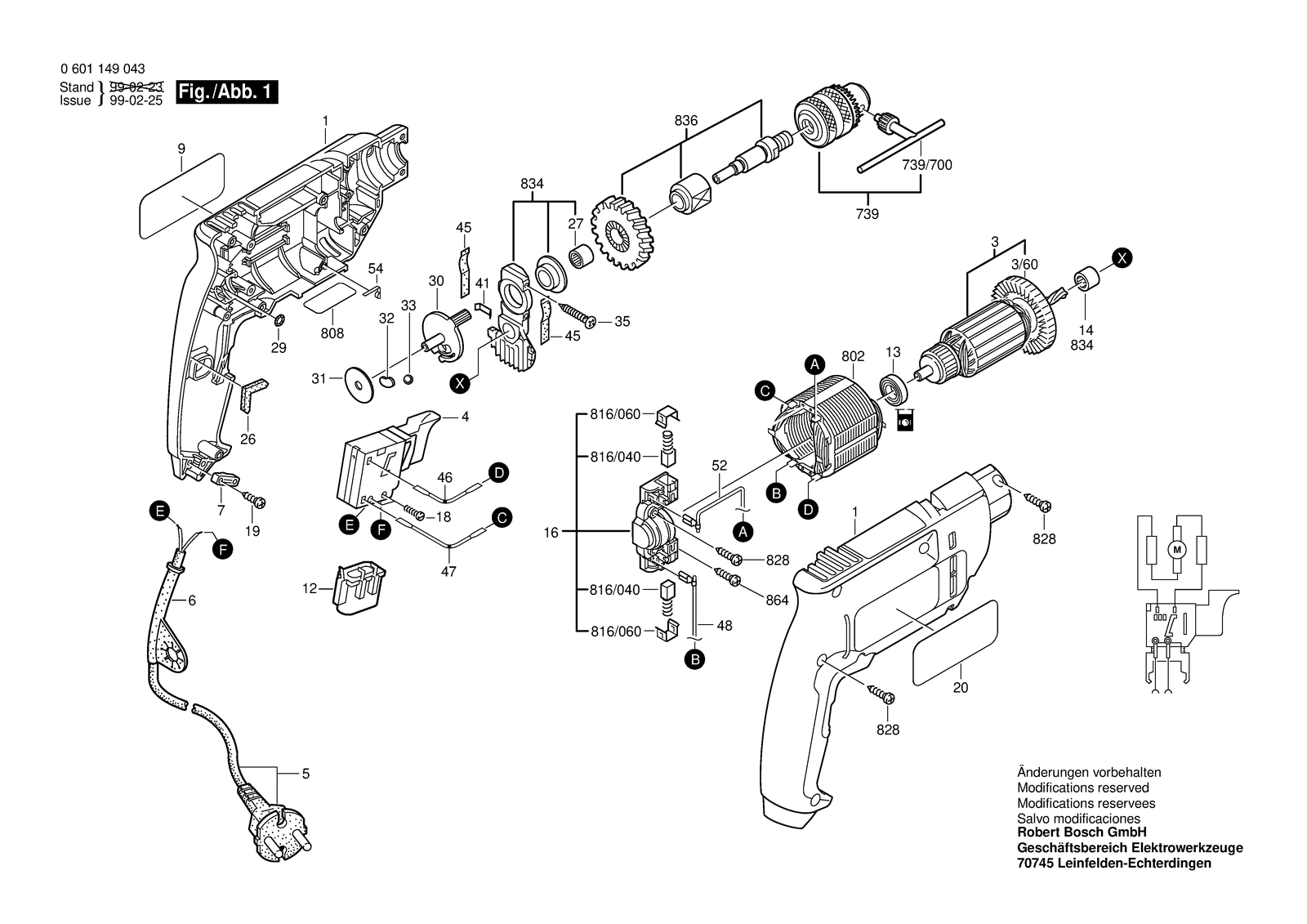

Bosch GSB 13 parts diagram, sheet 1
No.Part numberPart name
12605104553Housing Section Blue
131619P11239Groove ball bearing
141619P00433Needle-Roller Bearing
162609992607Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
191619P00029Screw
202601117285Reference Plate GSB 13 Re
261619P00026Damping Plate
272600917003Needle-Roller Bearing Ø8X8 MM
291900210000O-Ring 5,0X1,5 MM
32604011225Armature With Fan 220-230V
3/601619P11262Fan
302601990000Indexing Disk
312600100034Supporting Disc
322600025005Pressure Plate
331903230011Ball DIN 5401-6 G28
352910951132Oval-Head Screw DIN 7985-M4X25-8.8
42607200365On-Off Switch
412601290014Disc Spring
452600005012Felt
462604448122Connecting Cable White L=162MM
472604448045Cable Black L=98 MM
482604448130Connecting Cable White L=88 MM
51619P00057Power supply cord CN 2,65M 2 X 1,00MM H05 Vv-F
522604448123Connecting Cable White L=73 MM
542601329043Contact Strap
61619P14639Grommet Ø 7MM
62600707059Grommet Ø6,9 MM
72601035001Cable Clip
739/7002607950007Chuck Wrench SG2
8022604220555Field 230V
8081619P00507Nameplate
816/0402604321905Carbon-Brush Set
816/0602601322017Ratchet Cap
8282912401020Tapping Screw DIN 7981-3,9X19-C-Z-ST
8342605807931Bearing Bracket
8362606135930Drilling Spindle 1/2"
8641619P00222Cross Recessed-Head Screw
92601117284Manufacturer's nameplate
