Bosch GSB 13 percussion drill: exploded parts diagram, 1 sheet, 48 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 13: 48 positions on 1 sheet

Bosch GSB 13 parts list (1 sheet)

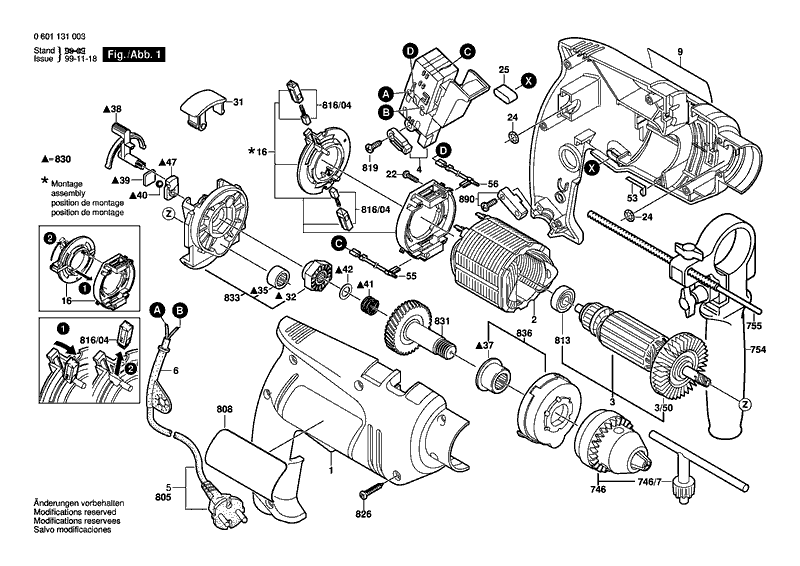

Bosch GSB 13 parts diagram, sheet 1
No.Part numberPart name
12605104733Housing Section
162604337104Brush Plate
22604220601Field 220-240V
22604220654Field 100-110V
222910611002Tapping Screw DIN 7981-ST2,2X9,5-C-H
241900210000O-Ring 5,0X1,5 MM
252601099104Dummy Plug
32604011259Armature 220-230V
32604011262Armature 110V
3/502606610097Fan
312605510189Locking Piece
322600190078Catch Disk
352600914019Needle bearing
372605805009Flanged Bearing
382601990010Indexing Disk Black
392601074004Pressure Plate
42607200526Switch
401903230009Ball DIN 5401-5 G28
412604616006Compression Spring
422600101047Shim 0,3 MM
472608040120Frame
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460207Power supply cord GB 110V 2,65M 2 X 1,0MM H05 Vv-F
532601329043Contact Strap
551614431025Pvc-Insulated Cable L=95 MM
562604448228Pvc-Insulated Cable Blue L=120 MM
62600707066Grommet Ø6,2-Ø6,9X90 MM
7462608571056Key Chuck 1/2"
746/72607950007Chuck Wrench SG2
7541619PB4323Auxiliary Handle
7551613001009Depth-Gauge SW 6X210 MM
8051607000385Power supply cord EU 2,6M 2 X 1,0 MM
8082601117505Marking Plate
8082601117521Nameplate
8082601117523Nameplate
8082601117528Marking Plate
8082601117545Marking Plate
8132600905032Ball Bearing 7X19X6
816/042607014017Carbon-Brush Set
816/042609160125Carbon-Brush Set
8192603490017Torx Oval-Head Screw 3X10
8262603490022Screw 4X16
8302606200094Gear Unit
8312606135933Drilling Spindle
8332605807933Bearing Bracket
8362605808925Gear Cover
8902607001305Fastening parts kit
92601116651Manufacturer's nameplate
