Bosch GSB 12 VSP-2

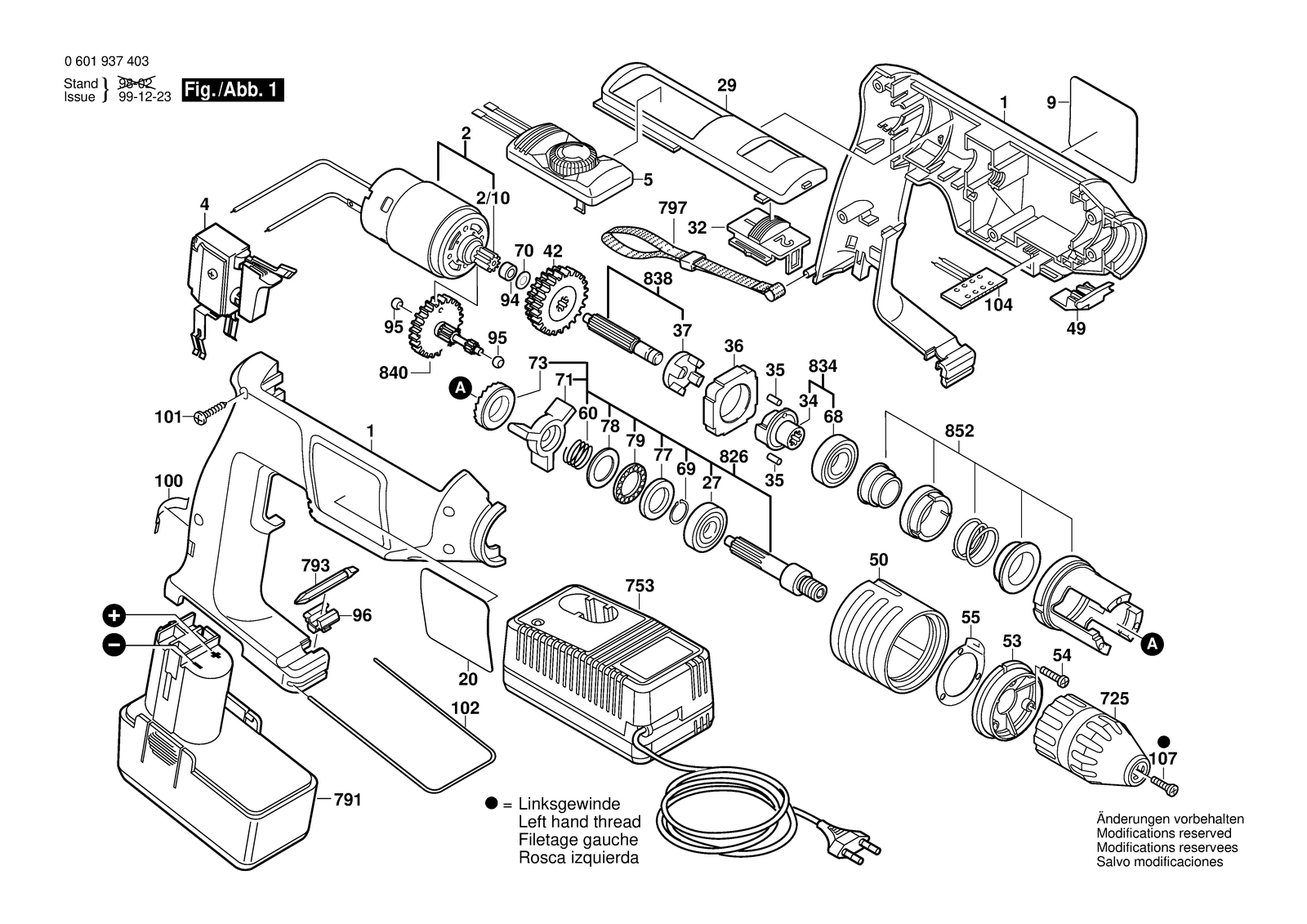

Bosch GSB 12 VSP-2 cordless impact drill: exploded parts diagram, 1 sheet, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 12 VSP-2: 61 positions on 1 sheet
Bosch GSB 12 VSP-2 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2605104423 | Housing Section Blue |
| 100 | 2601322016 | Clamp Spring |
| 101 | 2603490022 | Screw 4X16 |
| 102 | 2601329041 | Retaining Bracket |
| 104 | 2608018004 | Contact retainer |
| 107 | 2603421211 | Countersunk-Head Screw Lefthand Threads M6X20 MM |
| 2 | 2607022929 | DC motor 9,6V |
| 2/10 | 2606316144 | Pinion Z=14 |
| 20 | 2601118545 | Sticker Shadow Side |
| 27 | 1900905120 | Groove ball bearing 10X26X8 |
| 29 | 2605510137 | Insert Piece Black |
| 32 | 2601099056 | Adjusting Slide Black |
| 34 | 2602210014 | Eccentric |
| 35 | 2602329024 | Roller Body |
| 36 | 2600202025 | Retaining snap ring |
| 37 | 2606440003 | Carrier |
| 4 | 2607200395 | On-Off Switch |
| 4 | 2607200402 | On-Off Switch |
| 42 | 1609340007 | Cylindrical Gear Z=58/67 |
| 49 | 2605510117 | Insert Piece Black |
| 5 | 2607233030 | Torque Control |
| 5 | 2607233031 | Torque Control Black 12V |
| 50 | 2605190037 | Setting Ring |
| 53 | 2608005046 | Cover Disc |
| 54 | 2603490008 | Thread-forming tap. Screw M4X12 MM |
| 55 | 2600190056 | Catch Disk |
| 60 | 2604618001 | Compression Spring |
| 68 | 1900905122 | Groove ball bearing 15X32X9 |
| 69 | 2916650001 | Spring retaining ring DIN 471-10X1MM-FST |
| 70 | 2600100569 | Shim 1,0 MM |
| 71 | 2600290023 | Backup ring |
| 725 | 2608572062 | Keyless Chuck Ø 2-13 MM,1/2" |
| 73 | 2606490060 | Catch Disk |
| 753 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 753 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 753 | 2607224431 | Fast Charger USA 120/7,2-24V, 1H |
| 753 | 2607224435 | Fast Charger J 100/7,2-24V, 1H |
| 753 | 2607224443 | Fast Charger AUS 240/7,2-14,4V, 1H |
| 753 | 2607224701 | Fast Charger EU 230/7,2-14,4V, 30 Min. |
| 753 | 2607224703 | Fast Charger GB 230/7,2-14,4V, 30 Min. |
| 753 | 2607224705 | Fast Charger AUS 240/7,2-14,4V, 30 Min. |
| 753 | 2607224708 | Fast Charger USA 120/7,2-14,4V, 30 Min. |
| 753 | 2607224711 | Fast Charger J 100/7,2-14,4V, 30 Min. |
| 77 | 2600190064 | Corrugated Washer |
| 78 | 2600101516 | Thrust Bearing Disc |
| 79 | 2600923003 | Ball Cage |
| 791 | 2607335039 | Slide-In Accu Package 12V, 1,7AH, Nicd |
| 791 | 2607335148 | Slide-In Accu Package 12V,2,0AH,NICD |
| 791 | 2607336145 | Slide-In Accu Package 12V, 1,5AH, Nicd |
| 793 | 2608521018 | Screwdriver Blade |
| 797 | 2601398009 | Carrying Loop |
| 826 | 2606309928 | Drilling Spindle Lefthand Threads 1/2", M 6 |
| 834 | 2602210014 | Eccentric |
| 838 | 2606309918 | Splined Shaft |
| 840 | 2606308914 | Toothed Shaft Z= 10/19/63 |
| 852 | 2600499903 | Guide Sleeve |
| 9 | 2601118544 | Sticker Sunny Side |
| 9 | 2601119535 | Manufacturer's nameplate |
| 94 | 2600301011 | Sintered-Metal Bushing |
| 95 | 2600302013 | Sintered-Metal Bushing |
| 96 | 2608040131 | Support |
