All parts of Bosch GSB 12 VE-2: 28 positions on 1 sheet

Bosch GSB 12 VE-2 parts list (1 sheet)

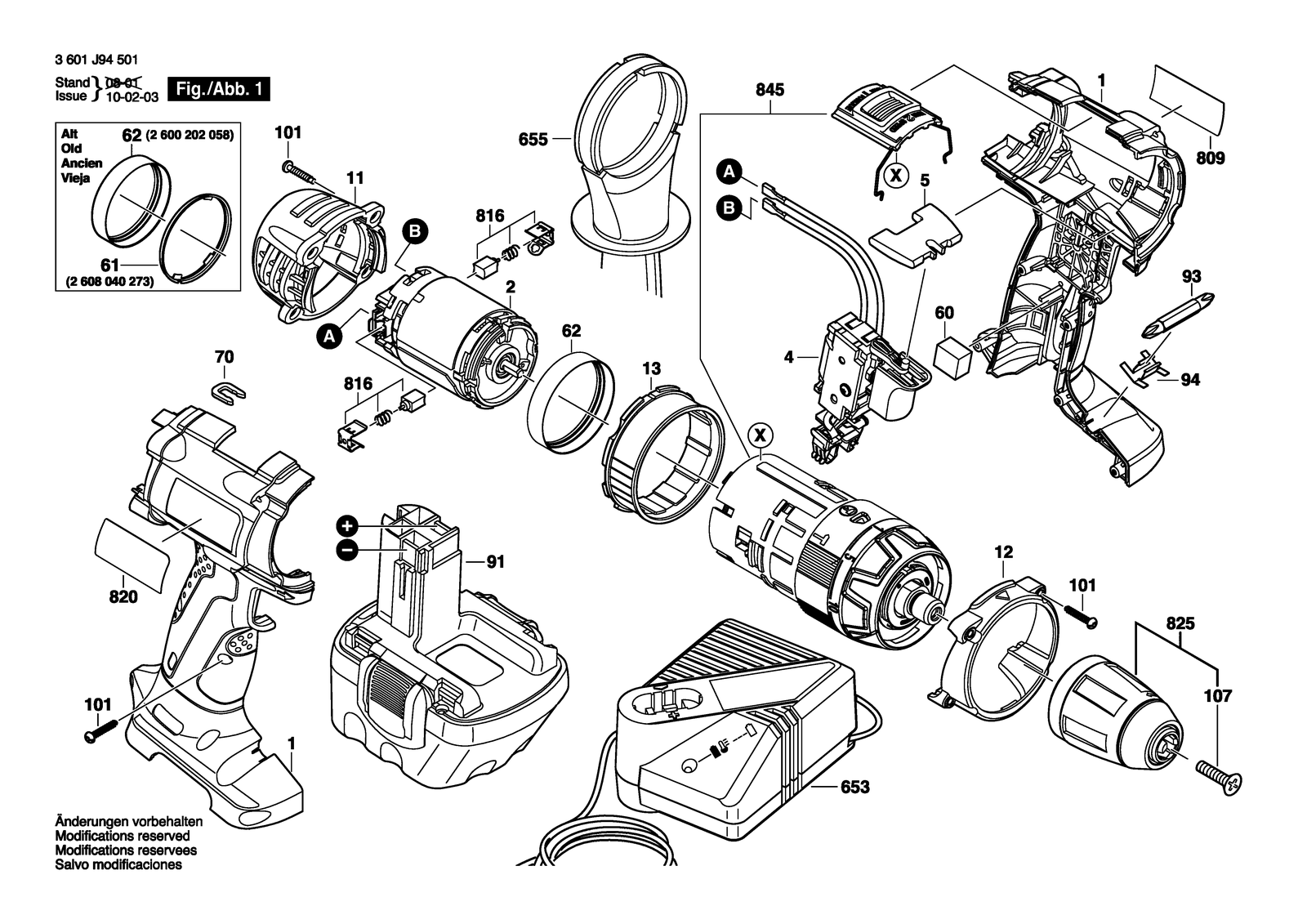

Bosch GSB 12 VE-2 parts diagram, sheet 1
No.Part numberPart name
12605105100Housing Section Blue
1012603490018Torx Oval-Head Screw 3X18
1072603421229Countersunk-Head Screw Lefthand Threads M6X23
112600508064End cap Black
122600510011Front Cap
132600510012Locating ring
22607022318DC motor 12V
42607230130Electronics Module
52601099155Adjusting lever Red
602601039020Damping Element
622600202067Retaining snap ring
6532607224493Fast Charger J 100/7,2-24V, 15 Min.
6532607224701Fast Charger EU 230/7,2-14,4V, 30 Min.
6532607224703Fast Charger GB 230/7,2-14,4V, 30 Min.
6532607224705Fast Charger AUS 240/7,2-14,4V, 30 Min.
6532607224713Fast Charger ROK 220/7,2-14,4V, 30 Min.
6552602025158Auxiliary Handle
702601250009Pickup Clip
8092601115006Manufacturer's nameplate GSB 12 VE-2
8161607000488Carbon-Brush Set 10 X 2 607 034 904
8162607034904Carbon-Brush Set
8202601115718Nameplate
8252608572901Keyless Chuck
8452606200255Planetary Gear Train
912607335683Battery Pack 12V,2,6AH,NIMH
912607335691Slide-In Accu Package 12V,3,0AH, Nimh
931609200147Screwdriver Blade 6 MM
942604690043Spring Element
