Bosch GSB 12-2

Bosch GSB 12-2 cordl perc screwdr: exploded parts diagram, 1 sheet, 28 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 12-2: 28 positions on 1 sheet

Bosch GSB 12-2 parts list (1 sheet)

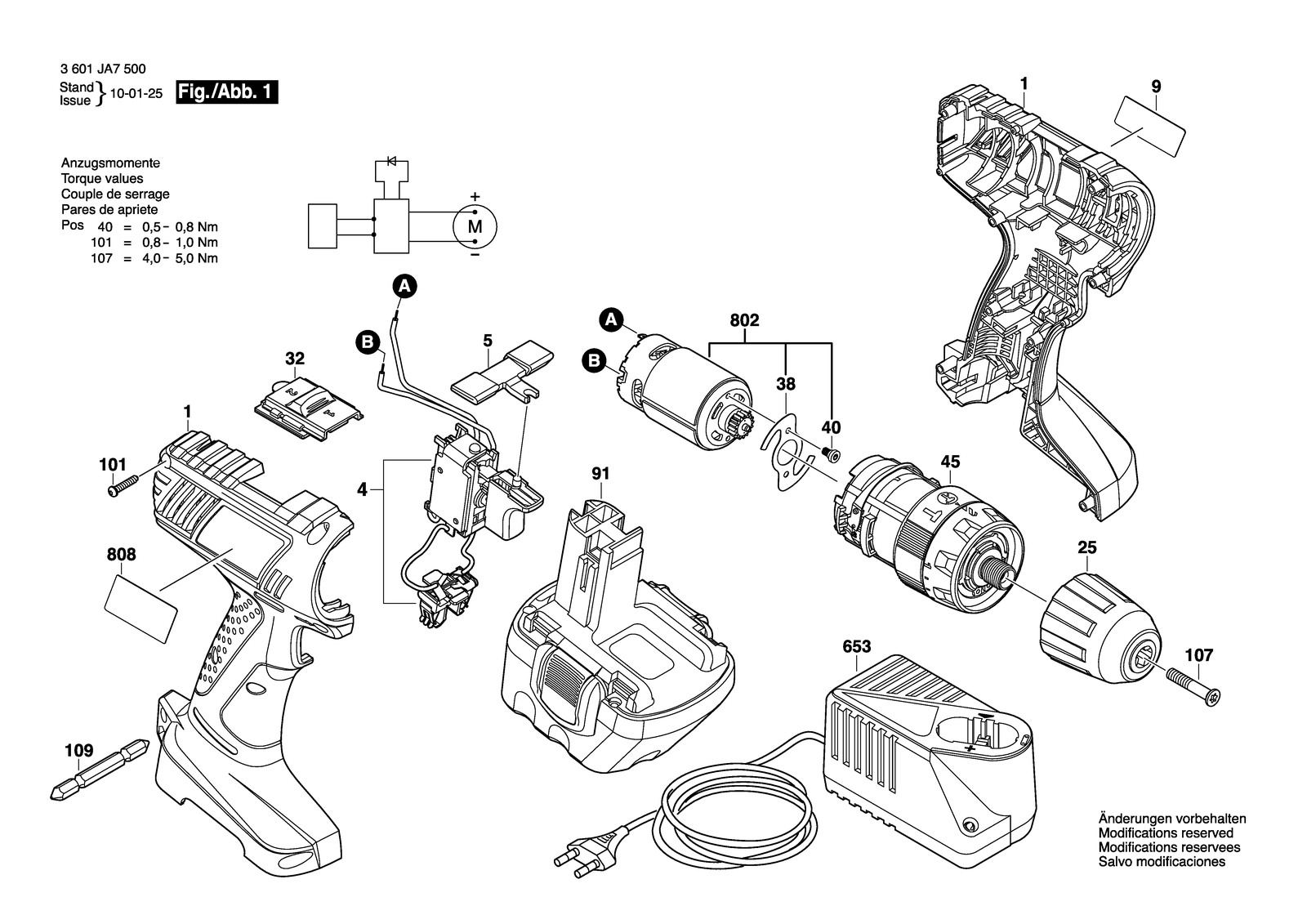

Bosch GSB 12-2 parts diagram, sheet 1
No.Part numberPart name
12609100834Housing Blue
1012609110201Torx Flat-Head Screw 3X16
1072609110635Pan head screw M 6X30
1092609110342Screwdriver Blade
252609110973Keyless Chuck
322609199251Slide Switch
382609110801Tab Washer
42607202069Switch
402609110802Screw
452609199266Gear Box
52609100837Change-Over Switch
6532607224391Fast Charger EU 230/7,2-14,4V, 1H
6532607224393Fast Charger GB 230/7,2-14,4V, 1H
6532607224397Fast Charger USA 120/7,2-14,4V, 1H
6532607224401Fast Charger ROK 220/7,2-14,4V, 1H
6532607224727Fast Charger CN 220/7,2-14,4V, 1H
6532607224977Fast Charger BR 127/7,2-14,4V, 1H
6532607224979Fast Charger BR 220/7,2-14,4V, 1H
6532607225317Fast Charger AR 230/7,2-14,4, 1H
8022609199393Motor Spare Parts Set
8082609132758Nameplate
8082609132759Nameplate
8082609132760Nameplate
8082609132761Nameplate
8082609132762Nameplate
8082609135915Nameplate
92609132764Manufacturer's nameplate GSB 12-2
911617S00N7FSlide-In Accu Package 12V, 1,5AH, Nicd
