Bosch GSB 10 RE

Bosch GSB 10 RE percussion drill: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 10 RE: 43 positions on 1 sheet

Bosch GSB 10 RE parts list (1 sheet)

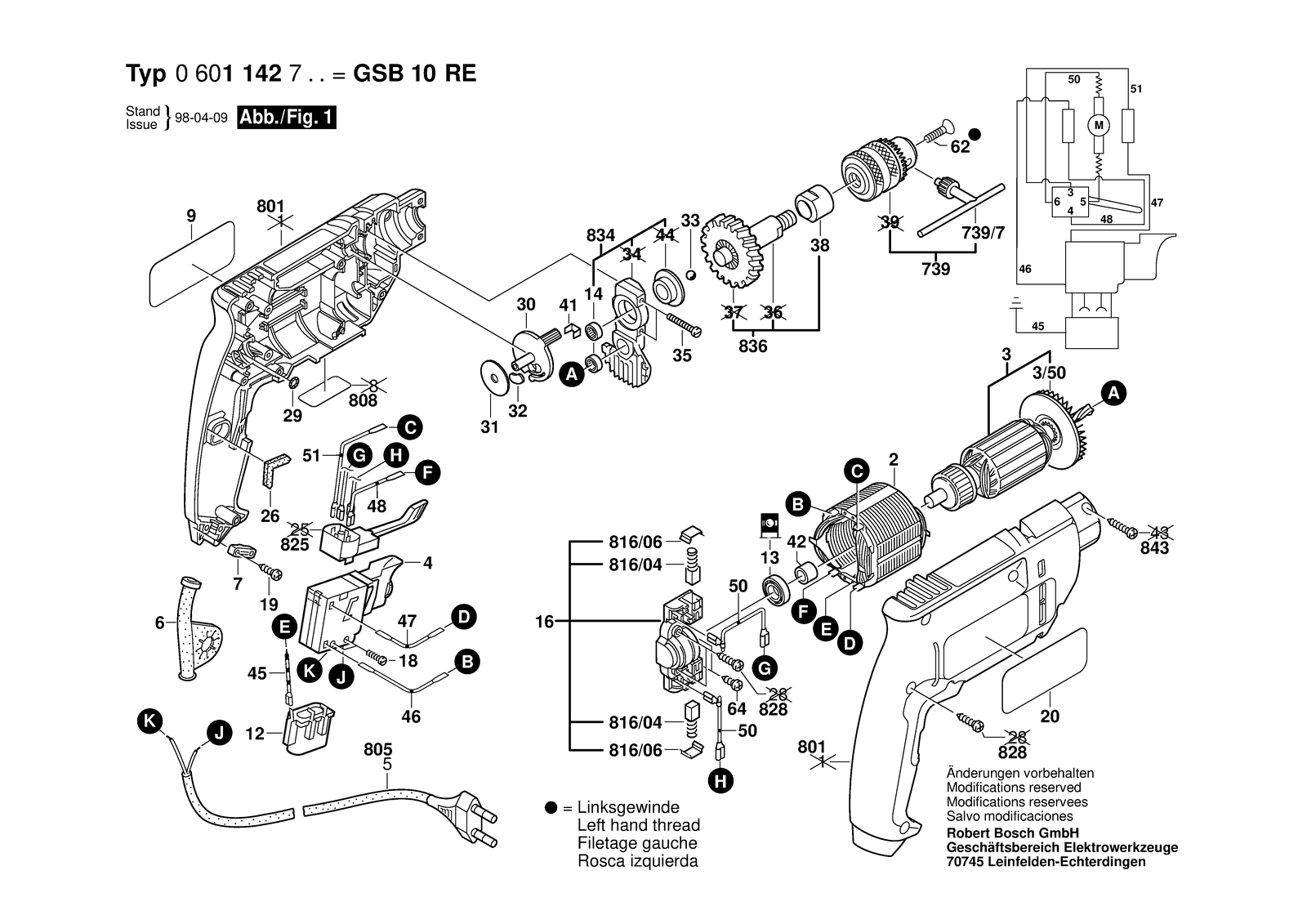

Bosch GSB 10 RE parts diagram, sheet 1
No.Part numberPart name
132600905032Ball Bearing 7X19X6
142600917003Needle-Roller Bearing Ø8X8 MM
162609992617Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
22604220423Field 220-240V
202601130161Reference Plate Shadow Side
262601022000Damping Plate
291900210000O-Ring 5,0X1,5 MM
32604010707Armature 220-240V
3/501619P11262Fan
302601990000Indexing Disk
312600100034Supporting Disc
322600025005Pressure Plate
331903230011Ball DIN 5401-6 G28
352910951132Oval-Head Screw DIN 7985-M4X25-8.8
382600301013Sintered-Metal Bushing
42607200357Switch
412601290014Disc Spring
422600209004Spacer Ring
462604448060Cable White L=173 MM
472604448045Cable Black L=98 MM
482604448203Connecting Cable
52604460147Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
502604448115Connecting Cable White L=73 MM
512604448132Connecting Cable Blue L=103 MM
62600707059Grommet Ø6,9 MM
622603421211Countersunk-Head Screw Lefthand Threads M6X20 MM
642910611007Tapping Screw DIN 7981-B2,9X16-C-H
72601035001Cable Clip
7391608571061Key Chuck 1/2"-20 Unf
739/72607950007Chuck Wrench SG2
8012605104659Housing Section Blue
808160111A3H3Nameplate
816/042604321916Carbon-Brush Set
816/062601322013Ratchet Cap
816/062601329051Ratchet Cap
8252607200231Change-Over Switch
8282910611020Tapping Screw DIN 7981-ST3,9X19-C-H
8342605807917Bushing
8362606135923Drilling Spindle 1/2"-24 UNF-2A
8432910611006Tapping Screw DIN 7981-ST2,9X13-C-H
92601130162Manufacturer's nameplate Shadow Side
