Bosch GSB 10

Bosch GSB 10 percussion drill: exploded parts diagram, 1 sheet, 26 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 10: 26 positions on 1 sheet

Bosch GSB 10 parts list (1 sheet)

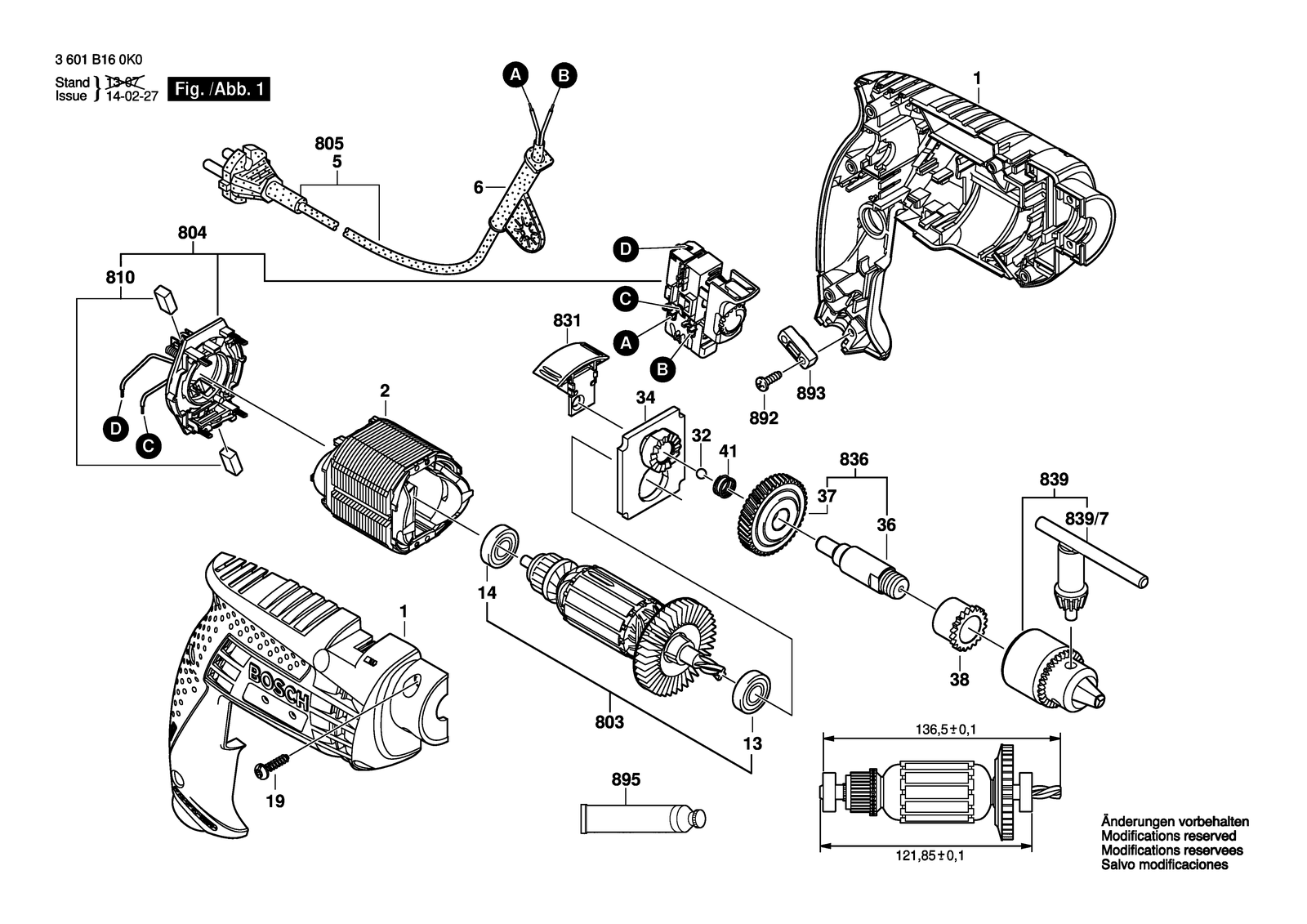

Bosch GSB 10 parts diagram, sheet 1
No.Part numberPart name
12609100414Housing
132609110153Ball Bearing 8X22X7
142609110491Ball Bearing
192603490022Screw 4X16
22604220718Field 230V
321903230010Ball DIN 5401-5,5MM-III-ST
342609199073Bearing Bracket
362609110440Spindle
372606320092Conversion Gear
382609110442Sintered-Metal Bushing
412604616006Compression Spring
51604460262Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
52604460243Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F
52604460245Power supply cord CN 220V 2,65M 2 X 0,75MM H05 Vv-F
52604460283Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F
62600707059Grommet Ø6,9 MM
8032609120232Armature 220-240V
8042609199664Switch
8102610391290Carbon-Brush Set
8312609160127Change-Over Switch
8362609160122Drilling Spindle
8391608571079Chuck Ø1,0-10 Mm, 3/8"
839/72607950007Chuck Wrench SG2
8922603490022Screw 4X16
8932601035001Cable Clip
8953605430003Grease Tube Albida
