Bosch GSB 10

Bosch GSB 10 percussion drill: exploded parts diagram, 1 sheet, 38 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSB 10: 38 positions on 1 sheet

Bosch GSB 10 parts list (1 sheet)

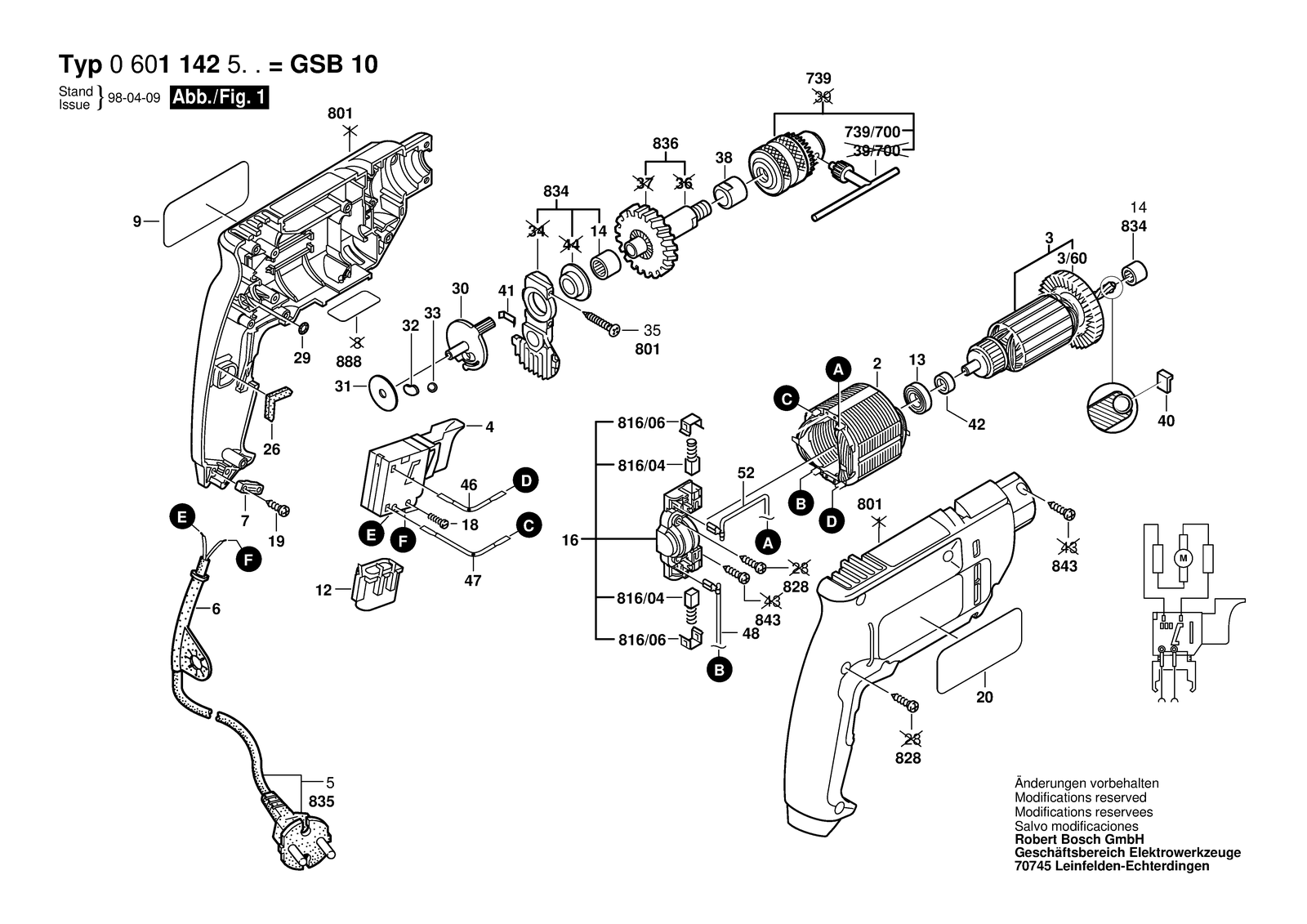

Bosch GSB 10 parts diagram, sheet 1
No.Part numberPart name
132600905046Groove ball bearing 8X19X6
142600917003Needle-Roller Bearing Ø8X8 MM
162609992617Brush Plate
182603410001Socket head cap screw M3X6,5-4.8
192910611019Tapping Screw DIN 7981-ST3,9X16-C-H
22604220423Field 220-240V
202609130161Reference Plate
262601022000Damping Plate
291900210000O-Ring 5,0X1,5 MM
32604011243Armature With Fan 220-240V
3/601619P11262Fan
302601990000Indexing Disk
312600100034Supporting Disc
322600025005Pressure Plate
331903230011Ball DIN 5401-6 G28
352910951132Oval-Head Screw DIN 7985-M4X25-8.8
382600301013Sintered-Metal Bushing
42607200260Switch
412601290014Disc Spring
462604448060Cable White L=173 MM
472604448045Cable Black L=98 MM
482604448130Connecting Cable White L=88 MM
51604460260Power supply cord GB 230V 2,65M 2 X 0,75MM H05 Vv-F
522604448123Connecting Cable White L=73 MM
62600707059Grommet Ø6,9 MM
72601035001Cable Clip
7391608571047Key Chuck Ø 1-10 Mm, 3/8"
739/7002607950007Chuck Wrench SG2
8012605104659Housing Section Blue
816/042604321916Carbon-Brush Set
816/062601322013Ratchet Cap
816/062601329051Ratchet Cap
8282910611020Tapping Screw DIN 7981-ST3,9X19-C-H
8342605807917Bushing
8362606135909Drilling Spindle Z=45
8432910611006Tapping Screw DIN 7981-ST2,9X13-C-H
888160111A3H3Nameplate
92609130160Manufacturer's nameplate Sunny Side
