Bosch GSA 900

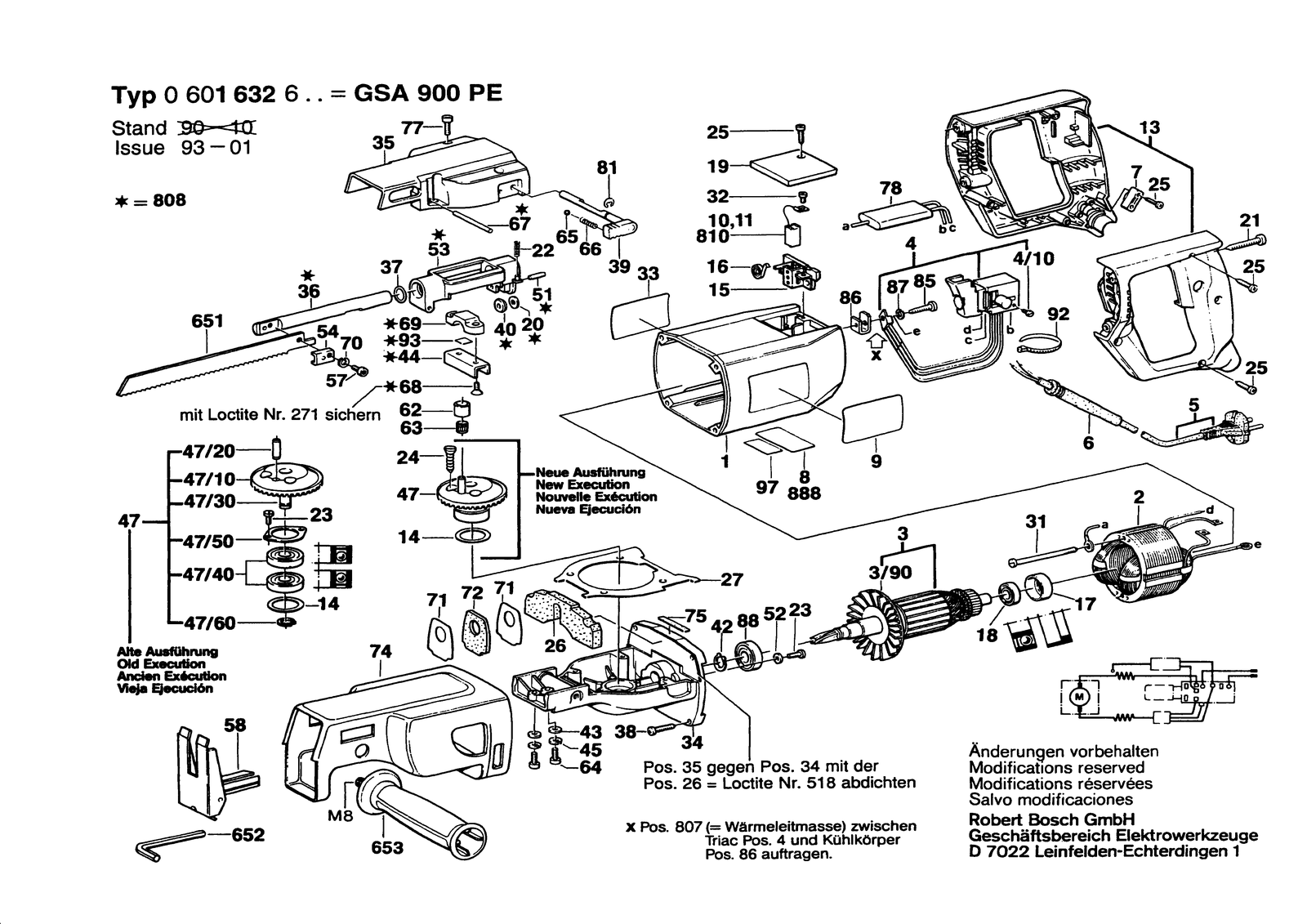

Bosch GSA 900 reciprocating saw: exploded parts diagram, 1 sheet, 88 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSA 900: 88 positions on 1 sheet
Bosch GSA 900 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108545 | Motor Housing Blue |
| 13 | 3605133513 | Handle Black |
| 13 | 3605133524 | Handle |
| 14 | 3600102502 | Shim washer |
| 15 | 1604336017 | Brush Holder |
| 16 | 1604652006 | Spiral Spring |
| 17 | 3600206501 | Rubber Bushing |
| 18 | 3600900503 | Groove ball bearing |
| 19 | 3605500560 | Sealing cap Black |
| 2 | 3604220540 | Field 220V |
| 2 | 3604220549 | Field 240V |
| 2 | 3604220550 | Field 100V |
| 20 | 3600100521 | Shim |
| 21 | 2910611035 | Tapping Screw DIN 7981 ST4,8X22-C-H |
| 22 | 3604625501 | Compression Spring |
| 23 | 2914435049 | Thread-forming tap. Screw |
| 24 | 2914435049 | Thread-forming tap. Screw |
| 25 | 2910611419 | Tapping Screw DIN 7981-ST 3,9X16-C-H |
| 26 | 3601016508 | Seal |
| 27 | 3601016506 | Sealing Plate |
| 3 | 3604011553 | Armature 220V |
| 3 | 3604011580 | Armature 240V |
| 3 | 3604011581 | Armature 100V |
| 3/90 | 3606610516 | Fan |
| 31 | 1613435009 | Tapping Screw ST-4,8X57,5-TORX,T20 |
| 32 | 2910951118 | Oval-Head Screw DIN 7985-M4X8-8.8-H |
| 33 | 2610907118 | Reference Plate |
| 35 | 3605500555 | Gear Cover |
| 36 | 3603080501 | Tie Rod |
| 37 | 3600210504 | O-Ring |
| 38 | 2914201529 | Torx Oval-Head Screw |
| 39 | 3602026500 | Control Lever |
| 4 | 3607200514 | Switch |
| 4 | 3607200516 | Switch |
| 40 | 3606625546 | Roller |
| 42 | 3600118501 | Spring retaining ring |
| 43 | 2916011013 | Plain Washer DIN 433-6,4-ST 50 |
| 44 | 3601321534 | Yoke |
| 45 | 2916690005 | Spring Lock Washer M6 |
| 47 | 3606100518 | Parts Set |
| 5 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 3604460584 | Power supply cord AUS 4,25M 2 X 1,0MM Pvc |
| 5 | 3604460587 | Power supply cord CH 4,25M 2 X 1,0MM H07RN-F |
| 5 | 3604460592 | Power supply cord USA 5M 2 X 1,25MM Pvc |
| 5 | 3604460610 | Power supply cord 4,25M 2 X 1,5MM H05RN-F |
| 51 | 3603024501 | Bearing bolt |
| 52 | 2916201002 | Plain Washer DIN 7349-4,3-ST |
| 53 | 2610911055 | Bearing Pedestal |
| 54 | 3600690504 | Terminal Plate |
| 57 | 2910405154 | Hex Socket Head Cap Screw DIN 912-M5X12-12.9 |
| 58 | 3608000501 | Base Plate |
| 6 | 3600703510 | Grommet |
| 6 | 3600707503 | Grommet Ø 9,4 MM |
| 62 | 3606625547 | Bearing Sleeve |
| 63 | 3600917500 | Needle-Roller Assembly |
| 64 | 2910131197 | Hex Socket Head Cap Screw DIN 7984-M6X16-8.8 |
| 65 | 3603230500 | Ball Ø 4 MM |
| 651 | 2608650617 | Saw Blade Set S 1111 K |
| 651 | 2608651783 | Saw Blade Set S 518 A |
| 651 | 2608656014 | Saw Blade Set |
| 651 | 3608650511 | Saw Blade Set |
| 652 | 3607000556 | Parts Set |
| 653 | 3602025500 | Auxiliary Handle Black M8X20 MM |
| 66 | 3604610503 | Compression Spring |
| 67 | 3603024502 | Swivelling Axis |
| 68 | 3603421519 | Countersunk-Head Screw M 5X10 MM |
| 69 | 3608040507 | Holding Piece |
| 7 | 2601035001 | Cable Clip |
| 70 | 2916683006 | Spring Lock Washer DIN 127-B 5 |
| 71 | 3605510539 | Dust Protection |
| 72 | 3601005504 | Scale |
| 74 | 3605510531 | Insulating Housing |
| 74 | 3605510532 | Insulating Housing |
| 77 | 3603410505 | Thread-forming tap. Screw |
| 78 | 3607328508 | Suppression Filter |
| 78 | 3607328517 | Suppression Filter |
| 808 | 3607000549 | Parts Set |
| 81 | 3600149500 | Locking washer |
| 810 | 1607014126 | Carbon-Brush Set |
| 85 | 3603415561 | Thread-forming tap. Screw Ø 3,5X20 MM |
| 86 | 3605715500 | Heat Sink |
| 87 | 3600151505 | Locking washer DIN 433-5,3-ST |
| 88 | 1600905007 | Groove ball bearing 12X32X10 |
| 888 | 160111A3H3 | Nameplate |
| 9 | 2610907117 | Manufacturer's nameplate |
| 92 | 3604736500 | Cable Strap |
| 93 | 3600102504 | Shim washer |
| 97 | 1601110265 | Reference Plate |
