Bosch GSA 24 VE

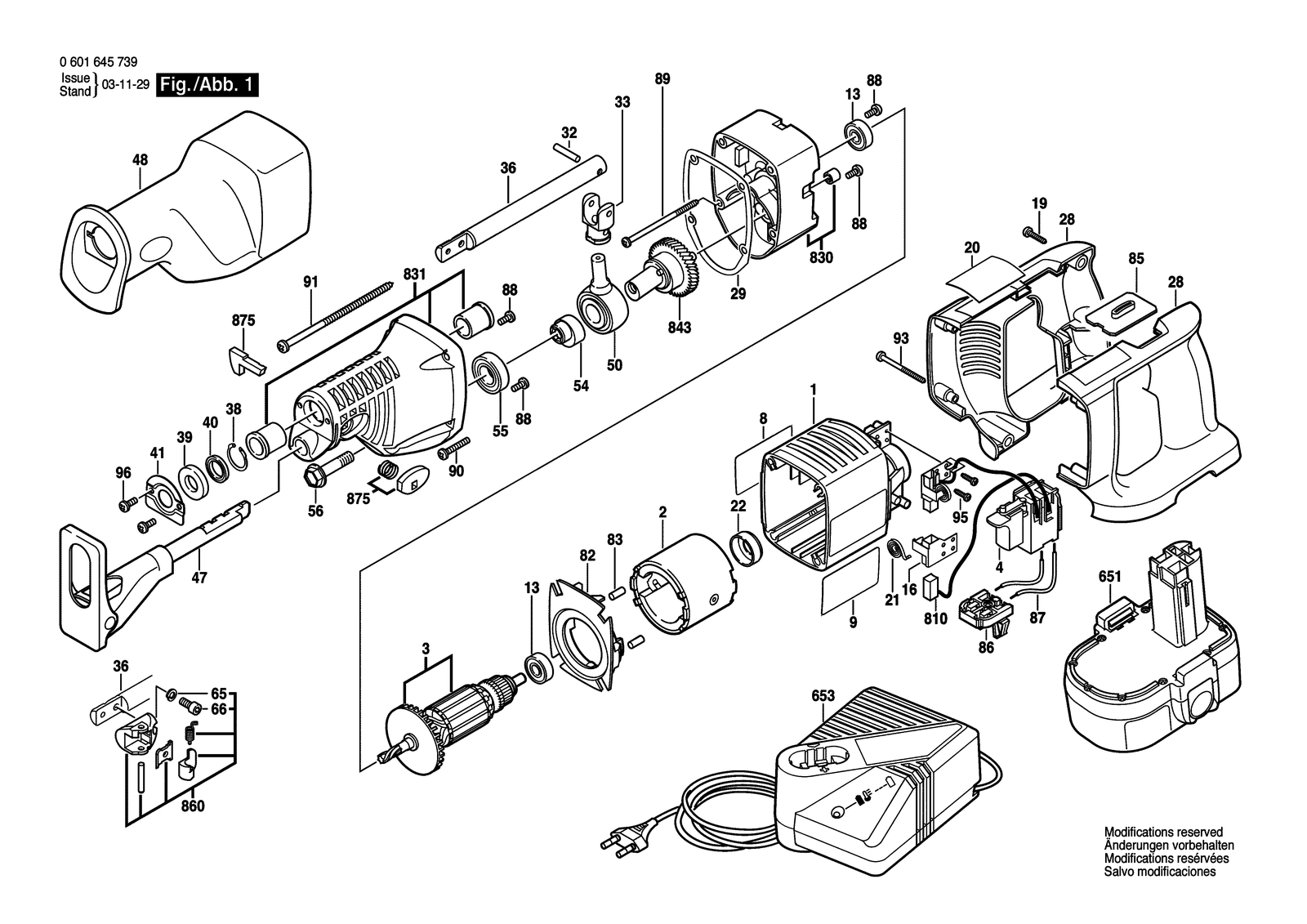

Bosch GSA 24 VE cordl reciprocating saw: exploded parts diagram, 1 sheet, 112 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSA 24 VE: 112 positions on 1 sheet
Bosch GSA 24 VE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610995800 | Motor Housing |
| 1 | 2610995800 | Motor Housing |
| 13 | 1619P01511 | Ball Bearing |
| 13 | 1619P01511 | Ball Bearing |
| 16 | 2610995803 | Brush Holder |
| 16 | 2610995803 | Brush Holder |
| 19 | 2610315386 | Screw ST3,9X19 |
| 19 | 2610315386 | Screw ST3,9X19 |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 2 | 2610942109 | Pole housing 14;4-24V |
| 20 | 2610907680 | Reference Plate |
| 20 | 2610913151 | Warning Label |
| 20 | 2610997886 | Label |
| 21 | 1619P14306 | Spiral Spring |
| 21 | 1619P14306 | Spiral Spring |
| 22 | 2610990845 | Plain Washer |
| 22 | 2610990845 | Plain Washer |
| 28 | 2610917454 | Handle |
| 28 | 2610917454 | Handle |
| 28 | 2610917458 | Handle |
| 29 | 2610995849 | Sealing disk |
| 29 | 2610995849 | Sealing disk |
| 3 | 2610909088 | Armature |
| 3 | 2610909088 | Armature |
| 3 | 2610909089 | Armature |
| 32 | 2917530101 | Straight Pin DIN 6325-4M6X24 |
| 32 | 2917530101 | Straight Pin DIN 6325-4M6X24 |
| 33 | 2610995810 | Fork |
| 33 | 2610995810 | Fork |
| 36 | 2610912954 | Connecting Rod |
| 36 | 2610912954 | Connecting Rod |
| 38 | 2610027867 | Retaining snap ring |
| 38 | 2610027867 | Retaining snap ring |
| 39 | 2610030004 | Felt Washer SP 14,0 |
| 39 | 2610030004 | Felt Washer SP 14,0 |
| 4 | 2610995801 | On-Off Switch |
| 4 | 2610995801 | On-Off Switch |
| 40 | 2610995815 | Shaft Seal |
| 40 | 2610995815 | Shaft Seal |
| 41 | 2610995816 | Bearing cover |
| 41 | 2610995816 | Bearing cover |
| 47 | 2610995821 | Base Plate |
| 47 | 2610995821 | Base Plate |
| 48 | 2610995826 | Insulating Cap |
| 48 | 2610995826 | Insulating Cap |
| 50 | 2610995840 | Wobble Plate |
| 50 | 2610995840 | Wobble Plate |
| 54 | 2610995827 | Sleeve |
| 54 | 2610995827 | Sleeve |
| 55 | 2610015361 | Groove ball bearing |
| 55 | 2610015361 | Groove ball bearing |
| 56 | 2610995829 | Bolt |
| 56 | 2610995829 | Bolt |
| 65 | 2916683006 | Spring Lock Washer DIN 127-B 5 |
| 65 | 2916683006 | Spring Lock Washer DIN 127-B 5 |
| 651 | 2607335445 | Battery Pack 24V,2,0AH,NICD |
| 651 | 2607335561 | Battery Pack 24V,2,6AH,NIMH |
| 651 | 2607335451 | Slide-In Accu Package 24V, 2,4AH, Nicd |
| 651 | 2607335717 | Accumulator package 18V,2,4AH, Hd |
| 653 | 2607224425 | Fast Charger EU 230/7,2-24V, 1H |
| 653 | 2607224427 | Fast Charger GB 230/7,2-24V, 1H |
| 653 | 2607224429 | Fast Charger AUS 240/7,2-24V, 1H |
| 653 | 2607225029 | Fast Charger GB 230/7,2-24V, 30 Min. |
| 653 | 2607225033 | Fast Charger USA 120/7,2-24V, 30 Min. |
| 66 | 2910131152 | Hex Socket Head Cap Screw M 5X10 |
| 66 | 2910131152 | Hex Socket Head Cap Screw M 5X10 |
| 8 | 2610907678 | Nameplate |
| 8 | 2610907683 | Warning Label |
| 8 | 2610913336 | Dummy |
| 8 | 2610997888 | Linkage |
| 8 | 2610997889 | Nameplate |
| 810 | 2610918932 | Carbon-Brush Set |
| 810 | 2610918932 | Carbon-Brush Set |
| 82 | 2610995833 | Baffle |
| 82 | 2610995833 | Baffle |
| 83 | 3602391503 | Rubber Buffer |
| 83 | 3602391503 | Rubber Buffer |
| 830 | 2610995813 | Pivot Plate |
| 830 | 2610995813 | Pivot Plate |
| 831 | 2610995814 | Front Housing |
| 831 | 2610995814 | Front Housing |
| 843 | 2610995817 | Helical Gear |
| 843 | 2610995817 | Helical Gear |
| 85 | 2610995835 | Selective Switch |
| 85 | 2610995835 | Selective Switch |
| 86 | 1609280362 | Contact retainer |
| 86 | 1609280362 | Contact retainer |
| 860 | 2610995820 | Blade Holder |
| 860 | 2610995820 | Blade Holder |
| 87 | 2610907407 | Cable |
| 87 | 2610907407 | Cable |
| 875 | 2610995825 | Sealing plate |
| 875 | 2610995825 | Sealing plate |
| 88 | 2610907504 | Screw |
| 88 | 2610907504 | Screw |
| 89 | 2610991306 | Tapping Screw |
| 89 | 2610991306 | Tapping Screw |
| 9 | 2610907679 | Manufacturer's nameplate |
| 9 | 2610913150 | Manufacturer's nameplate |
| 9 | 2610997890 | Manufacturer's nameplate |
| 9 | 2610997892 | Manufacturer's nameplate |
| 90 | 2610908547 | Tapping Screw |
| 90 | 2610908547 | Tapping Screw |
| 90 | 2610992551 | Tapping Screw |
| 91 | 2610995848 | Tapping Screw |
| 91 | 2610995848 | Tapping Screw |
| 93 | 1619P01446 | Screw |
| 93 | 1619P01446 | Screw |
| 95 | 2610914920 | Tapping Screw |
| 95 | 2610914920 | Tapping Screw |
| 96 | 1619P01491 | Screw |
| 96 | 1619P01491 | Screw |
