Bosch GSA 185-LI

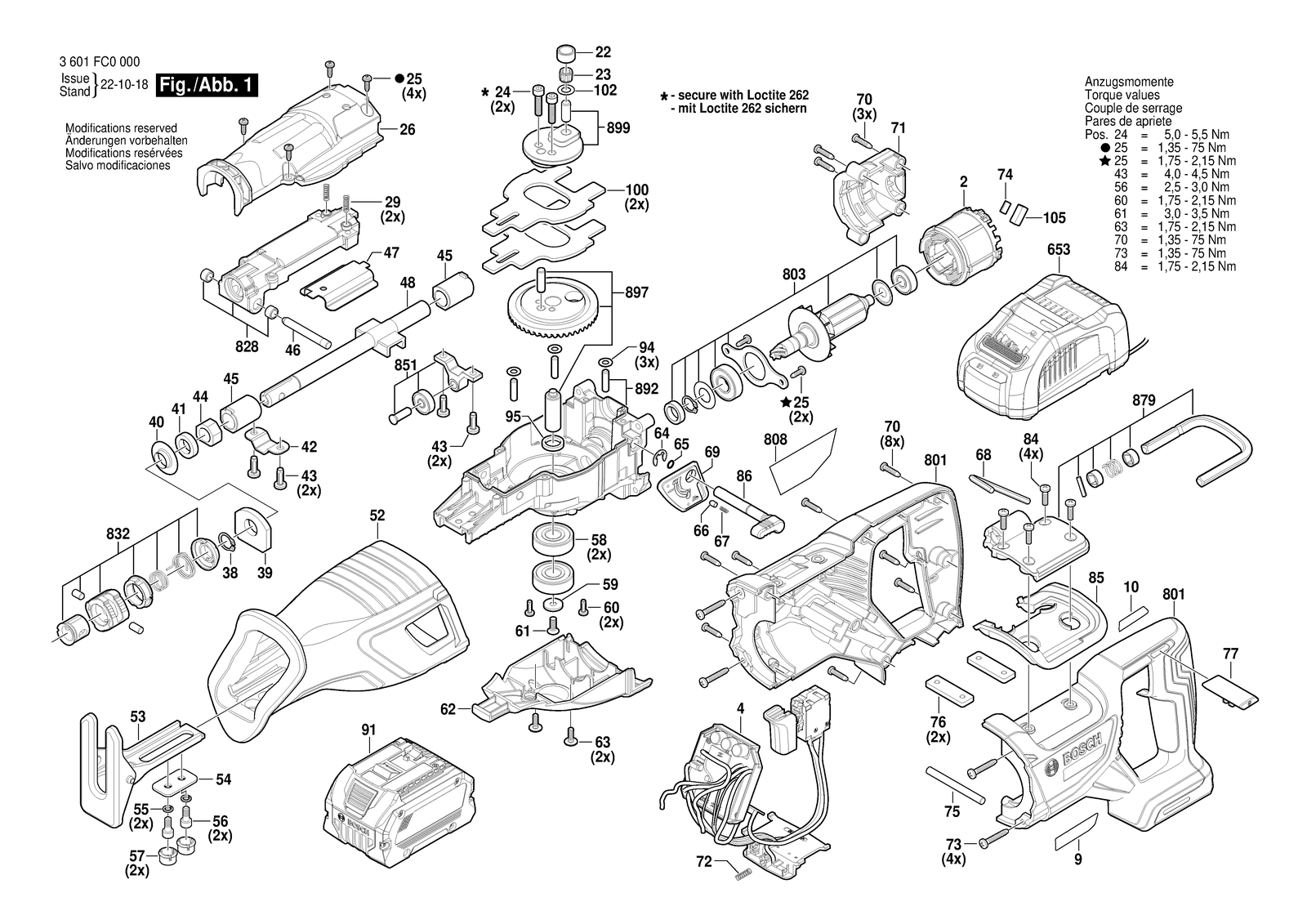

Bosch GSA 185-LI reciprocating saw: exploded parts diagram, 1 sheet, 88 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSA 185-LI: 88 positions on 1 sheet
Bosch GSA 185-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1619PB7521 | Label |
| 10 | 1619PB9258 | Label |
| 100 | 1619PB7604 | Balance Weights |
| 102 | 1619PB7606 | Plain Washer |
| 105 | 1619PB8776 | Rubber Plug |
| 2 | 1619PB7516 | Stator |
| 22 | 1619PB7526 | Roller Drum |
| 23 | 1619PB7527 | Needle bearing |
| 24 | 1619PB7528 | Hex Socket Head Cap Screw |
| 25 | 1619PB7529 | Screw |
| 26 | 1619PB7530 | Gear Cover |
| 29 | 1619PB7533 | Compression Spring |
| 38 | 1619PB7542 | Circlip |
| 39 | 1619PB7543 | Seal Ring |
| 4 | 1619PB7518 | Electronics Module |
| 40 | 1619PB7544 | Flange |
| 41 | 1619PB7545 | Felt seal ring |
| 42 | 1619PB7546 | Clamping Plate |
| 43 | 1619PB7547 | Screw |
| 44 | 1619PB7548 | Seal Ring |
| 45 | 1619PB7549 | Guide Sleeve |
| 46 | 1619PB7550 | Pin |
| 47 | 1619PB7551 | Aligning plate |
| 48 | 1619PB7552 | Plunger Bar |
| 52 | 1619PB7556 | Holding Sleeve |
| 53 | 1619PB7557 | Base Plate |
| 54 | 1619PB7558 | Clamp block |
| 55 | 1619PB7559 | Spring Washer |
| 56 | 1619PB7560 | Hex Socket Head Cap Screw |
| 57 | 1619PB7561 | Cover |
| 58 | 1619PB7562 | Groove ball bearing |
| 59 | 1619PB7563 | Plain Washer |
| 60 | 1619PB7564 | Hex Socket Head Cap Screw |
| 61 | 1619PB7565 | Countersunk-Head Screw |
| 62 | 1619PB7566 | Support |
| 63 | 1619PB7567 | Tapping Screw |
| 64 | 1619PB7568 | Circlip |
| 65 | 1619PB7569 | O-Ring |
| 653 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 653 | 2607225925 | Charger Aus GAL 1880 CV 230/14,4-18V |
| 653 | 2607225929 | Fast Charger Mex GAL 1880 CV 115/14,4-18V |
| 653 | 2607225931 | Charger J GAL 1880 CV 100/14,4-18V |
| 653 | 2607225933 | Charger Rok GAL 1880 CV 220V/14,4-18V |
| 653 | 2607225935 | Charger Br GAL 1880 CV 220V/14,4-18V |
| 653 | 2607225937 | Charger Cn GAL 1880 CV 220V/14,4-18V |
| 653 | 2607225939 | Fast Charger Br GAL 1880 CV 127/14,4-18V |
| 653 | 2607225941 | Charger Ar GAL 1880 CV 220V/14,4-18V |
| 66 | 1619PB7570 | Cap |
| 67 | 1619PB7571 | Spring |
| 68 | 1619PB7572 | Hexagon Socket Screw Key |
| 69 | 1619PB7573 | Indicator Plate |
| 70 | 1619PB7574 | Tapping Screw |
| 71 | 1619PB7575 | Motor cover |
| 72 | 1619PB7576 | Spring |
| 73 | 1619PB7577 | Tapping Screw |
| 74 | 1619PB7578 | Rubber Bar |
| 75 | 1619PB7579 | Piston Pin |
| 76 | 1619PB7580 | Connecting Plate |
| 77 | 1619PB7581 | Locking Level |
| 801 | 1619PB7609 | Housing Assembly |
| 803 | 1619PB7610 | Armature assembly |
| 808 | 1619PB7618 | Nameplate |
| 808 | 1619PB7646 | Nameplate |
| 808 | 1619PB7647 | Nameplate |
| 808 | 1619PB7648 | Nameplate |
| 808 | 1619PB9260 | Nameplate |
| 808 | 1619PB9261 | Nameplate |
| 808 | 1619PB9262 | Nameplate |
| 808 | 1619PB9263 | Nameplate |
| 828 | 1619PB7611 | Pendulum assembly |
| 832 | 1619PB7612 | Toolholder |
| 84 | 1619PB7588 | Cross Recessed-Head Screw |
| 85 | 1619PB7589 | Base Plate |
| 851 | 1619PB7613 | Bearing set |
| 86 | 1619PB7590 | Control Knob |
| 879 | 1619PB7614 | Assembly Hook |
| 892 | 1619PB7615 | Gear Housing |
| 897 | 1619PB7616 | Bevel Gear Set |
| 899 | 1619PB7617 | Eccentric Unit |
| 9 | 1619PB7520 | Label |
| 9 | 1619PB9245 | Label |
| 91 | 1607A350AR | Battery Pack Jpn GBA 18V 8.0AH Procore Scm |
| 91 | 1607A350AS | Battery Pack Kor GBA 18V 8.0AH Procore Scm |
| 91 | 1607A350LR | Battery Pack GBA 18V 5.5 Ah XL Procore Scm |
| 91 | 1617S019K0 | Battery Pack |
| 94 | 1619PB7598 | Washer |
| 95 | 1619PB7599 | Plain Washer |
