Bosch GSA 18 V-LI C cordl reciprocating saw: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSA 18 V-LI C: 42 positions on 1 sheet

Bosch GSA 18 V-LI C parts list (1 sheet)

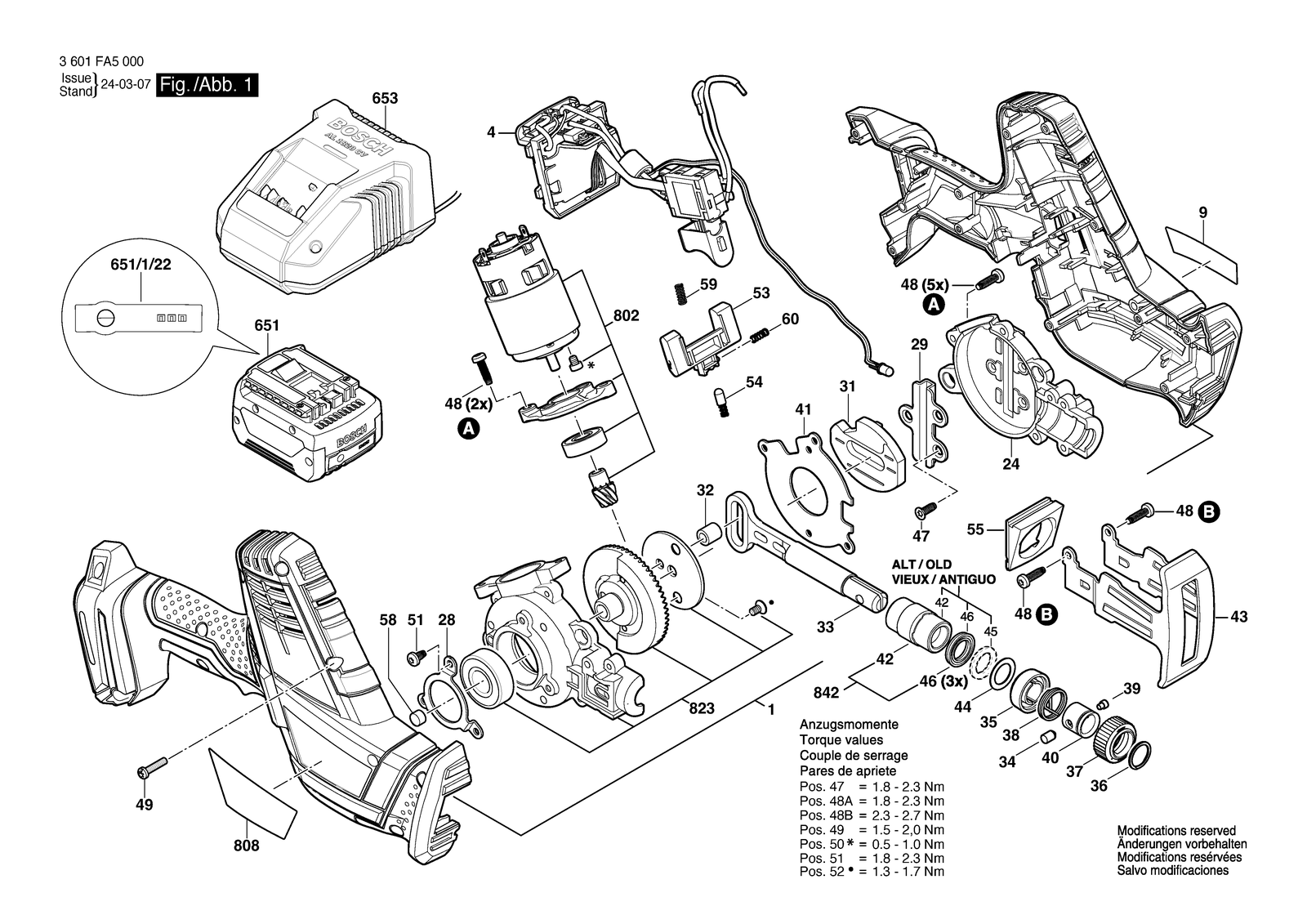

Bosch GSA 18 V-LI C parts diagram, sheet 1
No.Part numberPart name
11619P11962Housing Set
241619P11970Gear Cover
281619P11974Retaining Plate
291619P11975Guide Plate
311619P11978Counter Weight
321619P11981Bushing
331619P11982Spindle
341619P08603Detent Pin
351619P08611Spring Retainer
361619P08612Retaining ring
371619P08613Clamp ring
381619P08614Torsion Spring
391619P13440Retaining Pin
41619P11964Electronic Module
401619P08616Control Sleeve
411619P11983Plate
431600A00Y06Supporting foot
442610908804Protective Washer
471619P07062Thread-Forming Screw
481619P08621Thread-forming tap. Screw
492610315386Screw ST3,9X19
512914492405Thread-forming tap. Screw
531619P11991Locking Level
541619P11992Ratchet Cap
551619P11993Protective Cover
581619P08627Felt Seal
592604690055Compression Spring
601619P13420Compression Spring
6511607A350ANBattery Pack GBA 18V 4.0AH Procore Scm
6511607A350M0Battery Pack GBA 18V 4.0AH
6512607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
651/1/222601115537Sticker
6532607225321Charger EU 230/14,4-18V, 30 40 S
6532607225921Charger EU GAL 1880 CV 230/14,4-18V
6532607225923Charger GB 230/10,8-18V, 30 42 S
6532607226251Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
6532607226267Fast Charger Cn GAL 18V-40
8021619P12758Motor assembly
8081619P32377Nameplate
8231619P12760Gear Box
8421619P13781Seal Parts Set
91619P11966Manufacturer's nameplate GSA 18 V-Li C
