Bosch GSA 18-083N

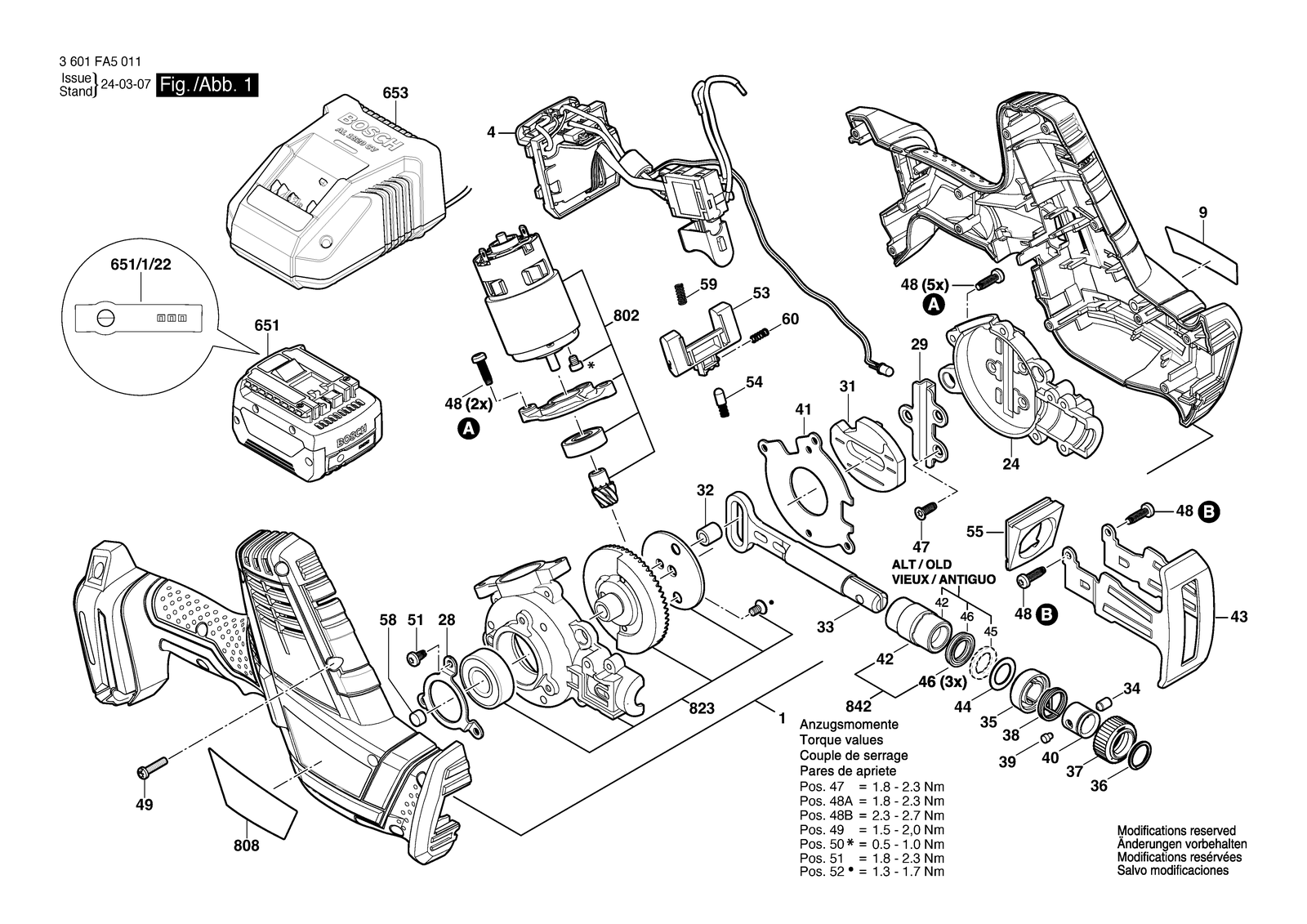

Bosch GSA 18-083N cordl reciprocating saw: exploded parts diagram, 1 sheet, 37 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSA 18-083N: 37 positions on 1 sheet
Bosch GSA 18-083N parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P11962 | Housing Set |
| 24 | 1619P11970 | Gear Cover |
| 28 | 1619P11974 | Retaining Plate |
| 29 | 1619P11975 | Guide Plate |
| 31 | 1619P11978 | Counter Weight |
| 32 | 1619P11981 | Bushing |
| 33 | 1619P11982 | Spindle |
| 34 | 1619P08603 | Detent Pin |
| 35 | 1619P08611 | Spring Retainer |
| 36 | 1619P08612 | Retaining ring |
| 37 | 1619P08613 | Clamp ring |
| 38 | 1619P08614 | Torsion Spring |
| 39 | 1619P13440 | Retaining Pin |
| 4 | 1619P11964 | Electronic Module |
| 40 | 1619P08616 | Control Sleeve |
| 41 | 1619P11983 | Plate |
| 43 | 1600A00Y06 | Supporting foot |
| 44 | 2610908804 | Protective Washer |
| 47 | 1619P07062 | Thread-Forming Screw |
| 48 | 1619P08621 | Thread-forming tap. Screw |
| 49 | 2610315386 | Screw ST3,9X19 |
| 51 | 2914492405 | Thread-forming tap. Screw |
| 53 | 1619P11991 | Locking Level |
| 54 | 1619P11992 | Ratchet Cap |
| 55 | 1619P11993 | Protective Cover |
| 58 | 1619P08627 | Felt Seal |
| 59 | 2604690055 | Compression Spring |
| 60 | 1619P13420 | Compression Spring |
| 651 | 1607A350BM | Battery Pack BAT612 18V 2.0AH LI Scm |
| 651 | 1607A350MB | Battery Pack |
| 651 | 2607336819 | Battery Pack Usa BAT620 18V 4,0AH |
| 651/1/22 | 2601115537 | Sticker |
| 802 | 1619P12758 | Motor assembly |
| 808 | 1619P13842 | Nameplate |
| 823 | 1619P12760 | Gear Box |
| 842 | 1619P13781 | Seal Parts Set |
| 9 | 1619P13843 | Manufacturer's nameplate GSA 18 V-083 |
