Bosch GSA 1300 PE

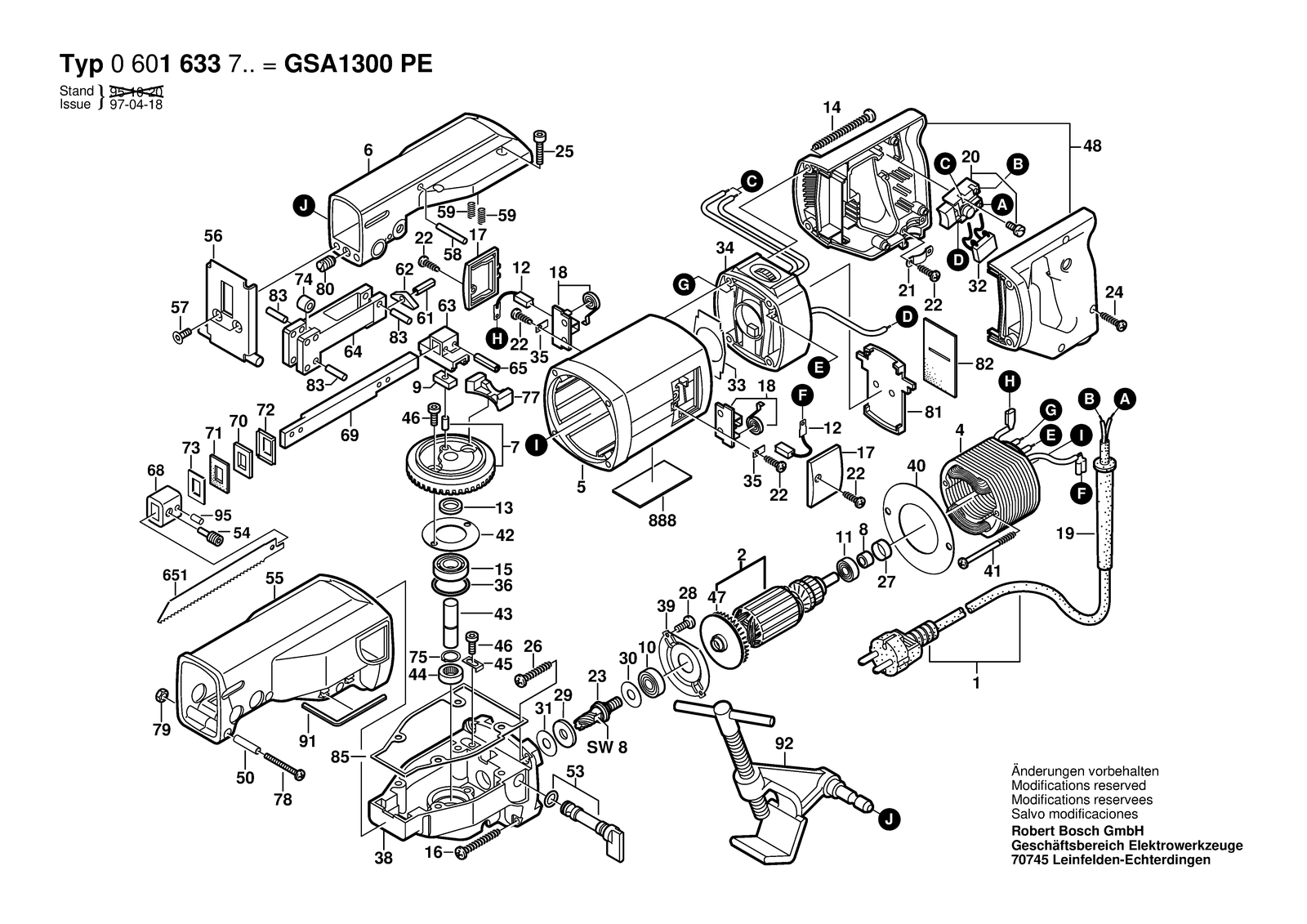

Bosch GSA 1300 PE reciprocating saw: exploded parts diagram, 1 sheet, 82 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSA 1300 PE: 82 positions on 1 sheet
Bosch GSA 1300 PE parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1609203104 | Power supply cord |
| 1 | 1609203223 | Power supply cord |
| 10 | 1609203205 | Groove ball bearing |
| 11 | 1609203206 | Groove ball bearing |
| 12 | 1609203195 | Carbon-Brush Set |
| 13 | 1609203113 | Spacer bushing |
| 14 | 1609203114 | Cross Recessed-Head Screw |
| 15 | 1609203207 | Groove ball bearing |
| 16 | 1609203115 | Cross Recessed-Head Screw |
| 17 | 1609203116 | Sealing cap |
| 18 | 1609203117 | Brush Holder |
| 19 | 1609203118 | Grommet Ø 9X145 MM |
| 19 | 1609203224 | Grommet Ø 11X145 MM |
| 2 | 1609203105 | Armature 230V |
| 20 | 1609203119 | On-Off Switch |
| 21 | 1609203120 | Cable Grip |
| 22 | 1609203121 | Cross Recessed-Head Screw |
| 23 | 1609203225 | Pinion |
| 24 | 1609203122 | Cross Recessed-Head Screw |
| 25 | 1609203123 | Socket head cap screw DIN 912-M5X20 |
| 26 | 1609203124 | Cross Recessed-Head Screw |
| 27 | 1609203125 | Bearing Ring |
| 28 | 1609203126 | Oval-Head Screw |
| 29 | 1609203127 | Seal Ring |
| 30 | 1609203128 | Shim |
| 31 | 1609203129 | Shim |
| 32 | 1609203130 | Suppression Filter |
| 33 | 1609203131 | Sealing Plate |
| 34 | 1609203132 | Cover |
| 35 | 1609203133 | Strap |
| 36 | 1609203134 | Intermediate Ring |
| 38 | 1609203135 | Gear Housing |
| 39 | 1609203136 | Bearing cover |
| 4 | 1609203106 | Field 230V |
| 40 | 1609203137 | Air-Deflector Ring |
| 41 | 1609203138 | Cross Recessed-Head Screw |
| 42 | 1609203139 | Bearing cover |
| 43 | 1609203140 | Bearing bolt |
| 44 | 1609203141 | Needle bearing |
| 45 | 1609203142 | Holding Plate |
| 46 | 1609203143 | Socket head cap screw DIN 6912-M5X10 |
| 47 | 1609203144 | Fan |
| 48 | 1609203145 | Handle |
| 5 | 1609203107 | Motor Housing |
| 50 | 1609203177 | Guide Sleeve |
| 53 | 1609203146 | Eccentric Shaft |
| 54 | 1609203147 | Set screw |
| 55 | 1609203148 | Covering hood |
| 56 | 1609203149 | Support |
| 57 | 1609203150 | Countersunk-Head Screw |
| 58 | 1609203151 | Straight Pin |
| 59 | 1609203152 | Compression Spring |
| 6 | 1609203108 | Gear Cover |
| 61 | 1609203153 | Coiled Spring Pin |
| 62 | 1609203154 | Slider |
| 63 | 1609203155 | End Piece Fork |
| 64 | 1609203156 | Bearing Pedestal |
| 65 | 1609203157 | Coiled Spring Pin |
| 68 | 1609203158 | Clamping Piece |
| 69 | 1609203159 | Lifting Rod |
| 7 | 1609203109 | Bevel Gear |
| 70 | 1609203160 | Felt Seal |
| 71 | 1609203161 | Rubber Gasket |
| 72 | 1609203162 | Holding Plate |
| 73 | 1609203163 | Scraper |
| 74 | 1609203164 | Roller |
| 75 | 1609203165 | Spring retaining ring |
| 77 | 1609203166 | Sliding Piece |
| 78 | 1609203167 | Oval-Head Screw |
| 79 | 1609203168 | Hex Nut |
| 8 | 1609203110 | Ring Magnet |
| 80 | 1609203169 | Thrust Member |
| 81 | 1609203170 | Cover Plate |
| 82 | 1609203171 | Sealing Plate |
| 83 | 1609203172 | Straight Pin |
| 85 | 1609203173 | Seal |
| 888 | 1601118377 | Nameplate |
| 888 | 160111A3H3 | Nameplate |
| 9 | 1609203111 | T-Slot Stone |
| 91 | 1609203174 | Offset Screwdriver |
| 92 | 1609203175 | Tensioning Bracket |
| 95 | 1609203724 | Coiled Spring Pin |
