Bosch GSA 120

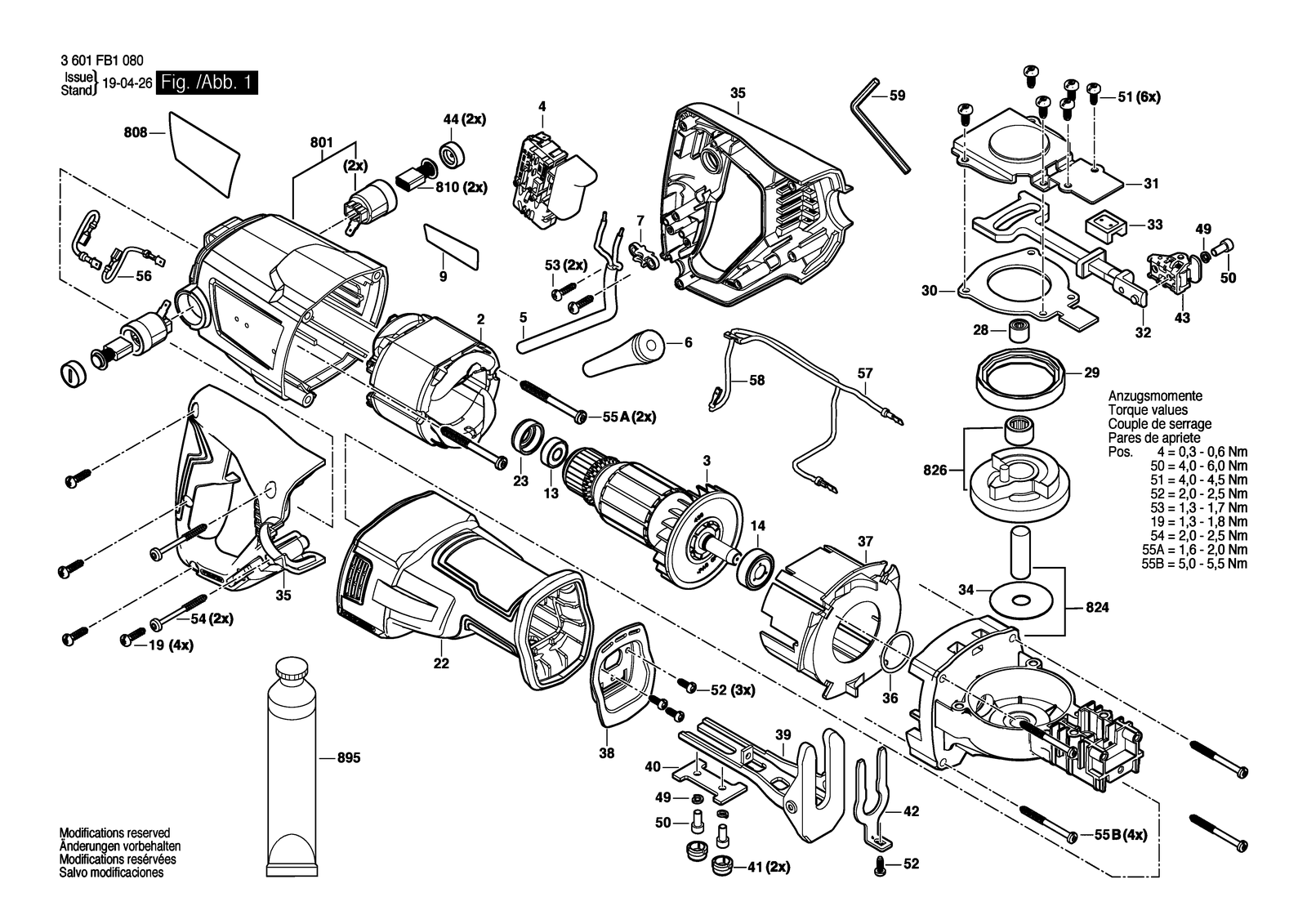

Bosch GSA 120 reciprocating saw: exploded parts diagram, 1 sheet, 68 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSA 120: 68 positions on 1 sheet
Bosch GSA 120 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1619P00456 | Ball Bearing 7X19X6 MM |
| 14 | 1619P10481 | Ball Bearing |
| 19 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 2 | 160422053J | Field |
| 2 | 160422053L | Field |
| 2 | 160422057W | Field |
| 22 | 1619P13893 | Insulating Sleeve |
| 23 | 1619P06227 | Rubber Ring |
| 28 | 2600914017 | Needle bearing Ø6/12 MM |
| 29 | 1619P13916 | Thrust Ring |
| 3 | 1604010B3P | Armature |
| 3 | 1604010B7E | Armature |
| 3 | 1604010BB9 | Armature |
| 30 | 1619P13910 | Cover Plate |
| 31 | 1619P14211 | Cover Plate |
| 32 | 1619P13911 | Lifting Rod |
| 33 | 1619P13907 | Bushing |
| 34 | 1619P14546 | Shim |
| 35 | 1619P13896 | Set Of Handles |
| 36 | F000640007 | O-Ring |
| 37 | 1619P14673 | Air-Deflector Ring |
| 38 | 1619P14201 | Protective Cover |
| 39 | 1619P14202 | Supporting foot |
| 4 | 1607200358 | Switch |
| 4 | 1607200359 | Switch |
| 40 | 1619P14206 | Plate |
| 41 | 1619P14207 | Cover |
| 42 | 1619P14196 | Plate |
| 43 | 1619P14424 | Quick-Clamping Device |
| 44 | 1619P06286 | Insulating Cap |
| 49 | 2916683006 | Spring Lock Washer DIN 127-B 5 |
| 5 | 1604460225 | Power supply cord CN 2,65M 2 X 1,5MM H07 Rn-F |
| 5 | 1619P06199 | Power supply cord ARG 2,65M 2 X 0,75MM H05 Vv-F |
| 5 | 1619P06323 | Power supply cord LAM 2,65M 2 X 1,31MM SJ 16/2 |
| 5 | 1619P10318 | Power supply cord I/br 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 1619P11766 | Power supply cord |
| 5 | 1619P15859 | Power supply cord IND 2,65 M 2X1MM Pvc |
| 5 | 2604460168 | Power supply cord GB 230V 2,65M 2 X 1,0MM H05 Vv-F |
| 5 | 2604460282 | Power supply cord I / BR 2,65M 2 X 1,0MM H05 Vv-F |
| 50 | 1619P11432 | Hex Socket Head Cap Screw |
| 51 | 1613435014 | Torx Oval-Head Screw Silver M5X16-TORX,T25 |
| 52 | 1619P01678 | Screw |
| 53 | 2603490022 | Screw 4X16 |
| 54 | 1619X00658 | Screw |
| 55 | 1619P01508 | Screw |
| 56 | 1619P07060 | Connecting Cable |
| 57 | 1619P14209 | Connecting Cable |
| 58 | 1619P14210 | Connecting Cable |
| 59 | 1619P11420 | Hexagon Socket Wrench |
| 6 | 2600703017 | Grommet Ø6,4-Ø7,2X76 MM |
| 6 | 2600703018 | Grommet Ø7,3-Ø8,6X76 MM |
| 6 | 2600703019 | Grommet Ø8,7-Ø9,6X76 MM |
| 7 | 1619P06313 | Cable Clip |
| 801 | 1619P15313 | Motor Housing |
| 808 | 1619P15144 | Nameplate |
| 808 | 1619P15145 | Nameplate |
| 808 | 1619P15147 | Nameplate |
| 808 | 1619P15149 | Nameplate |
| 808 | 1619P15150 | Nameplate |
| 808 | 1619P15151 | Nameplate |
| 808 | 1619P15152 | Nameplate |
| 808 | 1619P15153 | Nameplate |
| 808 | 1619P16115 | Nameplate |
| 810 | 1619P10063 | Carbon-Brush Set |
| 824 | 1619P15315 | Gear Housing |
| 826 | 1619P15317 | Bevel Gear Set |
| 895 | 3605430003 | Grease Tube Albida |
| 9 | 1619P15154 | Manufacturer's nameplate GSA 120 |
