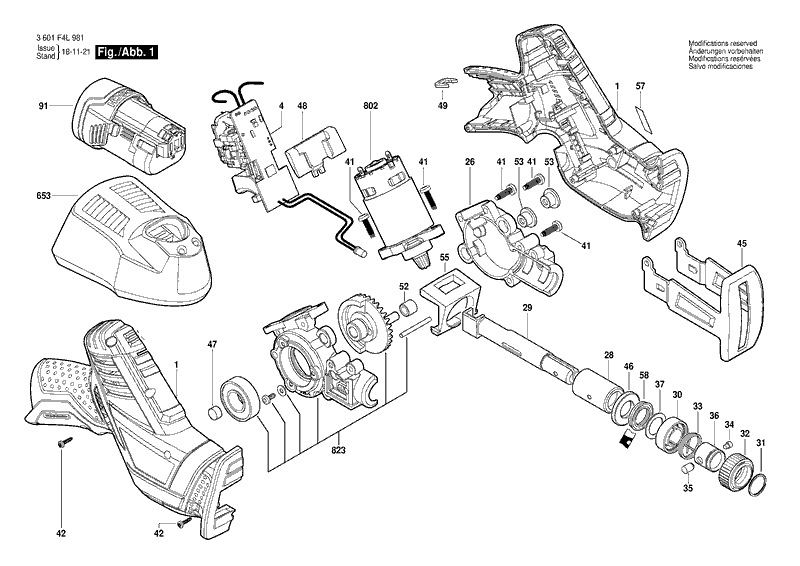

Bosch GSA 12 V-LI cordl reciprocating saw: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSA 12 V-LI: 34 positions on 1 sheet
Bosch GSA 12 V-LI parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619P08600 | Housing |
| 26 | 1619P08606 | Gear Cover |
| 28 | 1619P13475 | Bushing |
| 29 | 1619P08610 | Infeed spindle |
| 30 | 1619P08611 | Spring Retainer |
| 31 | 1619P08612 | Retaining ring |
| 32 | 1619P08613 | Clamp ring |
| 33 | 1619P08614 | Torsion Spring |
| 34 | 1619P13440 | Retaining Pin |
| 35 | 1619P08603 | Detent Pin |
| 36 | 1619P08616 | Control Sleeve |
| 37 | 2610908804 | Protective Washer |
| 4 | 1619P08618 | Electronics Module |
| 41 | 1619P08621 | Thread-forming tap. Screw |
| 42 | 1619P08622 | Plastic-Cutting Screw |
| 45 | 1600A00Y05 | Supporting foot |
| 46 | 2610947537 | Felt Washer |
| 47 | 1619P08627 | Felt Seal |
| 48 | 1619P08665 | Locking Lever |
| 49 | 1619P08646 | Clip |
| 52 | 1619P08617 | Bushing |
| 53 | 1619P08626 | Bumper |
| 55 | 1619P08645 | Protective Cover |
| 57 | 1619P08630 | Sticker |
| 58 | 1619P12117 | Shaft Seal |
| 653 | 2607225141 | Fast Charger SAM 115/10,8V, 30 Min. |
| 653 | 2607225711 | Fast Charger ARG 220/10,8V |
| 653 | 2607225713 | Fast Charger BR 127/10,8V |
| 653 | 2607226095 | Fast Charger Cn GAL 1230 CV 220/12V |
| 653 | 2607226201 | Fast Charger Br GAL 12V-20, 127V-220V |
| 653 | 2607226229 | Fast Charger Jp GAL 12V-40 |
| 802 | 1619P08652 | DC motor 10,8V |
| 823 | 1619P08651 | Housing |
| 91 | 1607A350C5 | Battery Pack GBA 12V 2.0AH LI Scm |
