Bosch GSA 1000

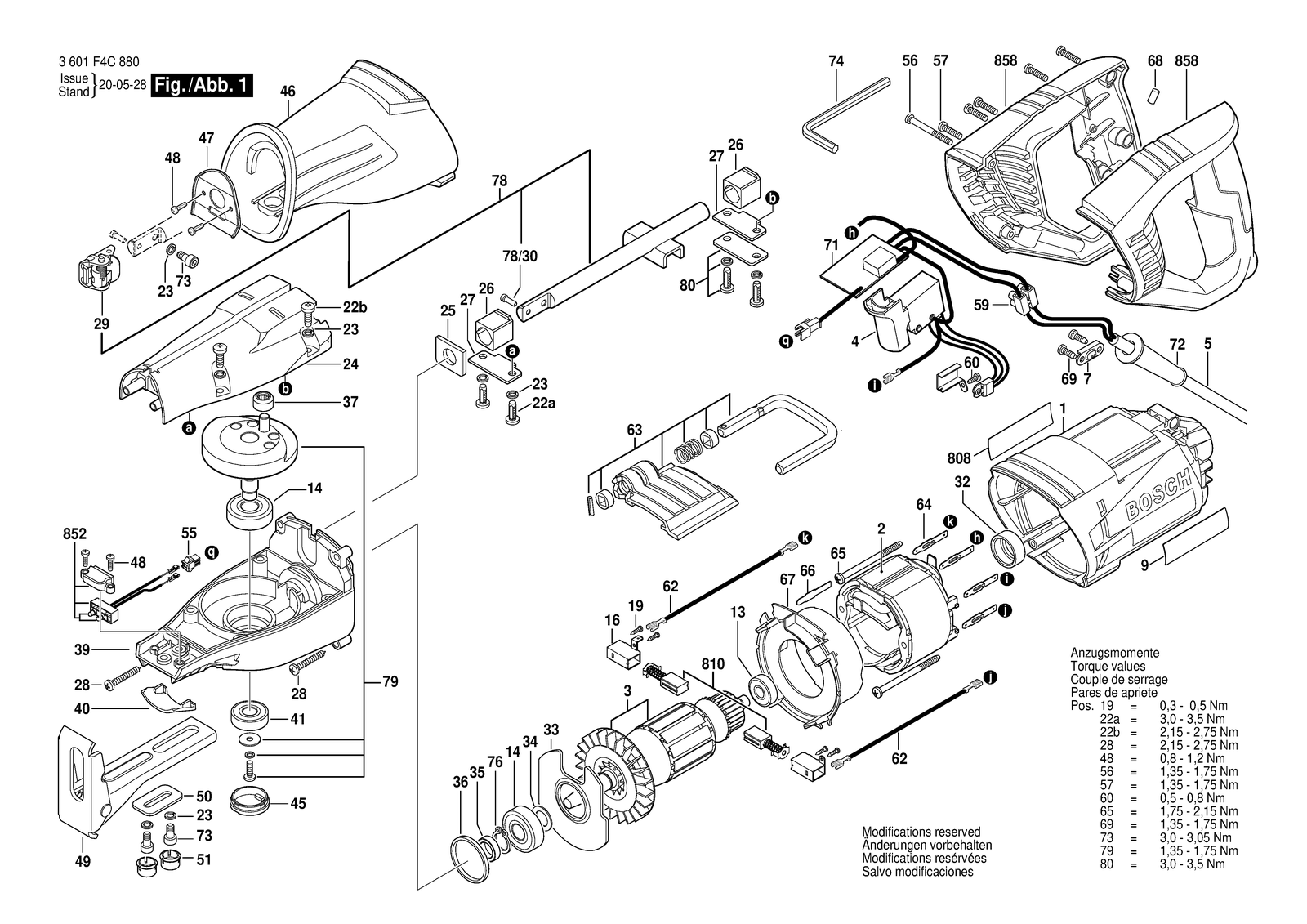

Bosch GSA 1000 reciprocating saw: exploded parts diagram, 1 sheet, 158 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GSA 1000: 158 positions on 1 sheet
Bosch GSA 1000 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610956877 | Housing |
| 1 | 2610956877 | Housing |
| 13 | 2610956882 | Groove ball bearing |
| 13 | 2610956882 | Groove ball bearing |
| 14 | 2610956893 | Groove ball bearing |
| 14 | 2610956893 | Groove ball bearing |
| 16 | 2610956874 | Brush Holder |
| 16 | 2610956874 | Brush Holder |
| 19 | 2610956902 | Tapping Screw |
| 19 | 2610956902 | Tapping Screw |
| 2 | 2610956879 | Stator 100-127V |
| 2 | 2610956879 | Stator 100-127V |
| 2 | 2610956919 | Stator 230V |
| 22 | 2610956894 | Thread-Forming Screw |
| 22 | 2610956894 | Thread-Forming Screw |
| 23 | 1619P04820 | Spring Washer |
| 23 | 1619P04820 | Spring Washer |
| 24 | 2610956897 | Gear Cover |
| 24 | 2610956897 | Gear Cover |
| 25 | 1619P04821 | Felt Seal |
| 25 | 1619P04821 | Felt Seal |
| 26 | 2610956896 | Bushing |
| 26 | 2610956896 | Bushing |
| 27 | 2610956895 | Sealing Plate |
| 27 | 2610956895 | Sealing Plate |
| 28 | 2610956899 | Self-Cutting Screw |
| 28 | 2610956899 | Self-Cutting Screw |
| 29 | 1619PA4168 | Blade Holder |
| 29 | 1619PA4168 | Blade Holder |
| 3 | 2610956883 | Rotor 100-127V |
| 3 | 2610956883 | Rotor 100-127V |
| 3 | 2610956920 | Rotor 230V |
| 32 | 2610956881 | Bearing Holder |
| 32 | 2610956881 | Bearing Holder |
| 33 | 2610956887 | Sealing Plate |
| 33 | 2610956887 | Sealing Plate |
| 34 | 2610956884 | Washer |
| 34 | 2610956884 | Washer |
| 35 | 2610956886 | Bushing |
| 35 | 2610956886 | Bushing |
| 36 | 2610956885 | Rubber Ring |
| 36 | 2610956885 | Rubber Ring |
| 37 | 1619P04823 | Needle-Roller Bearing |
| 37 | 1619P04823 | Needle-Roller Bearing |
| 39 | 2610956890 | Gear Cover |
| 39 | 2610956890 | Gear Cover |
| 4 | 2610956871 | On-Off Switch |
| 4 | 1619P05670 | Switch |
| 4 | 1619PA0421 | On-Off Switch |
| 4 | 1619PA1684 | On-Off Switch |
| 4 | 1619PA1691 | Switch |
| 4 | 2610956871 | On-Off Switch |
| 40 | 1619P04824 | Support Plate |
| 40 | 1619P04824 | Support Plate |
| 41 | 2610956889 | Groove ball bearing |
| 41 | 2610956889 | Groove ball bearing |
| 45 | 2610956888 | Cover |
| 45 | 2610956888 | Cover |
| 46 | 2610956901 | Insulating Sleeve |
| 46 | 2610956901 | Insulating Sleeve |
| 47 | 1619P04826 | Sealing plate |
| 47 | 1619P04826 | Sealing plate |
| 48 | 1619P04827 | Thread-Forming Screw |
| 48 | 1619P04827 | Thread-Forming Screw |
| 49 | 2610956898 | Supporting foot |
| 49 | 2610956898 | Supporting foot |
| 5 | 2610956876 | Power supply cord |
| 5 | 2610957162 | Power supply cord |
| 5 | 2610957167 | Power supply cord |
| 5 | 2610957172 | Power supply cord |
| 5 | 2610957177 | Power supply cord |
| 5 | 2610957182 | Power supply cord |
| 5 | 2610957192 | Power supply cord |
| 5 | 2610957197 | Power supply cord |
| 5 | 2610957207 | Power supply cord |
| 5 | 2610957212 | Power supply cord |
| 50 | 1619P04828 | Clamp |
| 50 | 1619P04828 | Clamp |
| 51 | 2610956900 | Cover |
| 51 | 2610956900 | Cover |
| 55 | 1619P04831 | Receptacle |
| 55 | 1619P04831 | Receptacle |
| 56 | 2610956864 | Tapping Screw |
| 56 | 2610956864 | Tapping Screw |
| 57 | 2610956865 | Tapping Screw |
| 57 | 2610956865 | Tapping Screw |
| 59 | 2610956870 | Terminal Block |
| 59 | 2610956870 | Terminal Block |
| 60 | 2610956869 | Screw |
| 60 | 2610956869 | Screw |
| 62 | 1619P04840 | Connecting Cable |
| 62 | 1619P04840 | Connecting Cable |
| 63 | 2610956907 | Hook |
| 63 | 2610956907 | Hook |
| 64 | 2610956878 | Connecting terminal |
| 64 | 2610956878 | Connecting terminal |
| 65 | 1619P04833 | Tapping Screw |
| 65 | 1619P04833 | Tapping Screw |
| 66 | 1619P04834 | Blade terminal |
| 66 | 1619P04834 | Blade terminal |
| 67 | 2610956880 | Air-Deflector Ring |
| 67 | 2610956880 | Air-Deflector Ring |
| 68 | 1619P04835 | Rubber |
| 68 | 1619P04835 | Rubber |
| 69 | 2610956867 | Tapping Screw |
| 69 | 2610956867 | Tapping Screw |
| 7 | 2610956868 | Cable Clip |
| 7 | 2610956868 | Cable Clip |
| 71 | 2610956872 | Printed Circuit Board |
| 71 | 1619PB7116 | Printed Circuit Board |
| 71 | 1619PB7117 | Printed Circuit Board |
| 71 | 2610956872 | Printed Circuit Board |
| 71 | 2610956916 | Printed Circuit Board |
| 72 | 2610956866 | Cord guard |
| 72 | 2610956866 | Cord guard |
| 73 | 1619P05408 | Hex Socket Head Cap Screw |
| 73 | 1619P05408 | Hex Socket Head Cap Screw |
| 74 | 1619P05422 | Hexagon Socket Wrench |
| 74 | 1619P05422 | Hexagon Socket Wrench |
| 76 | 1619P03340 | Clip |
| 76 | 1619P03340 | Clip |
| 78 | 1619PA0471 | Spindle Assembly |
| 78 | 1619PA0471 | Spindle Assembly |
| 78 | 1619PA1870 | Spindle Assembly |
| 78/30 | 1619P04839 | Pin |
| 78/30 | 1619P04839 | Pin |
| 78/30 | 1619PA1856 | Pin |
| 79 | 1619PA0474 | Bevel Gear |
| 79 | 1619PA0474 | Bevel Gear |
| 80 | 1619PA0475 | Plate |
| 80 | 1619PA0475 | Plate |
| 808 | 1619P04818 | Nameplate |
| 808 | 1619PA2092 | Nameplate |
| 808 | 1619PB7165 | Nameplate |
| 808 | 1619PB7166 | Nameplate |
| 808 | 1619PB8092 | Nameplate |
| 808 | 2610957163 | Nameplate |
| 808 | 2610957168 | Nameplate |
| 808 | 2610957173 | Nameplate |
| 808 | 2610957178 | Nameplate |
| 808 | 2610957193 | Nameplate |
| 808 | 2610957198 | Nameplate |
| 808 | 2610957203 | Nameplate |
| 808 | 2610957208 | Nameplate |
| 808 | 2610957213 | Nameplate |
| 808 | 2610957914 | Nameplate |
| 810 | 1619P04838 | Carbon-Brush Set |
| 810 | 1619P04838 | Carbon-Brush Set |
| 810 | 2610956917 | Carbon-Brush Set |
| 852 | 1619P04837 | Printed Circuit Board |
| 852 | 1619P04837 | Printed Circuit Board |
| 852 | 1619PB7119 | Electronic Assembly |
| 858 | 2610956906 | Set Of Handles |
| 858 | 1619P05669 | Set Of Handles |
| 858 | 1619PB7120 | Set Of Handles |
| 858 | 2610956906 | Set Of Handles |
| 9 | 2610956904 | Manufacturer's nameplate |
| 9 | 1619P05667 | Manufacturer's nameplate GSA 1100 E |
