Bosch GRW 9

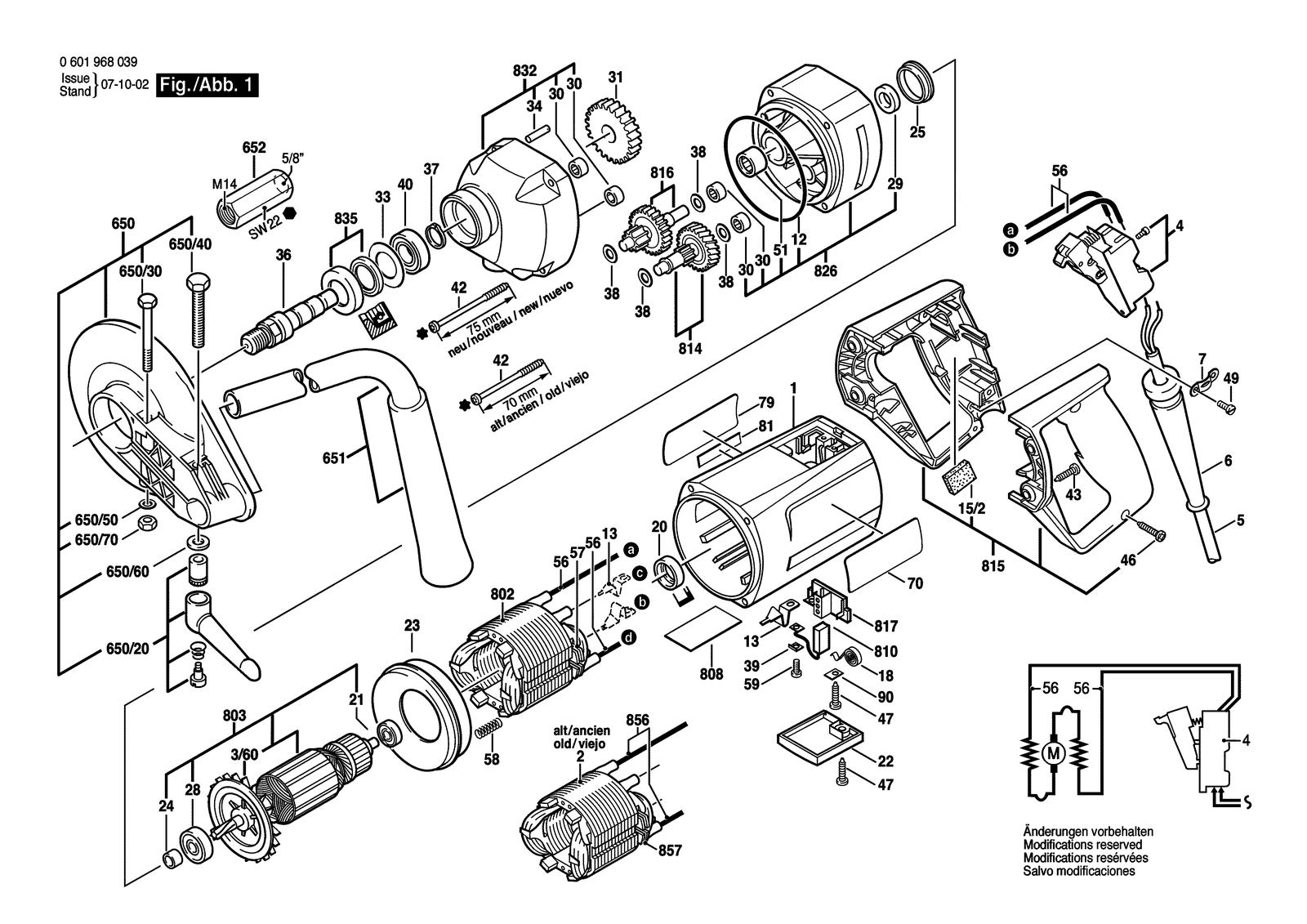

Bosch GRW 9 agitator: exploded parts diagram, 1 sheet, 64 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GRW 9: 64 positions on 1 sheet
Bosch GRW 9 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108145 | Motor Housing Blue |
| 12 | 1600210030 | O-Ring 74,0X1,5 MM |
| 13 | 1604477001 | Blade terminal |
| 15/2 | 1602381006 | Insulating Plate 20X20X50 MM |
| 18 | 1604652006 | Spiral Spring |
| 2 | 1604220371 | Field 110V |
| 20 | 1600502011 | Intermediate Ring |
| 21 | 2600905032 | Ball Bearing 7X19X6 |
| 22 | 3605500060 | Sealing cap Blue |
| 23 | 1600502019 | Air-Deflector Ring |
| 24 | 1600300090 | Intermediate Ring |
| 25 | 1600221003 | Intermediate Ring |
| 28 | 3600905131 | Groove ball bearing 9X26X8 |
| 29 | 1600290016 | Rotary shaft lip seal |
| 3/60 | 1606610122 | Fan |
| 30 | 1600910018 | Needle bearing Ø8XØ12X8 MM |
| 31 | 3606317041 | Cylindrical Gear Z=36 |
| 33 | 1600102003 | Shim Thick 0,5 MM |
| 34 | 2917500121 | Straight Pin 5 H 8X18 DIN 7 |
| 36 | 3603523028 | Spindle 5/8" |
| 37 | 2916650006 | Retaining clip DIN 471-15X1-FST |
| 38 | 3600100064 | Shim |
| 39 | 1611331007 | Tab Washer |
| 4 | 1607200025 | Switch |
| 40 | 1900905162 | Groove ball bearing 15X32X9 |
| 42 | 3603435040 | Lens Head Screw |
| 43 | 2914201527 | Torx Oval-Head Screw |
| 46 | 2914201507 | Torx Oval-Head Screw |
| 47 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 49 | 2910211018 | Tapping Screw DIN 7971-ST3,9X13-F |
| 5 | 3604460045 | Power supply cord Usa/cdn 4,15M 2 X 082MM SJ 18/2 |
| 51 | 3600917019 | Needle bearing |
| 56 | 3604460027 | Connecting Cable White L=360 MM |
| 57 | 3601025003 | Wire Guide |
| 58 | 1604613006 | Compression Spring |
| 59 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 650 | 3605510037 | Splash Guard Black |
| 650/20 | 3602001005 | Clamping Lever |
| 650/30 | 2911011215 | Hex Screw M 6X55 DIN 931-8.8 |
| 650/40 | 2911011254 | Hex Screw DIN 931-M8X50-8.8 |
| 650/50 | 2916011014 | Plain Washer DIN 125-A 6,4-ST |
| 650/60 | 2916011016 | Plain Washer DIN 125-A 8,4-ST |
| 650/70 | 2915011407 | Hex Nut DIN 934-M6-M-MS |
| 651 | 3601923013 | Auxiliary Handle Black |
| 652 | 3609201354 | Threaded Fitting SW22, M14, 5/8" |
| 7 | 1601302014 | Fastening Clamp |
| 70 | 3601110266 | Company Logo |
| 79 | 3601110153 | Sticker |
| 802 | 3604220116 | Field 100-120V |
| 803 | 3607031339 | Armature With Fan 100-120V |
| 808 | 160111A3H3 | Nameplate |
| 81 | 1601110058 | Reference Plate Double Insulation |
| 810 | 1607014126 | Carbon-Brush Set |
| 814 | 3606309046 | Spindle With Gear Z=11/33 |
| 815 | 3605133019 | Handle Black |
| 816 | 3606309048 | Spindle With Gear Z=11/35 |
| 817 | 1604336017 | Brush Holder |
| 826 | 3607031539 | Intermediate Flange |
| 832 | 3607031540 | Spindle Bearing |
| 835 | 3607030355 | Retaining snap ring |
| 856 | 1604438012 | Connecting Cable White L=330 MM |
| 857 | 3601025003 | Wire Guide |
| 90 | 1601030022 | Tab Washer |
