Bosch GRW 18V-120
Bosch GRW 18V-120 mixer: exploded parts diagram, 2 sheets, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

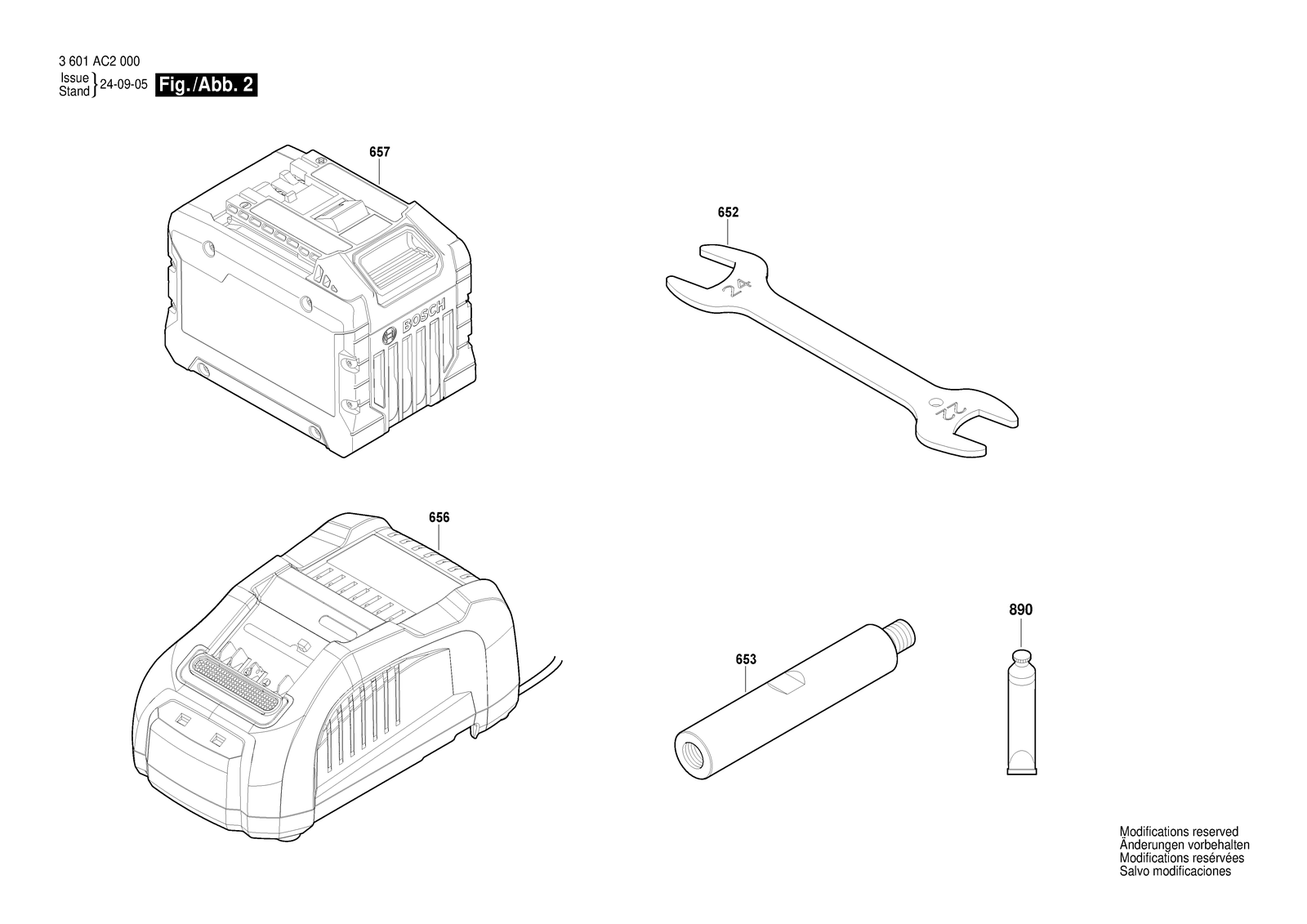

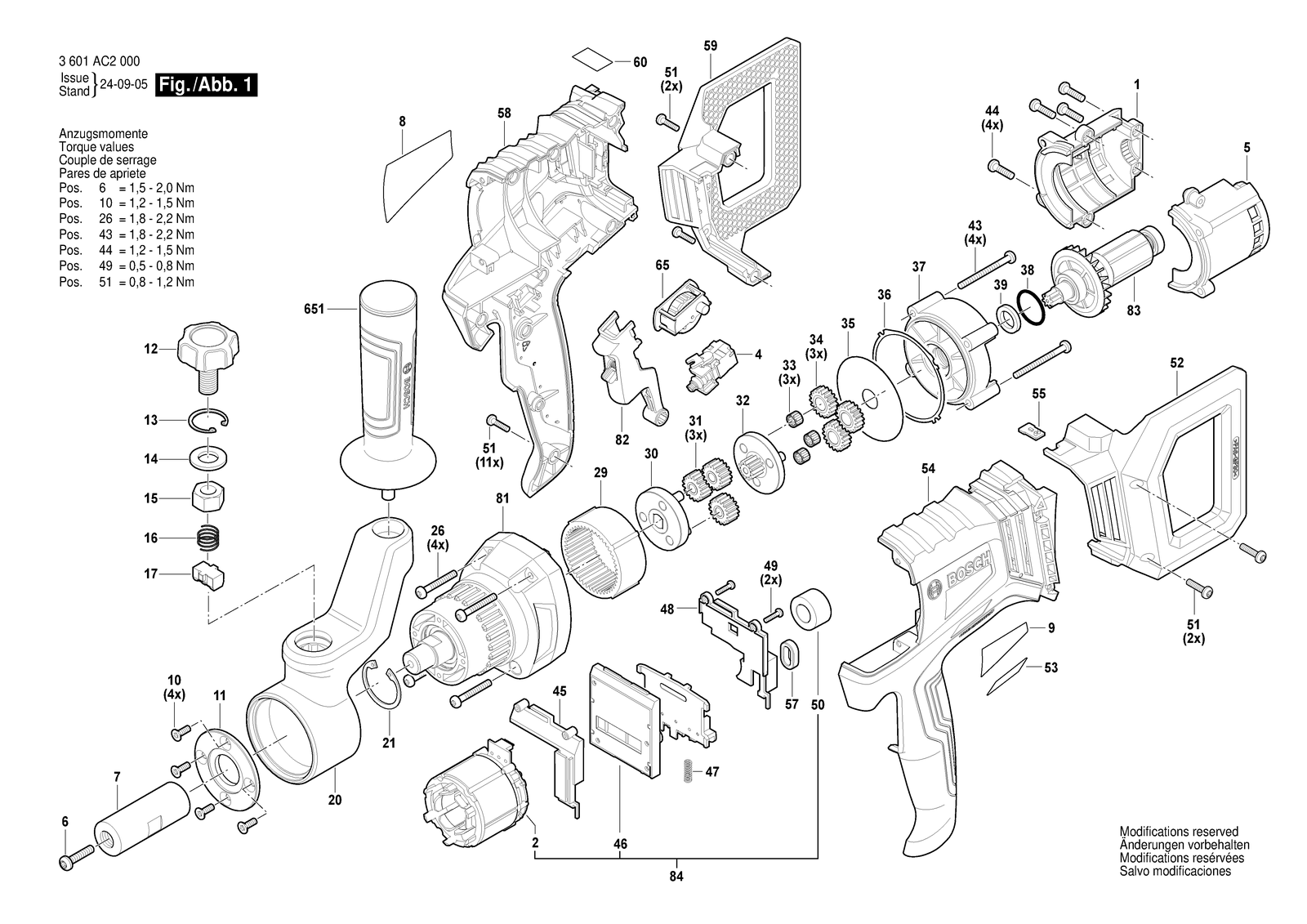

All parts of Bosch GRW 18V-120: 61 positions on 2 sheets
Bosch GRW 18V-120 parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PS1339 | Motor Housing |
| 10 | 1619PS1258 | Torx Oval-Head Screw |
| 11 | 1619PS1259 | Cover |
| 12 | 1619PS1260 | Knob |
| 13 | 1619PS1261 | Retaining ring |
| 14 | 1619PS1262 | Washer |
| 15 | 1619PS1263 | Nut |
| 16 | 1619PS1264 | Spring |
| 17 | 1619PS1265 | Block |
| 2 | 1619PS1253 | Stator |
| 20 | 1619PS1268 | Bracket |
| 21 | 1619PS1269 | Retaining ring |
| 26 | 1619PS1274 | Torx Oval-Head Screw |
| 29 | 1619PS1277 | Ring Gear |
| 30 | 1619PS1278 | Planetary-Gear Carrier |
| 31 | 1619PS1279 | Planet Gear |
| 32 | 1619PS1280 | Sun Gear |
| 33 | 1619PS1281 | Needle bearing |
| 34 | 1619PS1282 | Planet Gear |
| 35 | 1619PS1283 | Washer |
| 36 | 1619PS1284 | Washer |
| 37 | 1619PS1285 | Cover |
| 38 | 1619PS1286 | Ring |
| 39 | 1619PS1287 | Washer |
| 4 | 1619PS1254 | Switch |
| 43 | 1619PS1291 | Torx Oval-Head Screw |
| 44 | 1619PS1292 | Torx Oval-Head Screw |
| 45 | 1619PS1293 | Support |
| 46 | 1619PS1266 | Electronics Module |
| 47 | 1619PS1267 | Compression Spring |
| 48 | 1619PS1294 | Cover |
| 49 | 1619PS1295 | Torx Oval-Head Screw |
| 5 | 1619PS1340 | Motor Housing |
| 50 | 1619PS1296 | Ferrite |
| 51 | 1619PS1297 | Torx Oval-Head Screw |
| 52 | 1619PS1298 | Protection cover |
| 53 | 1619PS1299 | Label |
| 54 | 1619PS1315 | Housing |
| 55 | 1619PS1301 | LED-Module |
| 57 | 1619PS1325 | Ferrite |
| 58 | 1619PS1316 | Housing |
| 59 | 1619PS1304 | Protection cover |
| 6 | 1619PS1341 | Torx Oval-Head Screw |
| 60 | 1619PS1305 | Label |
| 65 | 1619PS1310 | Thumbwheel |
| 651 | 1619PS1331 | Auxiliary Handle |
| 652 | 1619PS1321 | Assembly Wrench 22/24 |
| 653 | 1619PS1323 | Extension M14 |
| 656 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 656 | 2607226267 | Fast Charger Cn GAL 18V-40 |
| 657 | 1617S019K0 | Battery Pack |
| 657 | 2607337069 | Battery Pack Bbs Mr, 18V, 5,0 AH 48 S |
| 7 | 1619PS1311 | Output Shaft |
| 8 | 1619PS1255 | Nameplate |
| 8 | 1619PS1326 | Nameplate |
| 81 | 1619PS1327 | Gear Box |
| 82 | 1619PS1328 | Ferrite |
| 83 | 1619PS1329 | Rotor |
| 84 | 1619PS1330 | Electronic Assembly |
| 890 | 1615430015 | Grease Tube 225 Ml |
| 9 | 1619PS1257 | Manufacturer's nameplate |
