Bosch GRW 140

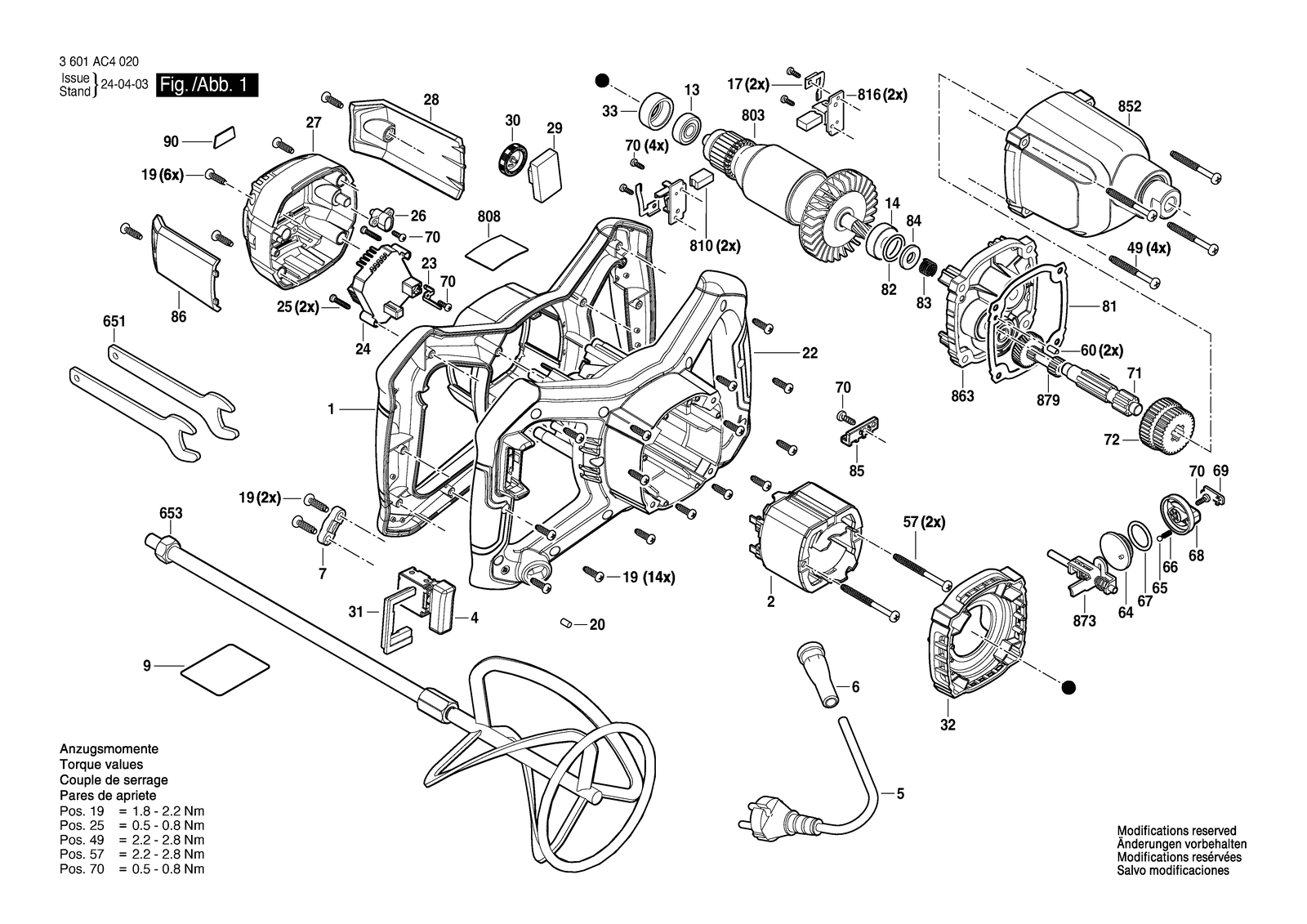

Bosch GRW 140 mixer: exploded parts diagram, 1 sheet, 67 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GRW 140: 67 positions on 1 sheet
Bosch GRW 140 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1619PC1773 | Motor Housing |
| 13 | 1619PC1762 | Ball Bearing |
| 14 | 1619PC1758 | Ball Bearing |
| 17 | 1619PS0917 | Shaped Spring |
| 19 | 1619PC1772 | Tapping Screw |
| 2 | 1619PC1766 | Field |
| 20 | 1619PC2590 | Rubber Bar |
| 22 | 1619PC1783 | Handle Cover |
| 23 | 1619PC1784 | Shaped Spring |
| 24 | 1619PC1126 | Printed Circuit Board |
| 25 | 1619PC1786 | Tapping Screw |
| 26 | 1619PC1787 | Indicator cover |
| 27 | 1619PC1788 | Housing Cover |
| 28 | 1619PC1789 | Protective Cover |
| 29 | 1619PC1777 | Potentiometer |
| 30 | 1619PC1778 | Thumbwheel |
| 31 | 1619PC1774 | Spacer |
| 32 | 1619PC1764 | Air-Deflector Ring |
| 33 | 1619PC1763 | Rubber Ring |
| 4 | 1619PC1775 | On-Off Switch |
| 49 | 1619PC1720 | Tapping Screw |
| 5 | 1619PC1767 | Power supply cord |
| 5 | 1619PC1768 | Power supply cord |
| 5 | 1619PC1769 | Power supply cord |
| 5 | 1619PC1770 | Power supply cord |
| 5 | 1619PC2154 | Power supply cord |
| 5 | 1619PC2155 | Power supply cord |
| 5 | 1619PC2156 | Power supply cord |
| 5 | 1619PS2153 | Power supply cord |
| 57 | 1619PC1765 | Tapping Screw |
| 6 | 1619PC1771 | Grommet |
| 60 | 1619PC1731 | Straight Pin |
| 64 | 1619PC1736 | Shift Plate |
| 65 | 1619PC1737 | Ball |
| 651 | 1619PC1797 | Assembly Wrench |
| 653 | 1619PC1798 | Mixer Attachment |
| 66 | 1619PC1738 | Spring |
| 67 | 1619PC1739 | O-Ring |
| 68 | 1619PC1740 | Shift-Lever Knob |
| 69 | 1619PC1741 | Cover Plate |
| 7 | 1619PC1776 | Cable Clip |
| 70 | 1619PC1742 | Tapping Screw |
| 71 | 1619PC1743 | Toothed Shaft |
| 72 | 1619PC1744 | Toothed Gear |
| 803 | 1619PC1757 | Armature set |
| 808 | 1619PC1791 | Nameplate |
| 808 | 1619PC1792 | Nameplate |
| 808 | 1619PC1793 | Nameplate |
| 808 | 1619PC1794 | Nameplate |
| 808 | 1619PC1795 | Nameplate |
| 808 | 1619PC2035 | Nameplate |
| 808 | 1619PC2036 | Nameplate |
| 808 | 1619PC2037 | Nameplate |
| 81 | 1619PC1753 | Sealing Plate |
| 810 | 1619PC2022 | Carbon-Brush Set |
| 816 | 1619PC2576 | Brush Holder |
| 82 | 1619PC1754 | O-Ring |
| 83 | 1619PC1755 | Spring |
| 84 | 1619PC1756 | Felt seal ring |
| 85 | 1619PC1779 | Cable Clip |
| 852 | 1619PC1721 | Gear Housing |
| 86 | 1619PC1790 | Protective Cover |
| 863 | 1619PC1732 | Intermediate Flange |
| 873 | 1619PC1745 | Shift Lever |
| 879 | 1619PC1750 | Gear Unit |
| 9 | 1619PC1796 | Manufacturer's nameplate GRW 140 |
| 90 | 1619PC1932 | Warning Label |
