Bosch GRW 12 E

Bosch GRW 12 E agitator: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GRW 12 E: 53 positions on 1 sheet

Bosch GRW 12 E parts list (1 sheet)

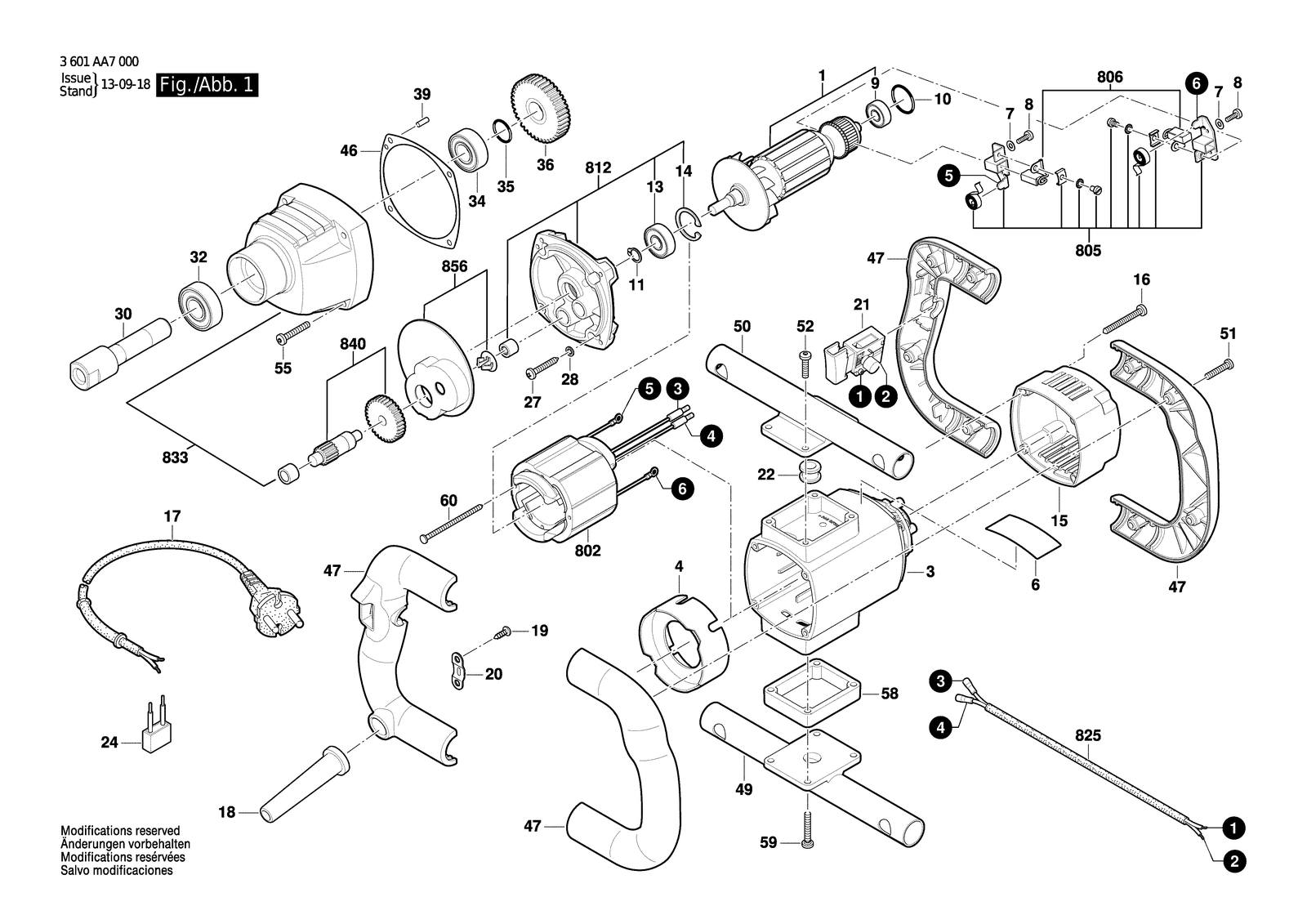

Bosch GRW 12 E parts diagram, sheet 1
No.Part numberPart name
11604010B1UArmature 230V
11604010B1YArmature 110V
101600210247O-Ring
111600150016Spring retaining ring
133600905128Groove ball bearing
143600119038Spring retaining ring
151600A001U1Cap
161603490A01Tapping Screw
171604460712Power supply cord
171604460713Power supply cord
173604460118Power supply cord EU 0,32M 2 X 1MM H07 Rn-F
183605703084Grommet
191603490A02Tapping Screw
201600A001U3Strain-Relief Clamp
211607000E7RSwitch
211607000E7SSwitch
221600703047Cord guard
243607328015Suppression Filter
271603490A03Tapping Screw
281600A001U6Seal
3160510829TMotor Housing
301600A001U7Spindle
32160090003FGroove ball bearing
34160090003GGroove ball bearing
351600A001U8Shim ring
361600A001U9Cylindrical Gear
391600A001UBHalf-Length Grooved Pin
41600591059Air-Deflector Ring
461600A001UCSeal
471600A001UDHandle Cover
491600A001UFTube
501600A001UGTube
511600A001UPPlastic-Cutting Screw
521600A001URPlastic-Cutting Screw
551600A001UTOval-Head Screw
581600A001ULIntermediate Piece
591600A001USPlastic-Cutting Screw
61619PB1005Nameplate
61619PB1060Nameplate
61619PB1061Nameplate
601603490A04Tapping Screw
73600150024Spring Washer
83603435019Thread-forming tap. Screw DIN 7500C-ZM4X12 MM
802160422023SPole Shoe 230V
802160422051CPole Shoe 110V
8051600A001UMBrush Holder
806160701417ACarbon-Brush Set
812160580807RBearing Flange
8251600A001U5Strand
833160580626HGear Housing
8401600A001UNGear Unit
8561605500454Cover
9160090003DGroove ball bearing
