Bosch GRT 18V-33 grass trimmer: exploded parts diagram, 2 sheets, 35 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GRT 18V-33: 35 positions on 2 sheets

Bosch GRT 18V-33 parts list (2 sheets)

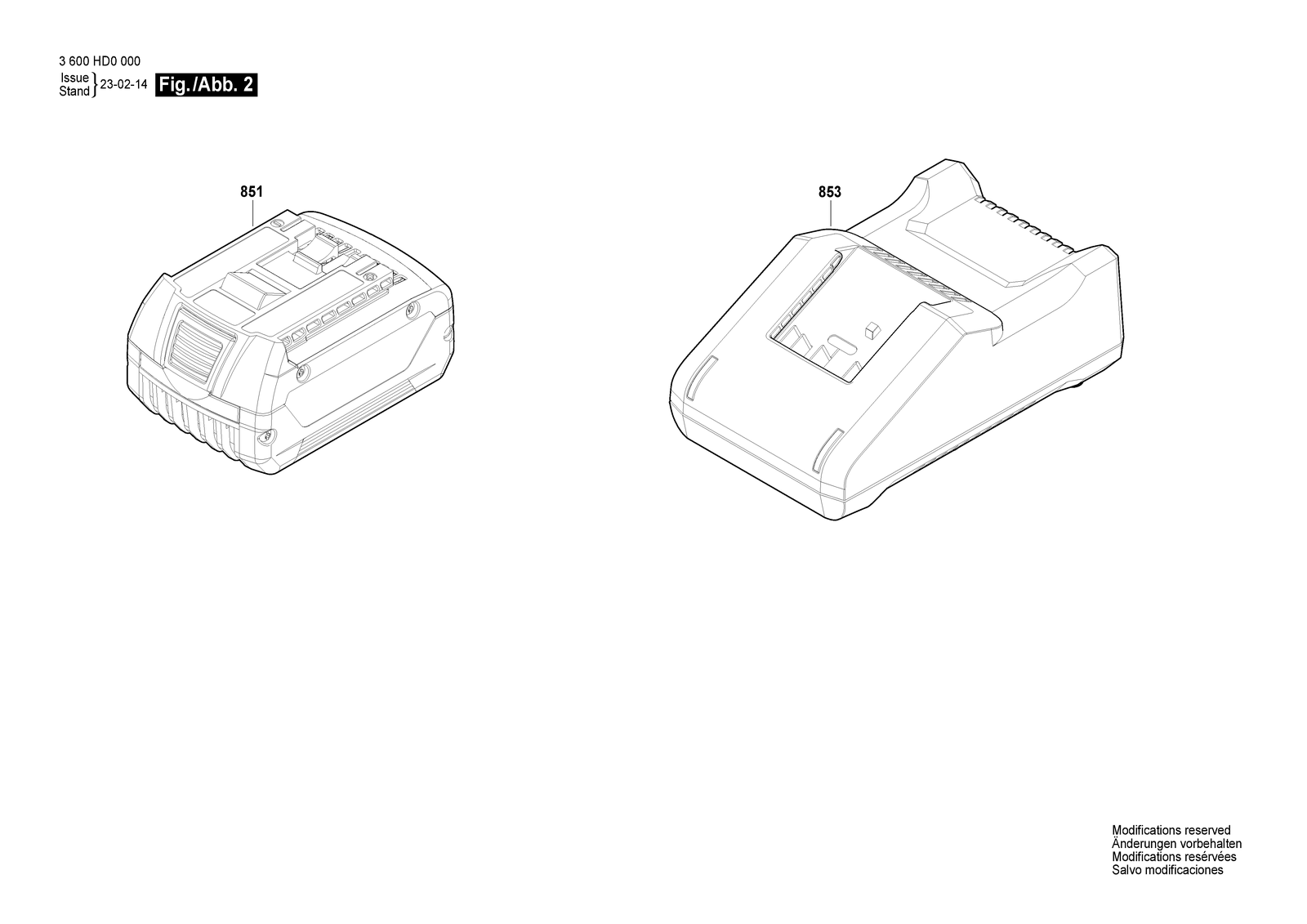

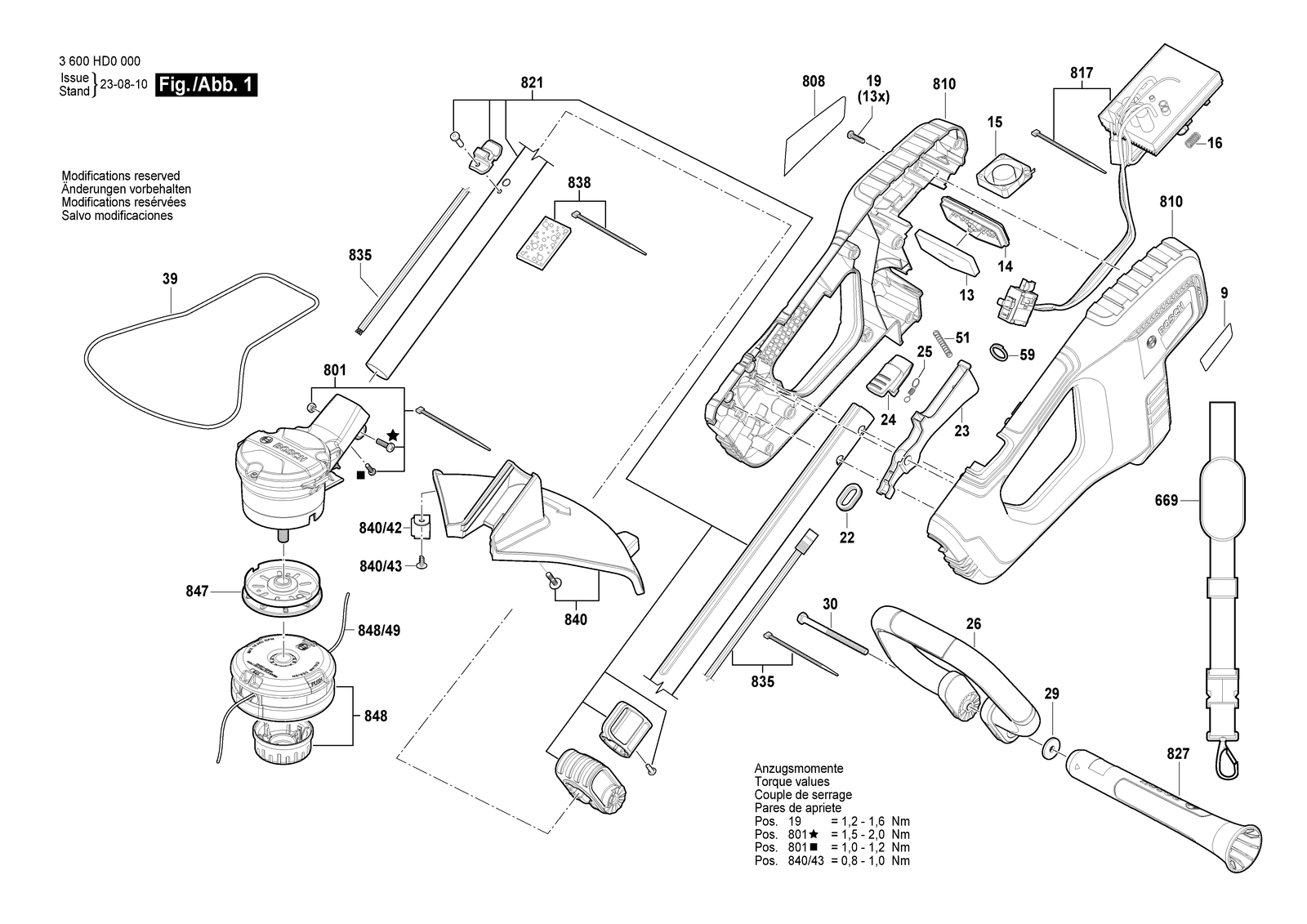

Bosch GRT 18V-33 parts diagram, sheet 1Bosch GRT 18V-33 parts diagram, sheet 2
No.Part numberPart name
13F016L78911Particle Filter
14F016L78907Support Frame
15F016L78459Fan
16F016L79073Compression Spring
19F016L78439Screw
22F016L78908Grommet
23F016L78412Trigger
24F016L78413Button
25F016L78438Spring
26F016L78902Handle
29F016L78701Washer
30F016L78447Bolt
39F016L78582Protector
51F016L78778Spring
59F016L78913Ring
669F016L79090Shoulder strap
801F016F06032Motor assembly
808F016F06043Nameplate
808F016F06301Nameplate
810F016F06034Housing
817F016F06035Electronic Assembly
821F016F06036Tube
827F016F06037Safety Guard
835F016F06038Cable
838F016F06039Particle Filter
840F016F05840Guard
840/42F016L78449Blade
840/43F016L78456Screw
847F016F05867Fan
848F016F05841Cutting line cartridge
848/49F016L78457Plastic Cable
8512607337069Battery Pack Bbs Mr, 18V, 5,0 AH 48 S
8532607226251Fast Charger EU GAL 18V-40, 230V/10,8V – 18V
8532607226255Fast Charger Aus GAL 18V-40
9F016L78918Manufacturer's nameplate GFR 18V-33
