Bosch GRL 500 HV
Bosch GRL 500 HV laser level: exploded parts diagram, 2 sheets, 96 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

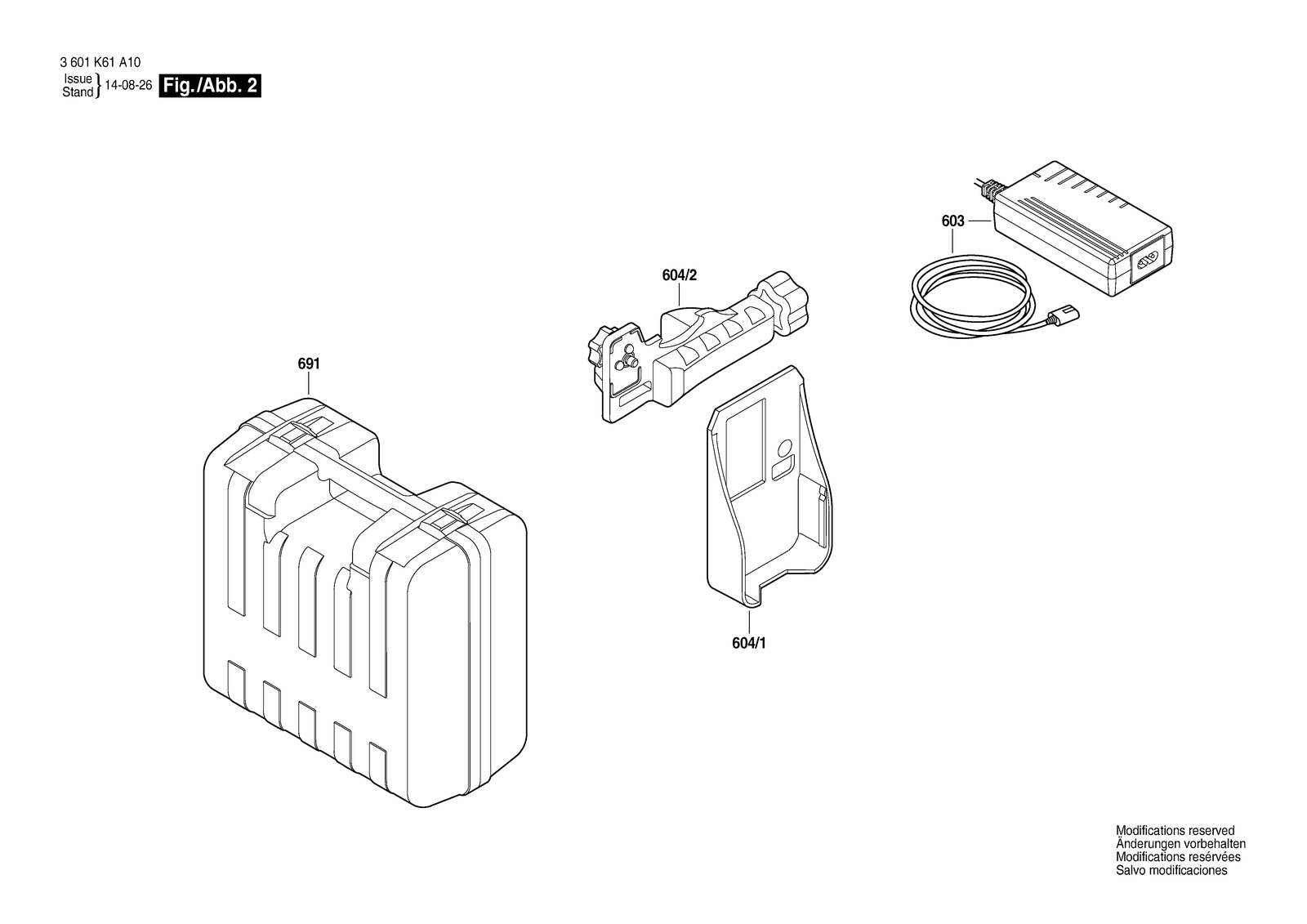

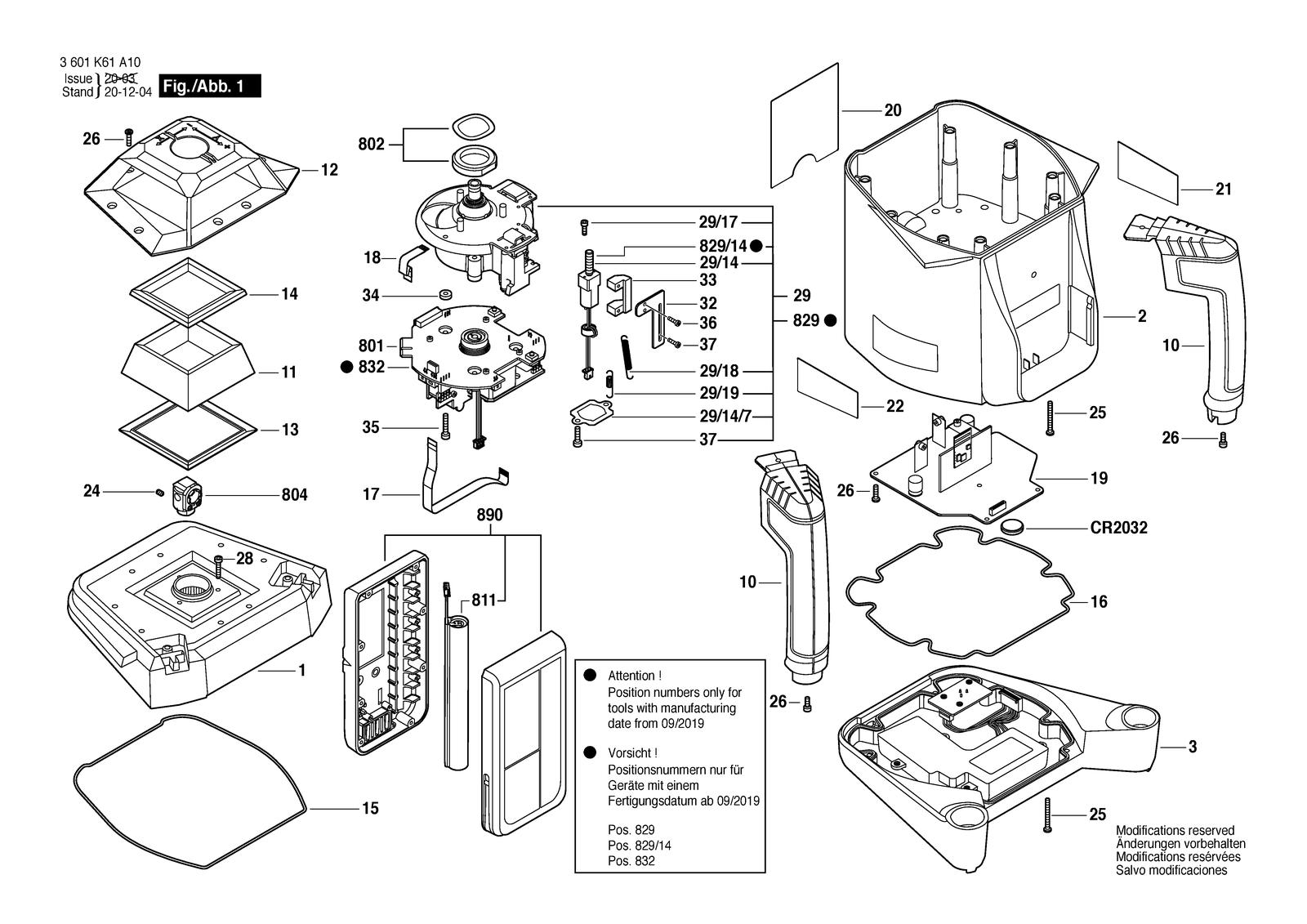

All parts of Bosch GRL 500 HV: 96 positions on 2 sheets
Bosch GRL 500 HV parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610A15836 | Upper Housing |
| 1 | 2610A15836 | Upper Housing |
| 10 | 2610A15846 | Handle |
| 10 | 2610A15846 | Handle |
| 11 | 2610A14201 | Window |
| 11 | 2610A14201 | Window |
| 12 | 2610A15857 | Cage |
| 12 | 2610A15857 | Cage |
| 12 | 2610A15859 | Cage |
| 13 | 2610A14928 | Rubber Gasket |
| 13 | 2610A14928 | Rubber Gasket |
| 14 | 2610A14929 | Rubber Gasket |
| 14 | 2610A14929 | Rubber Gasket |
| 15 | 2610A15869 | Mat seal |
| 15 | 2610A15869 | Mat seal |
| 16 | 2610A15870 | Mat seal |
| 16 | 2610A15870 | Mat seal |
| 17 | 2610A16107 | Cable |
| 17 | 2610A16107 | Cable |
| 18 | 2610A12359 | Flexible Pcb |
| 18 | 2610A12359 | Flexible Pcb |
| 19 | 1600A00H57 | Printed-Board Assembly |
| 19 | 1600A00H57 | Printed-Board Assembly |
| 2 | 1600A0216Z | Housing Assembly |
| 2 | 2610A16109 | Housing Assembly |
| 2 | 1600A0216Z | Housing Assembly |
| 2 | 2610A16109 | Housing Assembly |
| 20 | 2610A15873 | Nameplate |
| 20 | 2610A16111 | Nameplate |
| 20 | 2610A15894 | Nameplate |
| 20 | 2610A16112 | Nameplate |
| 21 | 2610A16652 | Adhesive Label |
| 22 | 2610A16653 | Adhesive Label |
| 24 | 2610A12270 | Set screw |
| 24 | 2610A12270 | Set screw |
| 25 | 2610A07331 | Screw |
| 25 | 2610A07331 | Screw |
| 26 | 2610A14967 | Screw |
| 26 | 2610A14967 | Screw |
| 28 | 2610A12284 | Hex Socket Head Cap Screw |
| 28 | 2610A12284 | Hex Socket Head Cap Screw |
| 29 | 16051082MT | Motor Housing |
| 29 | 16051082MT | Motor Housing |
| 29/14 | 2610A13249 | Motor-gearbox assembly |
| 29/14 | 2610A13249 | Motor-gearbox assembly |
| 29/14/7 | 2610A12302 | Motor Plate |
| 29/14/7 | 2610A12302 | Motor Plate |
| 29/17 | 2610A12275 | Hex Socket Head Cap Screw |
| 29/17 | 2610A12275 | Hex Socket Head Cap Screw |
| 29/18 | 2610A12283 | Extension Spring |
| 29/18 | 2610A12283 | Extension Spring |
| 29/19 | 2610A13065 | Extension Spring |
| 29/19 | 2610A13065 | Extension Spring |
| 3 | 2610A15840 | Housing Assembly Li-Ion 7.4V 3000MAH / 22,2WH |
| 3 | 2610A15840 | Housing Assembly Li-Ion 7.4V 3000MAH / 22,2WH |
| 32 | 2610A13397 | Limit Switch |
| 32 | 2610A13397 | Limit Switch |
| 33 | 2610A13399 | Limit Switch |
| 33 | 2610A13399 | Limit Switch |
| 34 | 2610A12269 | Special Washer |
| 34 | 2610A12269 | Special Washer |
| 35 | 2610A12284 | Hex Socket Head Cap Screw |
| 35 | 2610A12284 | Hex Socket Head Cap Screw |
| 36 | 2610A12272 | Hex Socket Head Cap Screw |
| 36 | 2610A12272 | Hex Socket Head Cap Screw |
| 37 | 2610A12301 | Tapping Screw |
| 37 | 2610A12301 | Tapping Screw |
| 603 | 2610A16712 | Power supply unit EU 230V |
| 603 | 2610A16714 | Power supply unit AUS 240V |
| 603 | 2610A16715 | Power supply unit USA 110V |
| 603 | 2610A16714 | Power supply unit AUS 240V |
| 603 | 2610A16715 | Power supply unit USA 110V |
| 604/1 | 2610A15904 | Mounting Bracket |
| 604/1 | 2610A15904 | Mounting Bracket |
| 604/2 | 2610A14830 | Clamp Bracket |
| 604/2 | 2610A14830 | Clamp Bracket |
| 691 | 2610A16699 | Carrying Case |
| 691 | 2610A16699 | Carrying Case |
| 801 | 1600A01NM5 | Leveling element |
| 801 | 1600A01NL7 | Leveling element |
| 802 | 2610A16051 | Ball sleeve |
| 802 | 2610A16051 | Ball sleeve |
| 804 | 2610A16472 | Prism support |
| 804 | 2610A16472 | Prism support |
| 811 | 2610A15826 | Battery Pack |
| 811 | 2610A15826 | Battery Pack |
| 829 | 2610A16480 | Motor Housing |
| 829 | 2610A16480 | Motor Housing |
| 829/14 | 1600A01R7V | Motor-gearbox assembly |
| 829/14 | 1600A01R7V | Motor-gearbox assembly |
| 832 | 1600A020PB | Leveling element |
| 832 | 1600A020PA | Leveling element |
| 890 | 1600A020RB | Laser detector |
| 890 | 1600A020RE | Laser detector |
| 890 | 1600A020RB | Laser detector |
| 890 | 1600A020RE | Laser detector |
