Bosch GRL 400 H

Bosch GRL 400 H laser level: exploded parts diagram, 1 sheet, 43 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GRL 400 H: 43 positions on 1 sheet

Bosch GRL 400 H parts list (1 sheet)

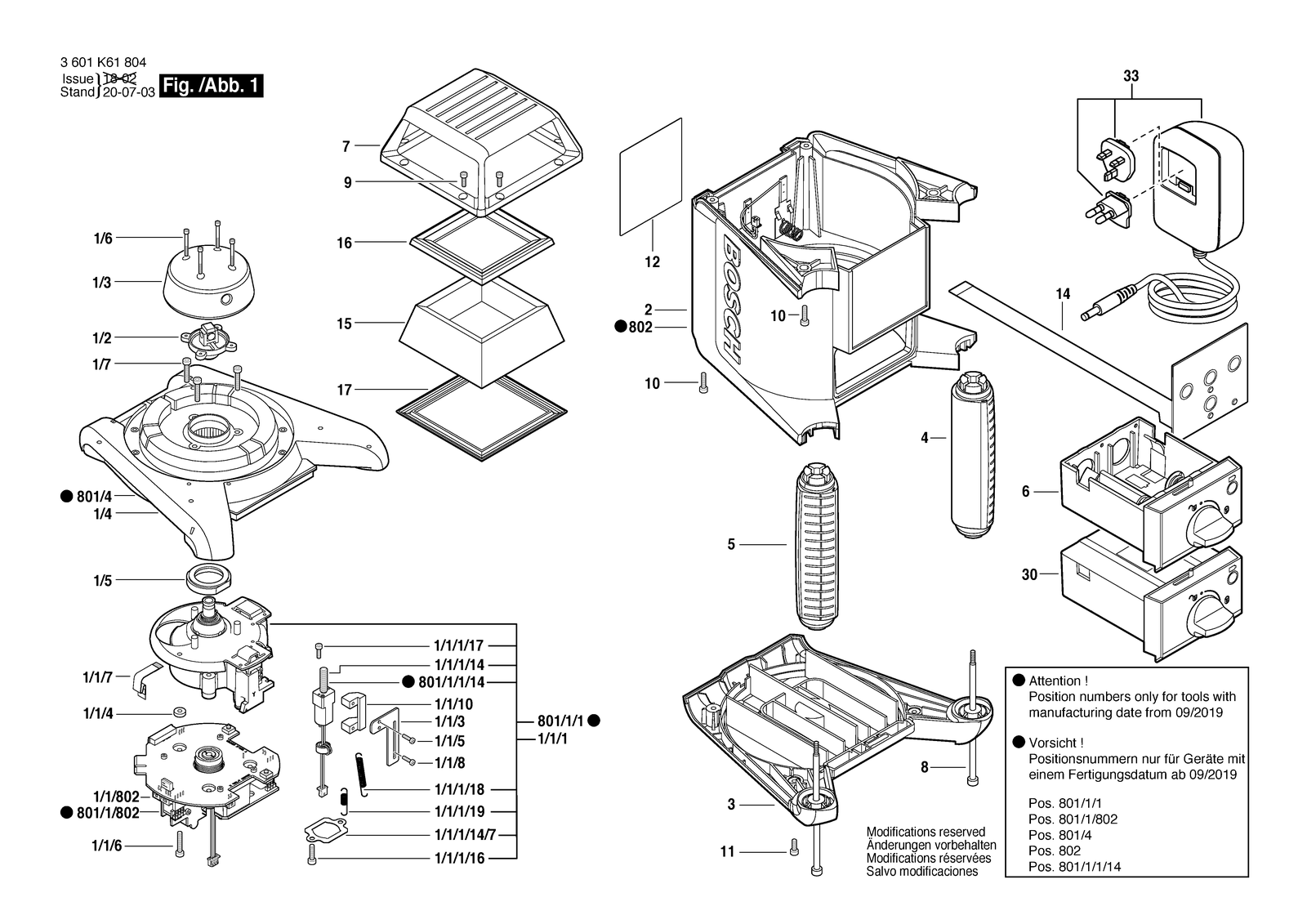

Bosch GRL 400 H parts diagram, sheet 1
No.Part numberPart name
1/1/116051082MSMotor Housing
1/1/1/142610A13249Motor-gearbox assembly
1/1/1/14/72610A12302Motor Plate
1/1/1/162610A12301Tapping Screw
1/1/1/172610A12275Hex Socket Head Cap Screw
1/1/1/182610A12283Extension Spring
1/1/1/192610A13065Extension Spring
1/1/102610A13399Limit Switch
1/1/32610A13397Limit Switch
1/1/42610A12269Special Washer
1/1/52610A12272Hex Socket Head Cap Screw
1/1/62610A12284Hex Socket Head Cap Screw
1/1/72610A12359Flexible Pcb
1/1/82610A12301Tapping Screw
1/1/8021600A01NM3Leveling element
1/22610A12298Lens mount
1/32610A14598Rotating Beacon
1/42610A13908Assembly
1/52610A15789Ball sleeve
1/62610A12362Hex Socket Head Cap Screw
1/72610A12284Hex Socket Head Cap Screw
102610A12459Hex Socket Head Cap Screw
112610A12460Hex Socket Head Cap Screw
122609135943Nameplate
142610A13405Keyboard
152610A06622Window
162610A13364Rubber Gasket
172610A13365Rubber Gasket
22610A14450Housing
32610A12957Housing
302610A15308Battery Pack
332610A15290Battery Charger
42610A12464Handle
52610A12309Handle
62610A12327Battery box assembly
72610A13906Cage
82610A12310Threaded Bolt
801/1/12610A14673Motor Housing
801/1/1/141600A01R7VMotor-gearbox assembly
801/1/8021600A020P8Leveling element
801/41600A01R86Assembly
8021600A01R89Housing
92610A12348Hex Socket Head Cap Screw
