Bosch GRL 300 HV
Bosch GRL 300 HV laser level: exploded parts diagram, 2 sheets, 129 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

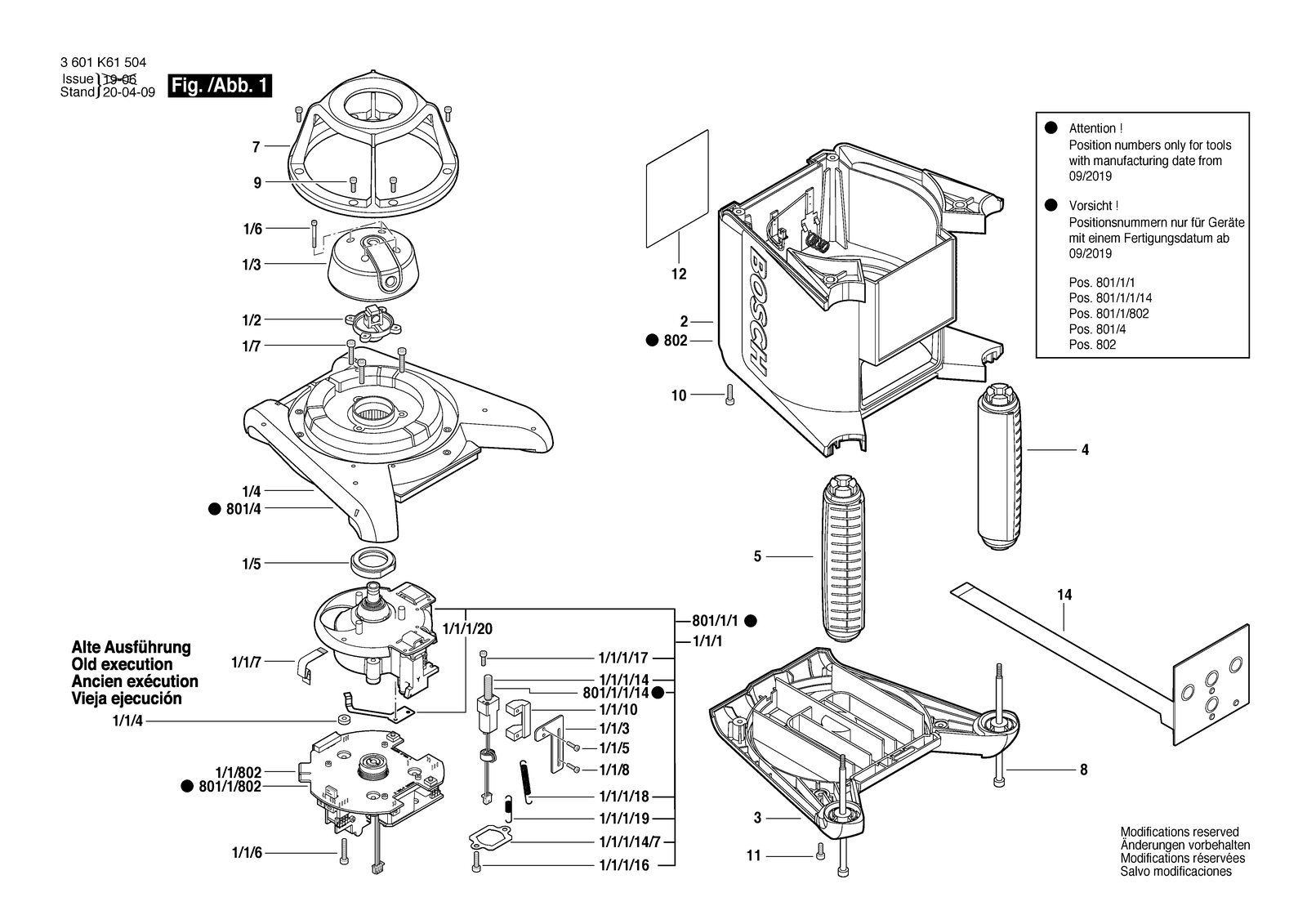

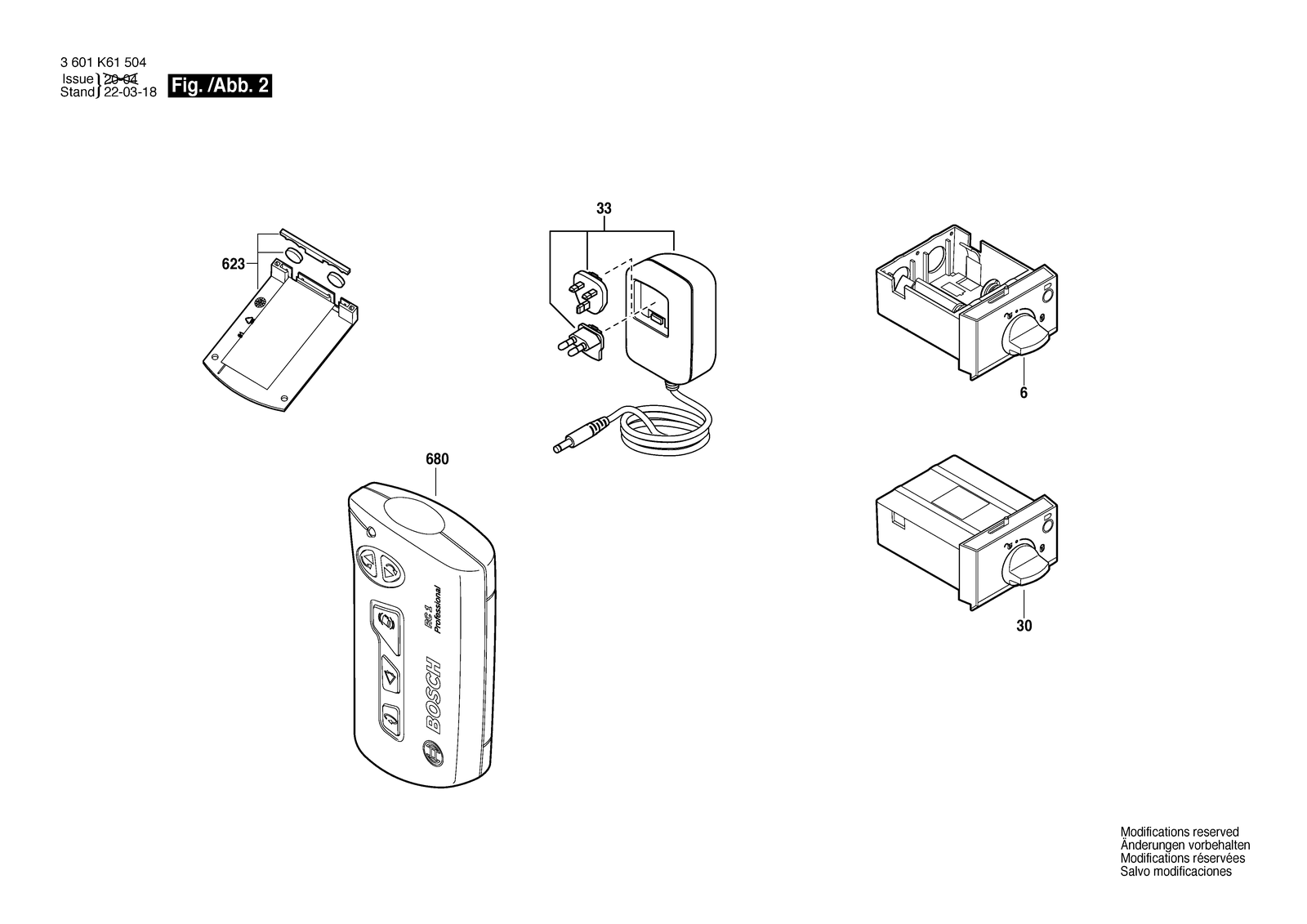

All parts of Bosch GRL 300 HV: 129 positions on 2 sheets
Bosch GRL 300 HV parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1/1/1 | 16051082MP | Motor Housing |
| 1/1/1 | 16051082MP | Motor Housing |
| 1/1/1 | 16051082MP | Motor Housing |
| 1/1/1/14 | 2610A13249 | Motor-gearbox assembly |
| 1/1/1/14 | 2610A13249 | Motor-gearbox assembly |
| 1/1/1/14 | 2610A13249 | Motor-gearbox assembly |
| 1/1/1/14/7 | 2610A12302 | Motor Plate |
| 1/1/1/14/7 | 2610A12302 | Motor Plate |
| 1/1/1/14/7 | 2610A12302 | Motor Plate |
| 1/1/1/16 | 2610A12301 | Tapping Screw |
| 1/1/1/16 | 2610A12301 | Tapping Screw |
| 1/1/1/16 | 2610A12301 | Tapping Screw |
| 1/1/1/17 | 2610A12275 | Hex Socket Head Cap Screw |
| 1/1/1/17 | 2610A12275 | Hex Socket Head Cap Screw |
| 1/1/1/17 | 2610A12275 | Hex Socket Head Cap Screw |
| 1/1/1/18 | 2610A12283 | Extension Spring |
| 1/1/1/18 | 2610A12283 | Extension Spring |
| 1/1/1/18 | 2610A12283 | Extension Spring |
| 1/1/1/19 | 2610A13065 | Extension Spring |
| 1/1/1/19 | 2610A13065 | Extension Spring |
| 1/1/1/19 | 2610A13065 | Extension Spring |
| 1/1/1/20 | 2610A14394 | Brake Spring |
| 1/1/1/20 | 2610A14394 | Brake Spring |
| 1/1/1/20 | 2610A14394 | Brake Spring |
| 1/1/10 | 2610A13399 | Limit Switch |
| 1/1/10 | 2610A13399 | Limit Switch |
| 1/1/10 | 2610A13399 | Limit Switch |
| 1/1/3 | 2610A13397 | Limit Switch |
| 1/1/3 | 2610A13397 | Limit Switch |
| 1/1/3 | 2610A13397 | Limit Switch |
| 1/1/4 | 2610A12269 | Special Washer |
| 1/1/4 | 2610A12269 | Special Washer |
| 1/1/4 | 2610A12269 | Special Washer |
| 1/1/5 | 2610A12272 | Hex Socket Head Cap Screw |
| 1/1/5 | 2610A12272 | Hex Socket Head Cap Screw |
| 1/1/5 | 2610A12272 | Hex Socket Head Cap Screw |
| 1/1/6 | 2610A12284 | Hex Socket Head Cap Screw |
| 1/1/6 | 2610A12284 | Hex Socket Head Cap Screw |
| 1/1/6 | 2610A12284 | Hex Socket Head Cap Screw |
| 1/1/7 | 2610A12359 | Flexible Pcb |
| 1/1/7 | 2610A12359 | Flexible Pcb |
| 1/1/7 | 2610A12359 | Flexible Pcb |
| 1/1/8 | 2610A12301 | Tapping Screw |
| 1/1/8 | 2610A12301 | Tapping Screw |
| 1/1/8 | 2610A12301 | Tapping Screw |
| 1/1/802 | 1600A01NM0 | Leveling element |
| 1/1/802 | 1600A01NX6 | Leveling element |
| 1/1/802 | 1600A01NM4 | Leveling element |
| 1/2 | 2610A12298 | Lens mount |
| 1/2 | 2610A12298 | Lens mount |
| 1/2 | 2610A13995 | Lens mount |
| 1/3 | 2610A14624 | Rotating Beacon |
| 1/3 | 2610A14624 | Rotating Beacon |
| 1/3 | 2610A14947 | Rotating Beacon |
| 1/4 | 2610A12340 | Housing Assembly |
| 1/4 | 2610A12340 | Housing Assembly |
| 1/4 | 2610A12340 | Housing Assembly |
| 1/5 | 2610A15789 | Ball sleeve |
| 1/5 | 2610A15789 | Ball sleeve |
| 1/5 | 2610A15789 | Ball sleeve |
| 1/6 | 2610A12362 | Hex Socket Head Cap Screw |
| 1/6 | 2610A12362 | Hex Socket Head Cap Screw |
| 1/6 | 2610A12362 | Hex Socket Head Cap Screw |
| 1/7 | 2610A12284 | Hex Socket Head Cap Screw |
| 1/7 | 2610A12284 | Hex Socket Head Cap Screw |
| 1/7 | 2610A12284 | Hex Socket Head Cap Screw |
| 10 | 2610A12459 | Hex Socket Head Cap Screw |
| 10 | 2610A12459 | Hex Socket Head Cap Screw |
| 10 | 2610A12459 | Hex Socket Head Cap Screw |
| 11 | 2610A12460 | Hex Socket Head Cap Screw |
| 11 | 2610A12460 | Hex Socket Head Cap Screw |
| 11 | 2610A12460 | Hex Socket Head Cap Screw |
| 12 | 2609135940 | Nameplate |
| 12 | 2609135941 | Nameplate |
| 12 | 2609135942 | Nameplate |
| 14 | 2610A13403 | Keyboard |
| 14 | 2610A13404 | Keyboard |
| 14 | 2610A13406 | Keyboard |
| 2 | 2610A14450 | Housing |
| 2 | 2610A14450 | Housing |
| 2 | 2610A14450 | Housing |
| 3 | 2610A12957 | Housing |
| 3 | 2610A12957 | Housing |
| 3 | 2610A12957 | Housing |
| 30 | 2610A15308 | Battery Pack |
| 30 | 2610A15308 | Battery Pack |
| 30 | 2610A15308 | Battery Pack |
| 33 | 2610A15290 | Battery Charger |
| 33 | 2610A15290 | Battery Charger |
| 33 | 2610A15290 | Battery Charger |
| 4 | 2610A12464 | Handle |
| 4 | 2610A12464 | Handle |
| 4 | 2610A12464 | Handle |
| 5 | 2610A12309 | Handle |
| 5 | 2610A12309 | Handle |
| 5 | 2610A12309 | Handle |
| 6 | 2610A12327 | Battery box assembly |
| 6 | 2610A12327 | Battery box assembly |
| 6 | 2610A12327 | Battery box assembly |
| 623 | 2610A01267 | Target |
| 623 | 2610A01267 | Target |
| 623 | 2610A07083 | Target |
| 680 | 1607000EC7 | Remote Control Unit |
| 680 | 1617S00W3M | Remote Control |
| 680 | 1607000EC7 | Remote Control Unit |
| 7 | 2610A12311 | Cage |
| 7 | 2610A13313 | Cage |
| 7 | 2610A12311 | Cage |
| 8 | 2610A12310 | Threaded Bolt |
| 8 | 2610A12310 | Threaded Bolt |
| 8 | 2610A12310 | Threaded Bolt |
| 801/1/1 | 16099221BA | Motor Housing |
| 801/1/1 | 2610A12237 | Motor Housing |
| 801/1/1 | 16099221BA | Motor Housing |
| 801/1/1/14 | 1600A01R7V | Motor-gearbox assembly |
| 801/1/1/14 | 1600A01R7V | Motor-gearbox assembly |
| 801/1/1/14 | 1600A01R7V | Motor-gearbox assembly |
| 801/1/802 | 1600A020P5 | Leveling element |
| 801/1/802 | 1600A020PE | Leveling element |
| 801/1/802 | 1600A020PM | Leveling element |
| 801/4 | 1600A01R7U | Assembly |
| 801/4 | 1600A01R7U | Assembly |
| 801/4 | 1600A01R7U | Assembly |
| 802 | 1600A01R89 | Housing |
| 802 | 1600A01R89 | Housing |
| 802 | 1600A01R89 | Housing |
| 9 | 2610A12348 | Hex Socket Head Cap Screw |
| 9 | 2610A12348 | Hex Socket Head Cap Screw |
| 9 | 2610A12348 | Hex Socket Head Cap Screw |
