Bosch GRL 240 HVCK
Bosch GRL 240 HVCK laser level: exploded parts diagram, 2 sheets, 37 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

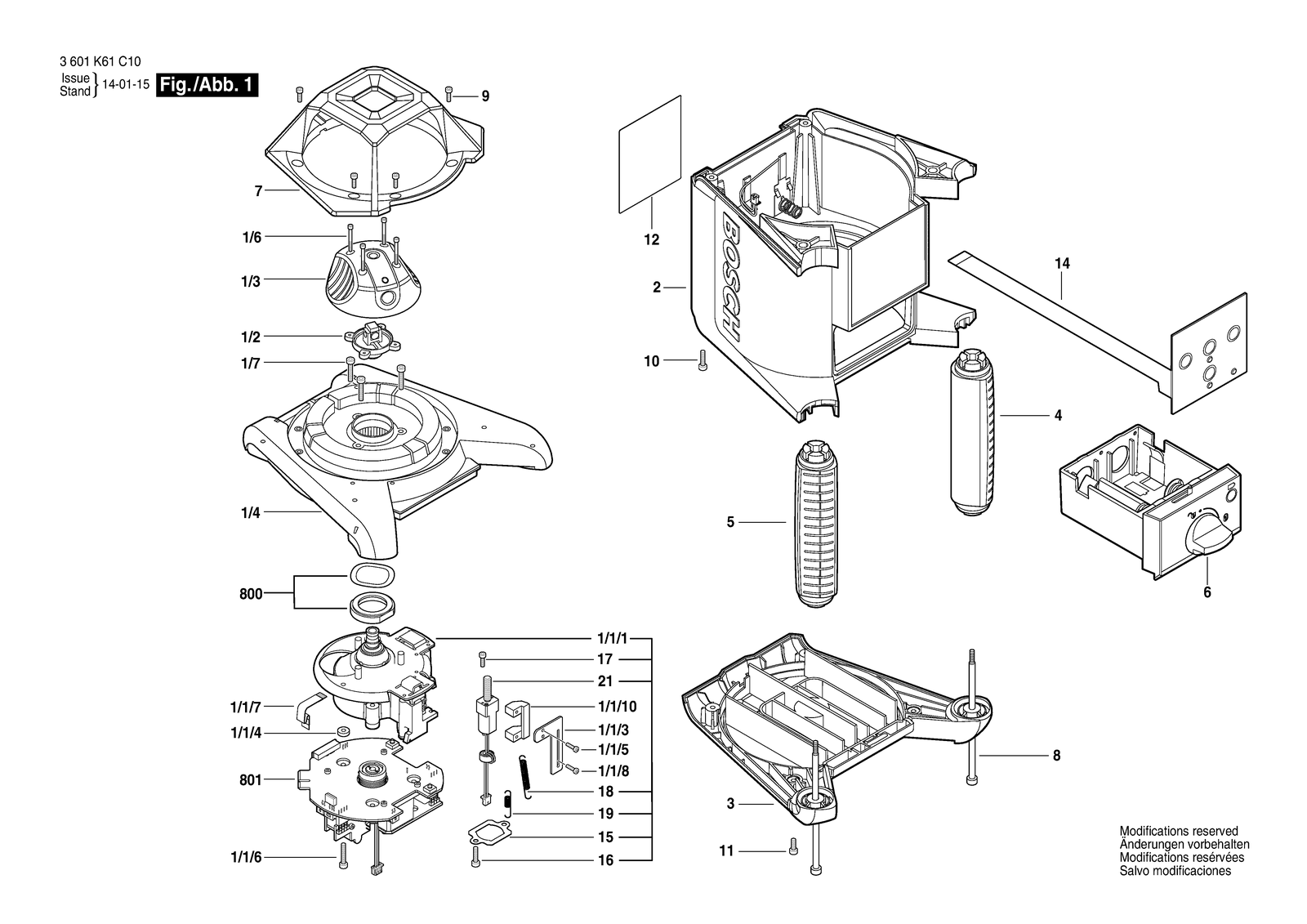

All parts of Bosch GRL 240 HVCK: 37 positions on 2 sheets
Bosch GRL 240 HVCK parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1/1/1 | 16051082MS | Motor Housing |
| 1/1/10 | 2610A13399 | Limit Switch |
| 1/1/3 | 2610A13397 | Limit Switch |
| 1/1/4 | 2610A12269 | Special Washer |
| 1/1/5 | 2610A12272 | Hex Socket Head Cap Screw |
| 1/1/6 | 2610A12284 | Hex Socket Head Cap Screw |
| 1/1/7 | 2610A12359 | Flexible Pcb |
| 1/1/8 | 2610A12301 | Tapping Screw |
| 1/2 | 2610A12298 | Lens mount |
| 1/3 | 2610A16066 | Rotating Beacon |
| 1/4 | 2610A16060 | Upper Housing |
| 1/6 | 2610A12362 | Hex Socket Head Cap Screw |
| 1/7 | 2610A12284 | Hex Socket Head Cap Screw |
| 10 | 2610A12459 | Hex Socket Head Cap Screw |
| 11 | 2610A12460 | Hex Socket Head Cap Screw |
| 12 | 2610A16062 | Nameplate |
| 14 | 2610A16063 | Control Panel |
| 15 | 2610A12302 | Motor Plate |
| 16 | 2610A12301 | Tapping Screw |
| 17 | 2610A12275 | Hex Socket Head Cap Screw |
| 18 | 2610A12283 | Extension Spring |
| 19 | 2610A13065 | Extension Spring |
| 2 | 2610A14450 | Housing |
| 21 | 2610A13249 | Motor-gearbox assembly |
| 3 | 2610A12957 | Housing |
| 4 | 2610A16057 | Handle |
| 5 | 2610A16056 | Handle |
| 6 | 2610A16069 | Battery box assembly |
| 7 | 2610A16054 | Cage |
| 8 | 2610A12310 | Threaded Bolt |
| 800 | 2610A16051 | Ball sleeve |
| 801 | 2610A16750 | Leveling element |
| 802 | 2610A16659 | Laser detector |
| 804 | 2610A16660 | Clamp Bracket |
| 805 | 2610A16661 | Mounting Bracket |
| 824 | 2610A07677 | Battery Cover |
| 9 | 2610A12348 | Hex Socket Head Cap Screw |
