Bosch GRL 2000-40 HVK

Bosch GRL 2000-40 HVK laser level: exploded parts diagram, 2 sheets, 40 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GRL 2000-40 HVK: 40 positions on 2 sheets

Bosch GRL 2000-40 HVK parts list (2 sheets)

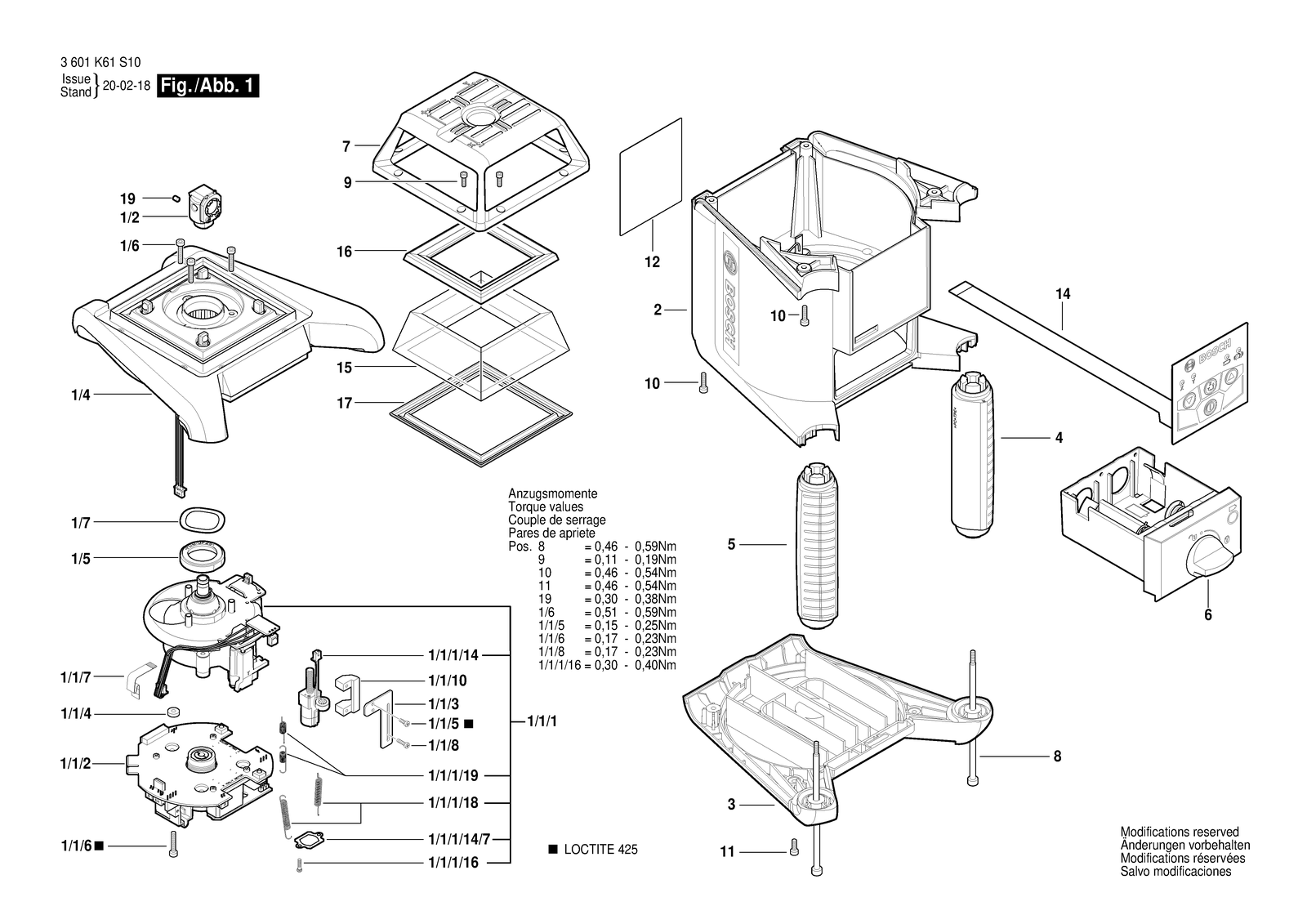

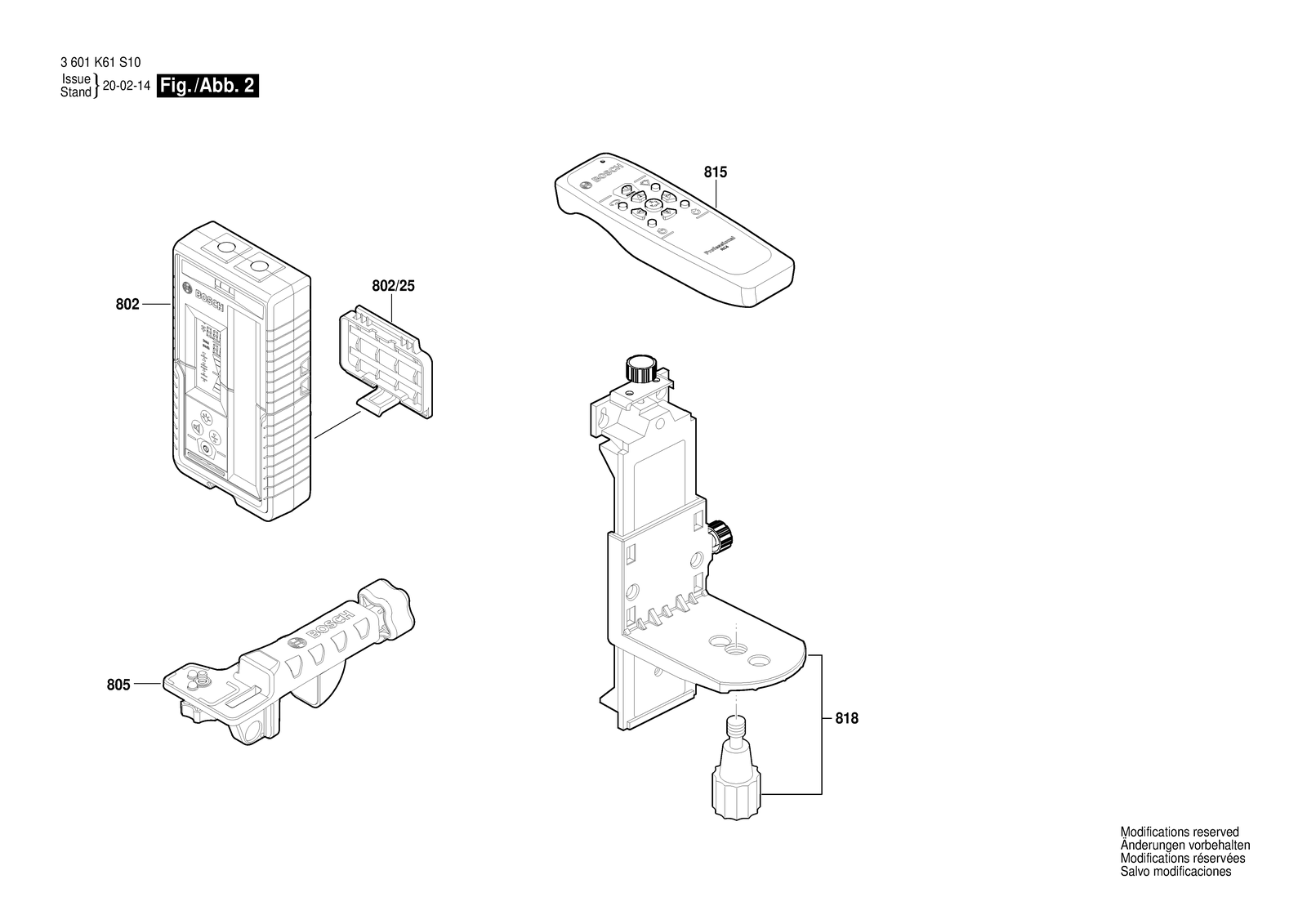

Bosch GRL 2000-40 HVK parts diagram, sheet 1Bosch GRL 2000-40 HVK parts diagram, sheet 2
No.Part numberPart name
1/1/116099221BAMotor Housing
1/1/1/142610A13249Motor-gearbox assembly
1/1/1/14/72610A12302Motor Plate
1/1/1/162610A12301Tapping Screw
1/1/1/182610A12283Extension Spring
1/1/1/192610A13065Extension Spring
1/1/102610A13399Limit Switch
1/1/216099221EMAssembly
1/1/32610A13397Limit Switch
1/1/42610A12269Special Washer
1/1/52610A12272Hex Socket Head Cap Screw
1/1/62610A12284Hex Socket Head Cap Screw
1/1/72610A12359Flexible Pcb
1/1/82610A12301Tapping Screw
1/216099221JGPrism support
1/416099221EPAssembly
1/52610A15789Ball sleeve
1/62610A12284Hex Socket Head Cap Screw
1/72610A14200Wave spring
102610A12459Hex Socket Head Cap Screw
112610A12460Hex Socket Head Cap Screw
12160111A5X1Nameplate
141600A019FRKeyboard
152610A06622Window
162610A13364Rubber Gasket
172610A13365Rubber Gasket
192610A12270Set screw
216099221F7Housing
32610A12957Housing
42610A12464Handle
52610A12309Handle
62610A12327Battery box assembly
716099221EXCage
82610A12310Threaded Bolt
80216099221KRLaser detector
802/252609101735Battery Cover
8051600A00FD1Clamp Bracket
81516099221KYRemote Control
81816099221EYMounting Bracket
92610A12348Hex Socket Head Cap Screw
