Bosch GRL 1000-20HV

Bosch GRL 1000-20HV laser level: exploded parts diagram, 2 sheets, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GRL 1000-20HV: 49 positions on 2 sheets

Bosch GRL 1000-20HV parts list (2 sheets)

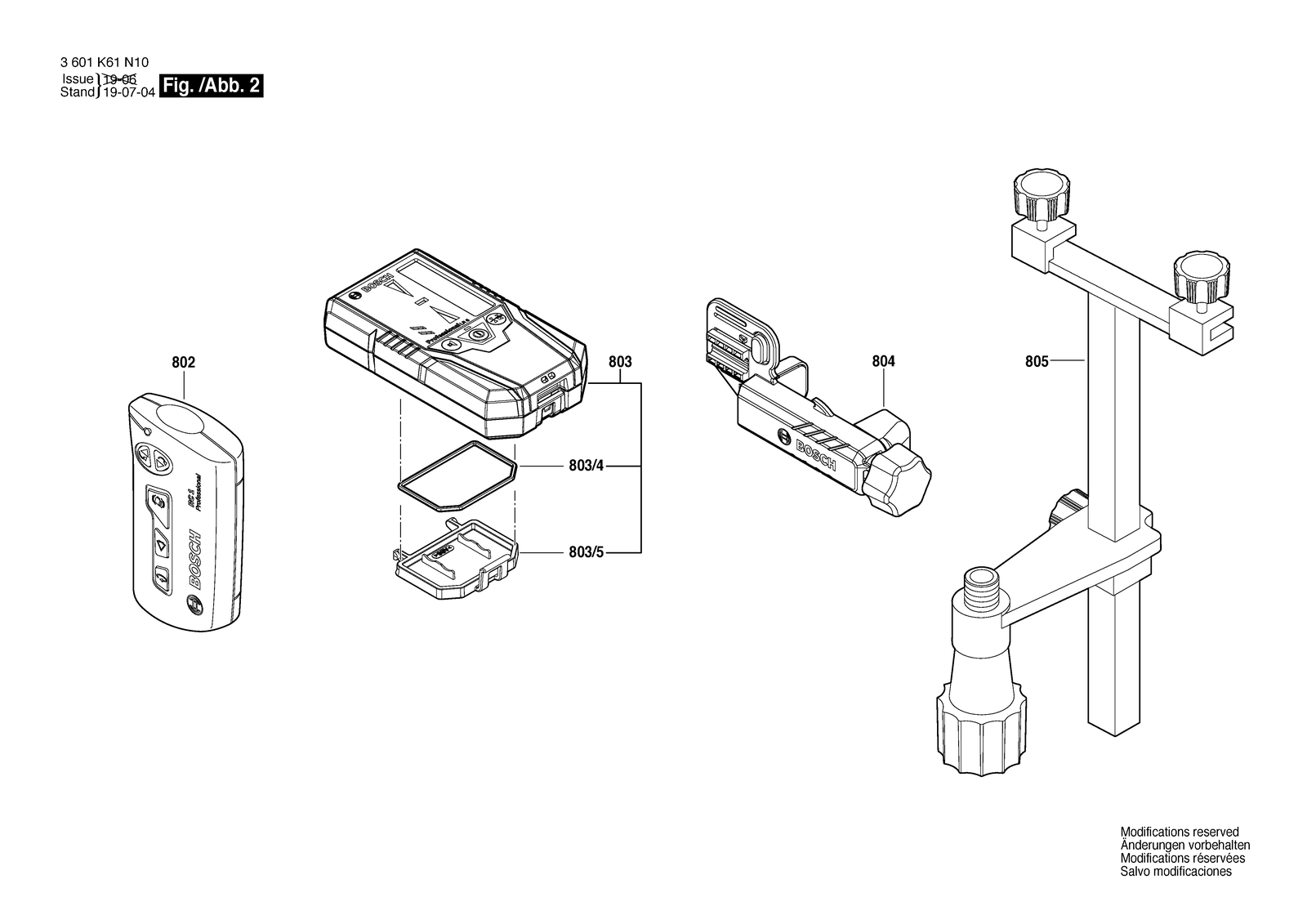

Bosch GRL 1000-20HV parts diagram, sheet 1Bosch GRL 1000-20HV parts diagram, sheet 2
No.Part numberPart name
1/1/116051082MPMotor Housing
1/1/1/142610A13249Motor-gearbox assembly
1/1/1/14/72610A12302Motor Plate
1/1/1/162610A12301Tapping Screw
1/1/1/172610A12275Hex Socket Head Cap Screw
1/1/1/182610A12283Extension Spring
1/1/1/192610A13065Extension Spring
1/1/1/202610A14394Brake Spring
1/1/102610A13399Limit Switch
1/1/32610A13397Limit Switch
1/1/52610A12272Hex Socket Head Cap Screw
1/1/62610A12284Hex Socket Head Cap Screw
1/1/72610A12359Flexible Pcb
1/1/82610A12301Tapping Screw
1/22610A12298Lens mount
1/32610A16066Rotating Beacon
1/42610A12340Housing Assembly
1/52610A15789Ball sleeve
1/62610A12362Hex Socket Head Cap Screw
1/72610A12284Hex Socket Head Cap Screw
102610A12459Hex Socket Head Cap Screw
112610A12460Hex Socket Head Cap Screw
12160111A5DJNameplate
12160111A5DMNameplate
141600A013XMKeyboard
141600A013XPKeyboard
22610A14450Housing
32610A12957Housing
42610A12464Handle
52610A12309Handle
62610A12327Battery box assembly
6232610A01267Target
71600A013XFCage
82610A12310Threaded Bolt
8011600A01NL8Leveling element
8011600A01NL9Leveling element
8021617S00W3MRemote Control
8031600A01D0XService kit
803/41618C0121CHousing Seal Ring
803/51618C0114UBattery Cover
8041618C0118CMounting Clamp
8052610A16661Mounting Bracket
8071600A020P3Leveling element
8071600A020P4Leveling element
810/1/116099221BAMotor Housing
810/1/1/141600A01R7VMotor-gearbox assembly
810/41600A01R7UAssembly
8201600A01R89Housing
92610A12348Hex Socket Head Cap Screw
