Bosch GRA 36V-53 P
Bosch GRA 36V-53 P lawnmower: exploded parts diagram, 2 sheets, 248 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GRA 36V-53 P: 248 positions on 2 sheets

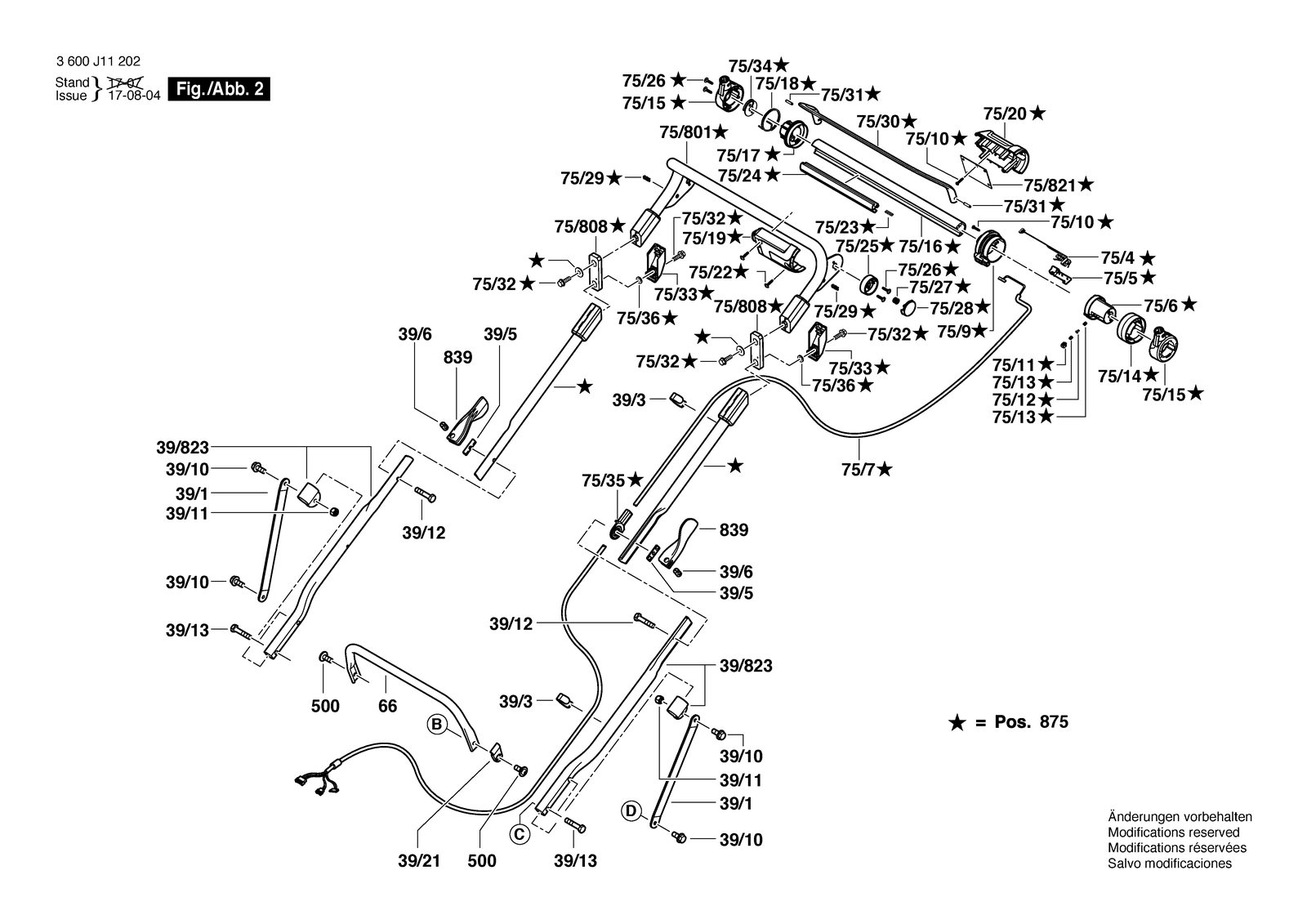

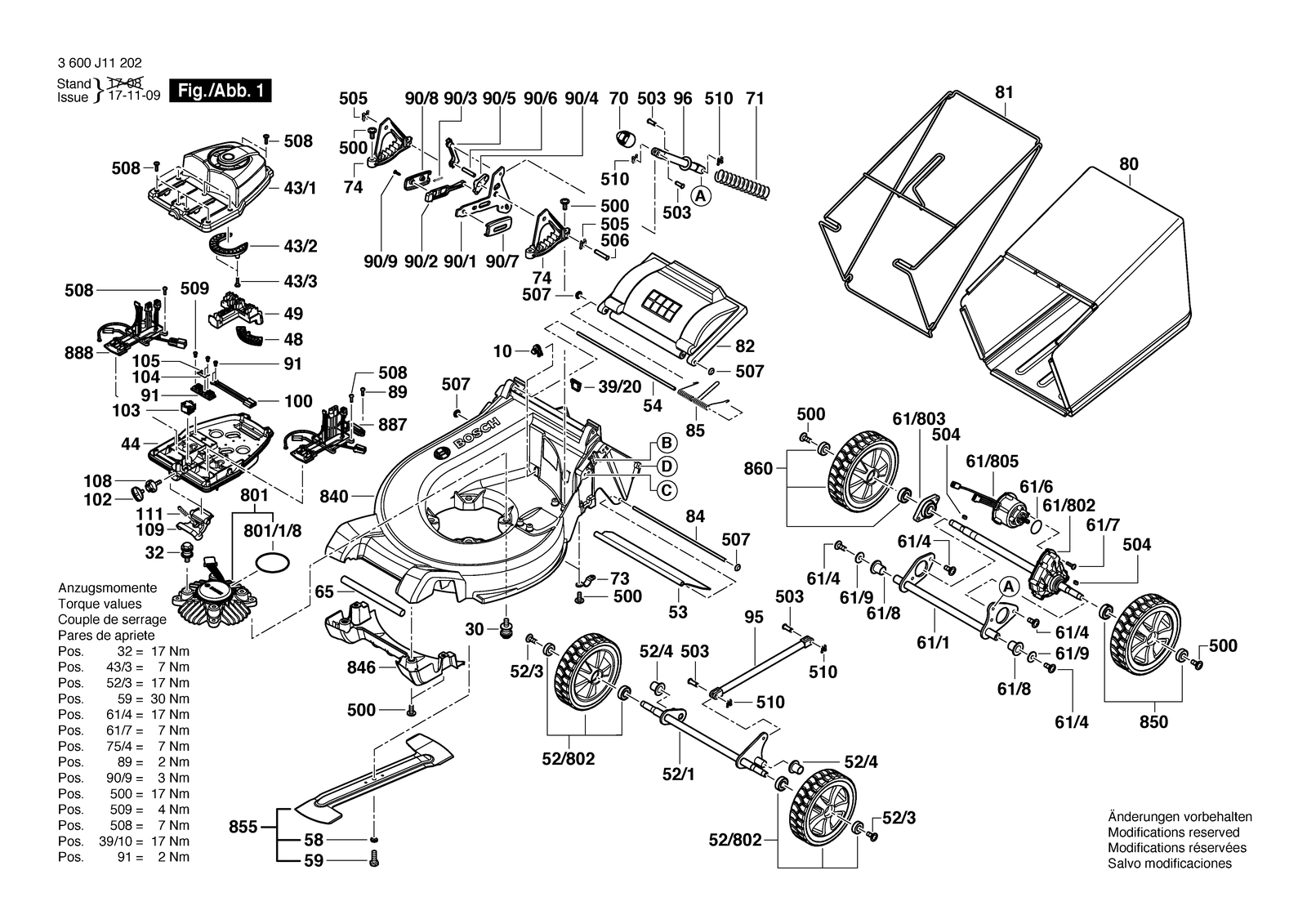

Bosch GRA 36V-53 P parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 10 | F016L76343 | Grommet |
| 10 | F016L76343 | Grommet |
| 100 | F016L76086 | Connecting Cable |
| 100 | F016L76086 | Connecting Cable |
| 102 | F016L76146 | Switch Key |
| 102 | F016L76146 | Switch Key |
| 103 | F016L66928 | Switch |
| 103 | F016L66928 | Switch |
| 104 | F016L76185 | Coupling Plate |
| 104 | F016L76185 | Coupling Plate |
| 105 | F016L76473 | Coupling Plate |
| 105 | F016L76473 | Coupling Plate |
| 108 | F016L76180 | Cam |
| 108 | F016L76180 | Cam |
| 109 | F016L76027 | Trigger |
| 109 | F016L76027 | Trigger |
| 111 | F016L76028 | Spring |
| 111 | F016L76028 | Spring |
| 30 | F016L76018 | Damping Bushing |
| 30 | F016L76018 | Damping Bushing |
| 32 | F016L76017 | Hex Screw M10X20 |
| 32 | F016L76017 | Hex Screw M10X20 |
| 39/1 | F016L76263 | Angle Support |
| 39/1 | F016L76263 | Angle Support |
| 39/10 | F016L76294 | Hex Screw |
| 39/10 | F016L76294 | Hex Screw |
| 39/11 | F016L76293 | Lock Nut |
| 39/11 | F016L76293 | Lock Nut |
| 39/12 | F016L76158 | Bolt |
| 39/12 | F016L76158 | Bolt |
| 39/13 | F016L76990 | Bolt |
| 39/13 | F016L76990 | Bolt |
| 39/20 | F016L76344 | Clamp |
| 39/20 | F016L76344 | Clamp |
| 39/21 | F016L76345 | Cable Guide |
| 39/21 | F016L76345 | Cable Guide |
| 39/3 | F016L76160 | Cable Clip |
| 39/3 | F016L76160 | Cable Clip |
| 39/5 | F016L76189 | Insert |
| 39/5 | F016L76189 | Insert |
| 39/6 | F016L76159 | Pivot |
| 39/6 | F016L76159 | Pivot |
| 39/823 | F016105042 | Handle |
| 39/823 | F016105042 | Handle |
| 43/1 | F016L77579 | Motor cover |
| 43/1 | F016L77579 | Motor cover |
| 43/2 | F016L76273 | Axial flow fan |
| 43/2 | F016L76273 | Axial flow fan |
| 43/3 | F016L76058 | Screw M5X20 |
| 43/3 | F016L76058 | Screw M5X20 |
| 44 | F016L76274 | Housing Base |
| 44 | F016L76274 | Housing Base |
| 48 | F016L76186 | Sealing Rubber |
| 48 | F016L76186 | Sealing Rubber |
| 49 | F016L76291 | Cable Bracket |
| 49 | F016L76291 | Cable Bracket |
| 500 | F016L76173 | Screw M8X20 |
| 500 | F016L76173 | Screw M8X20 |
| 503 | F016L76100 | Clevis |
| 503 | F016L76100 | Clevis |
| 504 | F016L76091 | Key |
| 504 | F016L76091 | Key |
| 505 | F016L76099 | Clevis |
| 505 | F016L76099 | Clevis |
| 506 | F016L76099 | Clevis |
| 506 | F016L76099 | Clevis |
| 507 | F016T48990 | Securing Cap Black Ø8 MM |
| 507 | F016T48990 | Securing Cap Black Ø8 MM |
| 508 | F016L76058 | Screw M5X20 |
| 508 | F016L76058 | Screw M5X20 |
| 509 | F016L76188 | Screw |
| 509 | F016L76188 | Screw |
| 510 | F016L68664 | Retaining clip |
| 510 | F016L68664 | Retaining clip |
| 52/1 | F016L76280 | Axle |
| 52/1 | F016L76280 | Axle |
| 52/3 | F016L76173 | Screw M8X20 |
| 52/3 | F016L76173 | Screw M8X20 |
| 52/4 | F016L76044 | Bushing |
| 52/4 | F016L76044 | Bushing |
| 52/802 | F016104466 | Wheel |
| 52/802 | F016104466 | Wheel |
| 53 | F016L76089 | Flap |
| 53 | F016L76089 | Flap |
| 54 | F016L76090 | Infeed spindle |
| 54 | F016L76090 | Infeed spindle |
| 58 | F016L66173 | Spring Washer 1/2" |
| 58 | F016L66173 | Spring Washer 1/2" |
| 59 | F016L66141 | Bolt M10X30 |
| 59 | F016L66141 | Bolt M10X30 |
| 61/1 | F016L76281 | Axle |
| 61/1 | F016L76281 | Axle |
| 61/4 | F016L76173 | Screw M8X20 |
| 61/4 | F016L76173 | Screw M8X20 |
| 61/6 | F016L76082 | O-Ring |
| 61/6 | F016L76082 | O-Ring |
| 61/7 | F016L76058 | Screw M5X20 |
| 61/7 | F016L76058 | Screw M5X20 |
| 61/8 | F016L76044 | Bushing |
| 61/8 | F016L76044 | Bushing |
| 61/802 | F016104472 | Drive Unit |
| 61/802 | F016104472 | Drive Unit |
| 61/803 | F016104560 | Bearing Housing |
| 61/803 | F016104560 | Bearing Housing |
| 61/805 | F016104473 | DC motor |
| 61/805 | F016104473 | DC motor |
| 61/9 | F016L76332 | Washer |
| 61/9 | F016L76332 | Washer |
| 65 | F016L76279 | Carrying Handle |
| 65 | F016L76279 | Carrying Handle |
| 66 | F016L76265 | Handle |
| 66 | F016L76265 | Handle |
| 70 | F016L76178 | Sleeve |
| 70 | F016L76178 | Sleeve |
| 71 | F016L76087 | Spring |
| 71 | F016L76087 | Spring |
| 73 | F016L76088 | Clamping Piece |
| 73 | F016L76088 | Clamping Piece |
| 74 | F016L76272 | Base-Insert |
| 74 | F016L76272 | Base-Insert |
| 75/10 | F016L67706 | Screw M4X20 Plastic |
| 75/10 | F016L67706 | Screw M4X20 Plastic |
| 75/11 | F016L76122 | Housing |
| 75/11 | F016L76122 | Housing |
| 75/12 | F016L76121 | Switch Actuator |
| 75/12 | F016L76121 | Switch Actuator |
| 75/13 | F016L76125 | Spring |
| 75/13 | F016L76125 | Spring |
| 75/14 | F016L77852 | Pivot |
| 75/14 | F016L77852 | Pivot |
| 75/15 | F016L76141 | Pivot |
| 75/15 | F016L76141 | Pivot |
| 75/16 | F016L76114 | Throttle Carrier |
| 75/16 | F016L76114 | Throttle Carrier |
| 75/17 | F016L76132 | Bushing |
| 75/17 | F016L76132 | Bushing |
| 75/18 | F016L76138 | Spring |
| 75/18 | F016L76138 | Spring |
| 75/19 | F016L77853 | Casing |
| 75/19 | F016L77853 | Casing |
| 75/20 | F016L77705 | Casing |
| 75/20 | F016L77705 | Casing |
| 75/22 | F016L76187 | Screw M5X20 Plastic |
| 75/22 | F016L76187 | Screw M5X20 Plastic |
| 75/23 | F016L76130 | Spring |
| 75/23 | F016L76130 | Spring |
| 75/24 | F016L77381 | Blank Cover |
| 75/24 | F016L77381 | Blank Cover |
| 75/25 | F016L76143 | Knob sleeve |
| 75/25 | F016L76143 | Knob sleeve |
| 75/26 | F016L76058 | Screw M5X20 |
| 75/26 | F016L76058 | Screw M5X20 |
| 75/27 | F016L76144 | Spring |
| 75/27 | F016L76144 | Spring |
| 75/28 | F016L76145 | Switch Button |
| 75/28 | F016L76145 | Switch Button |
| 75/29 | F016L77855 | Cable Clip |
| 75/29 | F016L77855 | Cable Clip |
| 75/30 | F016L76267 | Control Bar |
| 75/30 | F016L76267 | Control Bar |
| 75/31 | F016L76481 | Coiled Spring Pin |
| 75/31 | F016L76481 | Coiled Spring Pin |
| 75/32 | F016L77382 | Bolt |
| 75/32 | F016L77382 | Bolt |
| 75/33 | F016L77856 | Cover |
| 75/33 | F016L77856 | Cover |
| 75/34 | F016L77871 | Cable Cover |
| 75/34 | F016L77871 | Cable Cover |
| 75/35 | F016L76346 | Cable Sleeve |
| 75/35 | F016L76346 | Cable Sleeve |
| 75/36 | F016L77865 | Washer |
| 75/36 | F016L77865 | Washer |
| 75/4 | F016L77394 | Wiring Harness |
| 75/4 | F016L77394 | Wiring Harness |
| 75/5 | F016L77851 | Switch Holder |
| 75/5 | F016L77851 | Switch Holder |
| 75/6 | F016L77850 | Switch Holder |
| 75/6 | F016L77850 | Switch Holder |
| 75/7 | F016L77844 | Wiring Harness |
| 75/7 | F016L77844 | Wiring Harness |
| 75/801 | F016105058 | Handle top assembly |
| 75/801 | F016105058 | Handle top assembly |
| 75/808 | F016104959 | Cable Clip |
| 75/808 | F016104959 | Cable Clip |
| 75/821 | F016104960 | Electronics Module |
| 75/821 | F016104960 | Electronics Module |
| 75/9 | F016L76126 | Potentiometer Housing |
| 75/9 | F016L76126 | Potentiometer Housing |
| 80 | F016L77585 | Collection box |
| 80 | F016L77585 | Collection box |
| 801 | F016104471 | DC motor 36V |
| 801 | F016104471 | DC motor 36V |
| 801/1/8 | F016L76214 | O-Ring |
| 801/1/8 | F016L76214 | O-Ring |
| 81 | F016L76151 | Frame Profile |
| 81 | F016L76151 | Frame Profile |
| 82 | F016L77582 | Flap Guard |
| 82 | F016L77582 | Flap Guard |
| 839 | F016105059 | Adjusting Cam |
| 839 | F016105059 | Adjusting Cam |
| 84 | F016L76106 | Infeed spindle |
| 84 | F016L76106 | Infeed spindle |
| 840 | F016105056 | Chassis Green 53 CM |
| 840 | F016105056 | Chassis Green 53 CM |
| 840 | F016105057 | Chassis Green 48 CM |
| 846 | F016105060 | Closing Plate |
| 846 | F016105060 | Closing Plate |
| 85 | F016L76107 | Spring |
| 85 | F016L76107 | Spring |
| 850 | F016104467 | Wheel |
| 850 | F016104467 | Wheel |
| 855 | F016105116 | Cutter Blade 53 CM |
| 855 | F016105116 | Cutter Blade 53 CM |
| 855 | F016105117 | Cutter Blade 45 CM |
| 860 | F016104468 | Wheel |
| 860 | F016104468 | Wheel |
| 875 | F016105119 | Handle top assembly |
| 875 | F016105118 | Handle top assembly |
| 887 | F016105120 | Drive electronics |
| 887 | F016105120 | Drive electronics |
| 888 | F016105121 | Drive electronics |
| 888 | F016105121 | Drive electronics |
| 89 | F016L76402 | Screw M3X10 |
| 89 | F016L76402 | Screw M3X10 |
| 90/1 | F016L76271 | Adjusting Lever |
| 90/1 | F016L76271 | Adjusting Lever |
| 90/2 | F016L76094 | Button |
| 90/2 | F016L76094 | Button |
| 90/3 | F016L76095 | Spring |
| 90/3 | F016L76095 | Spring |
| 90/4 | F016L76096 | Linkage |
| 90/4 | F016L76096 | Linkage |
| 90/5 | F016L76097 | Slider |
| 90/5 | F016L76097 | Slider |
| 90/6 | F016L76098 | Locking Pin |
| 90/6 | F016L76098 | Locking Pin |
| 90/7 | F016L76102 | Palm Grip |
| 90/7 | F016L76102 | Palm Grip |
| 90/8 | F016L76190 | Palm Grip |
| 90/8 | F016L76190 | Palm Grip |
| 90/9 | F016L76187 | Screw M5X20 Plastic |
| 90/9 | F016L76187 | Screw M5X20 Plastic |
| 91 | F016L76166 | Diode Module |
| 91 | F016L76166 | Diode Module |
| 95 | F016L76270 | Linkage |
| 95 | F016L76270 | Linkage |
| 96 | F016L76277 | Linkage |
| 96 | F016L76277 | Linkage |
