Bosch GRA 18V2-46
Bosch GRA 18V2-46 lawnmower: exploded parts diagram, 3 sheets, 61 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

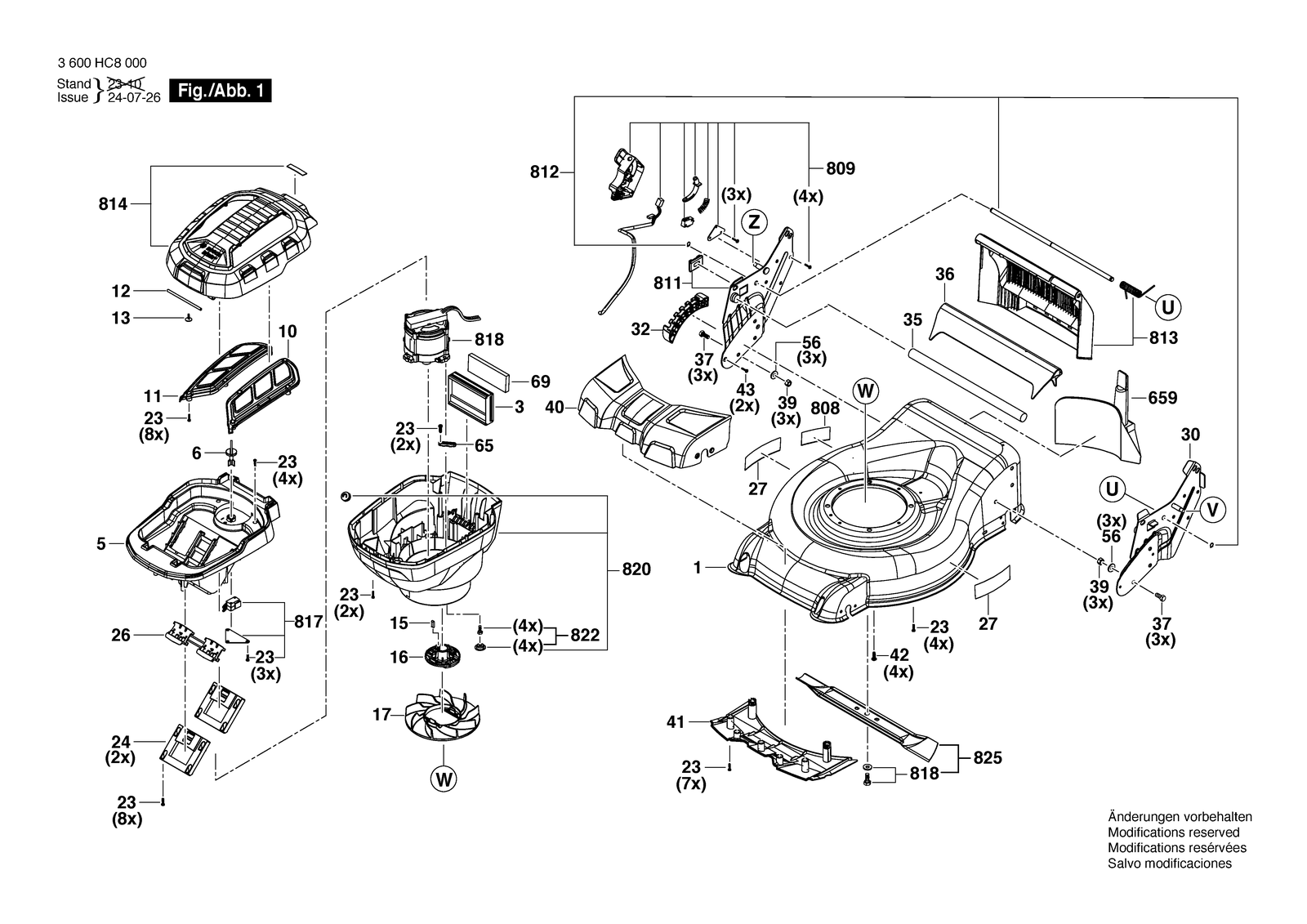

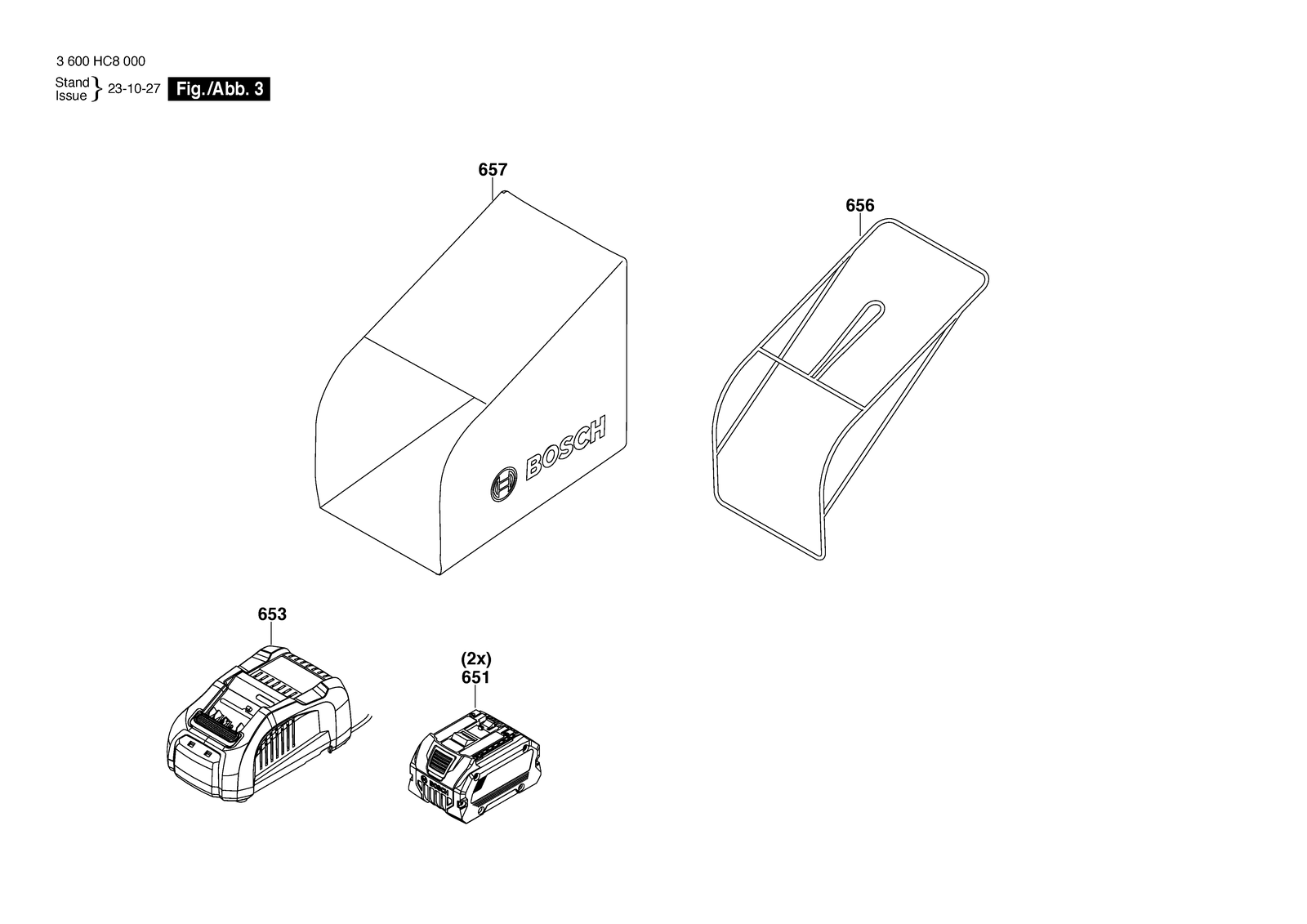

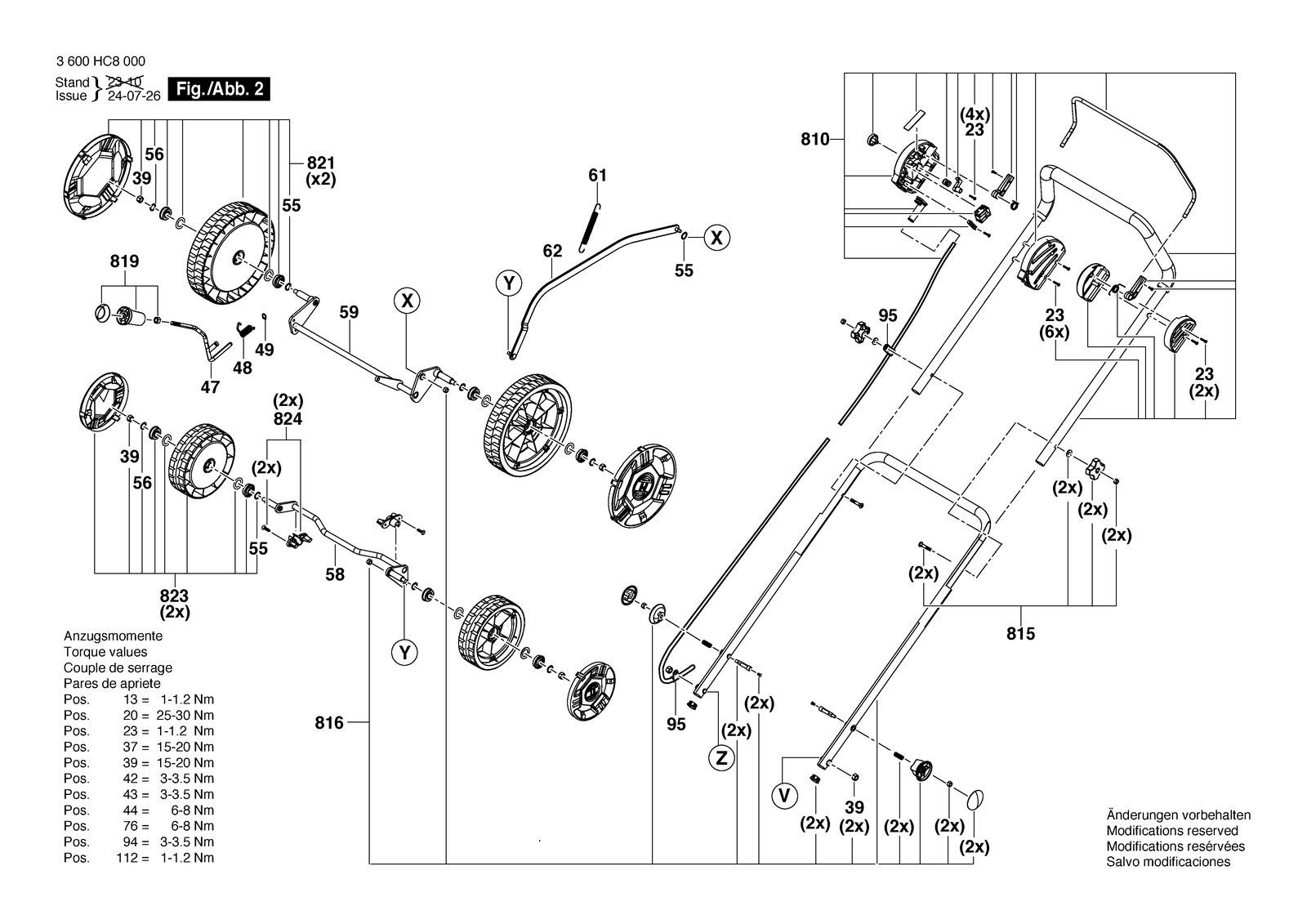

All parts of Bosch GRA 18V2-46: 61 positions on 3 sheets
Bosch GRA 18V2-46 parts list (3 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1600A02T2C | Mower deck |
| 10 | 1600A02R3S | Battery Cover |
| 11 | 1600A02R3T | Battery Cover |
| 12 | 1600A02T2E | Shaft |
| 13 | 1600A02T7P | Screw and washer assembly |
| 15 | 1600A02T2G | Latch |
| 16 | 1600A02T2H | Adaptor plate |
| 17 | 1600A02T2J | Fan |
| 23 | 16034300CE | Screw |
| 24 | 1600A02T2N | Retaining Element |
| 26 | 1600A030L9 | Contact retainer |
| 27 | 1600A02Z4B | Label |
| 3 | 1600A02T2D | Electronic Assembly |
| 30 | 1600A02T2P | Support Plate |
| 32 | 1600A02T2T | Height gage |
| 35 | 1600A02T2V | Carrying Handle |
| 36 | 1600A02T2W | Plastic covering |
| 37 | 16034350AJ | Hex Screw |
| 39 | 1600A02T7R | Hex Nut |
| 40 | 1600A02R3Y | Front cover |
| 41 | 1600A02T2X | Comb |
| 42 | 16034300CH | Screw |
| 43 | 16034300CK | Screw |
| 47 | 1600A03225 | Lever |
| 48 | 1600A03226 | Spring |
| 49 | 160015004J | Spring retaining ring |
| 5 | 1600A02R3U | Battery support |
| 55 | 160015004E | Spring Washer |
| 56 | 1600A031C6 | Plain Washer |
| 58 | 1600A02T31 | Shaft |
| 59 | 1600A02T32 | Shaft |
| 6 | 1600A02YF4 | Key |
| 61 | 1600A02T35 | Extension Spring |
| 62 | 1600A02T36 | Linkage part |
| 65 | 1600A031C7 | Guide |
| 651 | 1607A350LR | Battery Pack GBA 18V 5.5 Ah XL Procore Scm |
| 653 | 2607225921 | Charger EU GAL 1880 CV 230/14,4-18V |
| 653 | 2607225923 | Charger GB 230/10,8-18V, 30 42 S |
| 656 | 1600A02TX6 | Frame |
| 657 | 1600A02TX5 | Collection bag |
| 659 | 1600A02R3X | Deflector Plate |
| 69 | 1600A02TU6 | Supporting Foam |
| 808 | F016F06189 | Nameplate |
| 809 | F016F06190 | Switch Assembly |
| 810 | F016F06191 | Set Of Handles |
| 811 | F016F06192 | Support Plate |
| 812 | F016F06193 | Shaft |
| 813 | F016F06194 | Guard Flap |
| 814 | F016F06195 | Battery Cover |
| 815 | F016F06196 | Wing Nut |
| 816 | F016F06197 | Set Of Handles |
| 817 | F016F06198 | Switch Assembly |
| 818 | F016F06199 | DC motor |
| 819 | F016F06200 | Knob |
| 820 | F016F06201 | Battery Housing |
| 821 | F016F06202 | Wheel |
| 822 | F016F06203 | Screw |
| 823 | F016F06204 | Wheel |
| 824 | F016F06205 | Fixing Element |
| 825 | F016F06206 | Blade |
| 95 | 1600A0323C | Cable Clip |
