Bosch GR.65

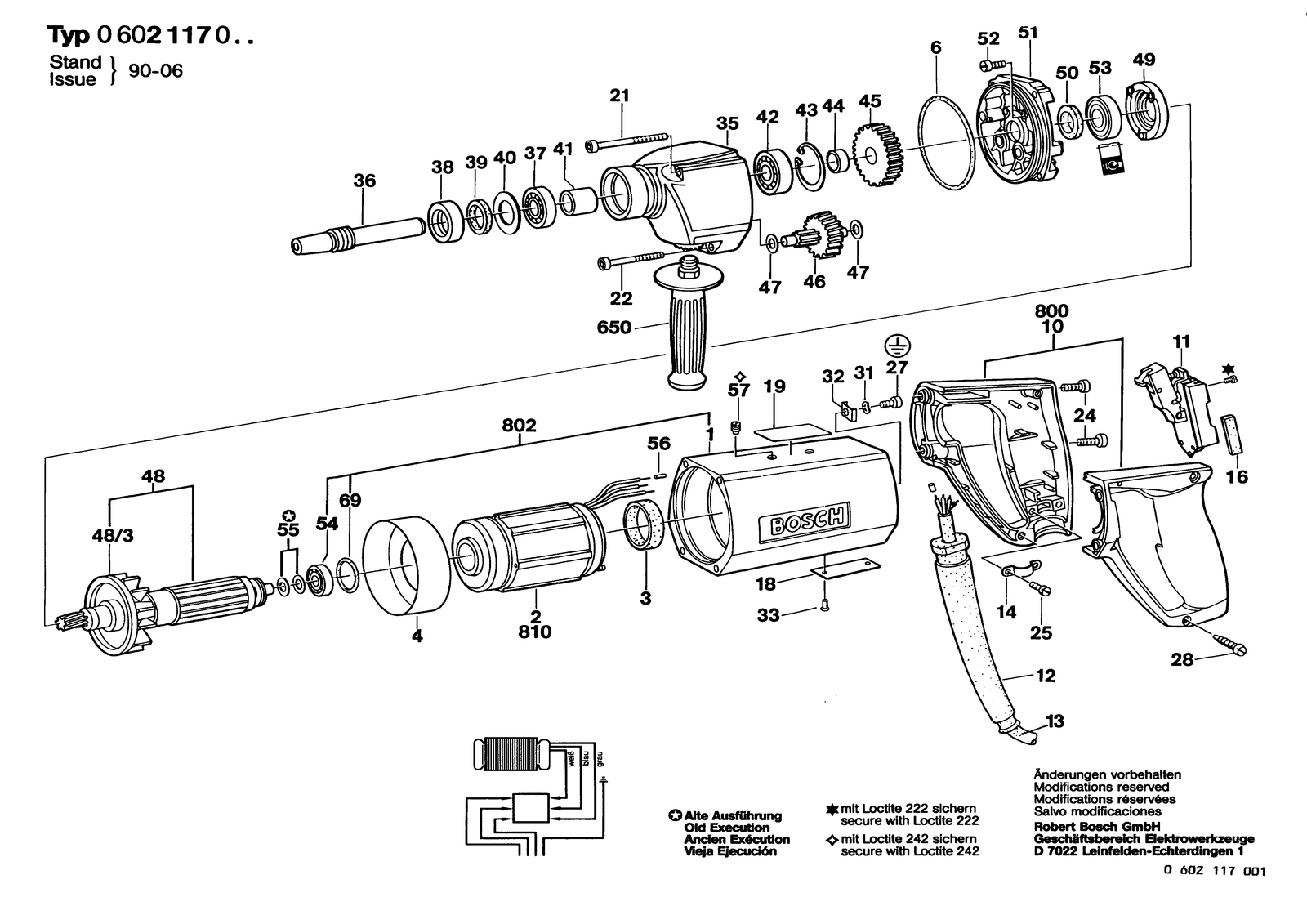

Bosch GR.65 drill: exploded parts diagram, 1 sheet, 53 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GR.65: 53 positions on 1 sheet
Bosch GR.65 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1607200038 | Switch |
| 12 | 1600703009 | Grommet Ø11,5-Ø15,0X150 MM |
| 13 | 1604421012 | Cable |
| 13 | 3607030231 | Assembly Of Service Parts |
| 14 | 1601303003 | Fastening Clamp |
| 16 | 1602381001 | Insulating Strip 33X10X6 MM |
| 18 | 3601106053 | Nameplate |
| 21 | 2910141176 | Hex Socket Head Cap Screw DIN 912-M5X55-8.8 |
| 22 | 2910141172 | Hex Socket Head Cap Screw DIN 912-M5X45-8.8 |
| 24 | 2910141158 | Hex Socket Head Cap Screw DIN 912-M5X16-8.8 |
| 25 | 2910021116 | Socket head cap screw DIN 84-AM4X6-8.8 |
| 27 | 2910110122 | Pan head screw DIN 85-MS-M 4X12 |
| 28 | 2910211020 | Tapping Screw DIN 7971-BZ3,9X19 |
| 3 | 1600209006 | Seal Ring |
| 31 | 3600150006 | Spring Washer Ø4,2 MM |
| 32 | 3601321001 | Clamping Saddle |
| 33 | 3603133001 | Grooved Nail DIN 1476-2X5 MM |
| 35 | 3605806116 | Spindle Bearing |
| 36 | 1603124039 | Drilling Spindle |
| 37 | 1900900201 | Groove ball bearing 15X32X8 |
| 38 | 3607030355 | Retaining snap ring |
| 39 | 1600108000 | Sealing disk |
| 4 | 1600209003 | Air-Deflector Ring |
| 40 | 1600102003 | Shim Thick 0,5 MM |
| 41 | 1600300026 | Spacer Bushing |
| 42 | 1900900303 | Groove ball bearing 15X35X11 |
| 43 | 2916660014 | Spring retaining ring DIN 472 35X1,5 MM |
| 44 | 1600300027 | Spacer Bushing |
| 45 | 1606317047 | Cylindrical Gear Z=44 |
| 46 | 1606328051 | Spindle With Gear Z=9/29 |
| 47 | 1600100631 | Shim Thick 0,5 MM |
| 48 | 3604080057 | Rotor Without Winding |
| 48/3 | 3606610010 | Fan |
| 49 | 1600501025 | Conical Spring Washer |
| 50 | 1600108030 | Sealing disk |
| 51 | 3605820056 | Bearing Flange |
| 52 | 2910021125 | Socket head cap screw DIN 84-AM4X15-8.8 |
| 53 | 1900905121 | Groove ball bearing 12X28X8 |
| 54 | 1610900025 | Groove ball bearing 7X22X7 |
| 56 | 3604477008 | End Splice |
| 57 | 1603402002 | Set screw |
| 6 | 1600210005 | O-Ring 66,0X3,0 MM |
| 650 | 160202509Z | Auxiliary Handle |
| 650 | 16020250A1 | Auxiliary Handle |
| 69 | 3600210016 | O-Ring 22,0X1,5 MM |
| 800 | 3605133011 | Handle Blue |
| 802 | 3605102040 | Motor Housing |
| 810 | 1604229088 | Stator 265V/200HZ |
| 810 | 1604229089 | Stator 200V/300HZ |
| 810 | 1604229090 | Stator 72V/200HZ,110V/300HZ |
| 810 | 1604229091 | Stator 72V/300HZ |
| 810 | 1604229094 | Stator 220V/360HZ |
| 810 | 1604229155 | Stator 42V/200HZ |
