Bosch GPO 950
Bosch GPO 950 universal angle polisher: exploded parts diagram, 1 sheet, 42 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

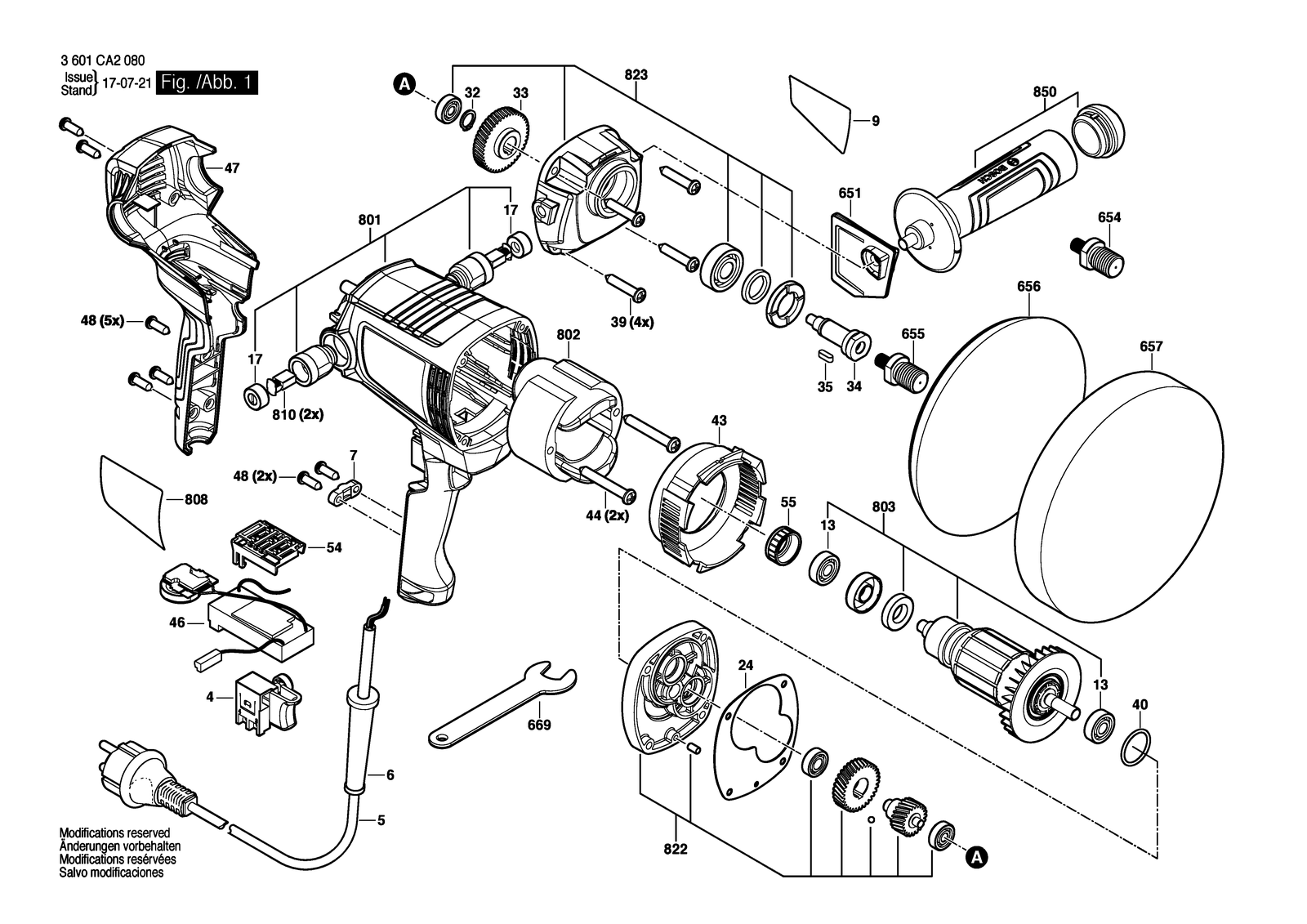

All parts of Bosch GPO 950: 42 positions on 1 sheet
Bosch GPO 950 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 13 | 1619PB1751 | Ball Bearing |
| 17 | 1619PB1753 | Brush-Cover |
| 24 | 1619PB1756 | Seal |
| 32 | 1619PB1763 | Retaining ring |
| 33 | 1619PB1764 | Gear |
| 34 | 1619PB1765 | Grinding Spindle |
| 35 | 1619PB1766 | Key |
| 39 | 1619PB1770 | Tapping Screw |
| 4 | 1619PB1744 | Switch |
| 40 | 1619PB1771 | O-Ring |
| 43 | 1619PB1774 | Air-Deflector Ring |
| 44 | 1619PB1775 | Tapping Screw |
| 46 | 16072335EL | Speed governor |
| 47 | 1619PB1778 | Housing Cover |
| 48 | 1619PB1779 | Tapping Screw |
| 5 | 160446078T | Power supply cord |
| 5 | 1619PB1745 | Power supply cord |
| 5 | 1619PB1935 | Power supply cord |
| 5 | 1619PB1936 | Power supply cord |
| 54 | 1619PB1952 | Mounting Bracket |
| 55 | 1619PB1953 | Intermediate Ring |
| 6 | 1619PB1746 | Grommet |
| 651 | 1619PB1947 | Guard Plate |
| 654 | 1619PB1950 | Adapter Insert |
| 655 | 1619PB1951 | Adapter Insert |
| 656 | 1619PB1954 | Supporting Disc |
| 657 | 1619PB1966 | Polishing Sponge |
| 669 | 1619PB1967 | Assembly Wrench |
| 7 | 1619PB1747 | Fastening Clamp |
| 801 | 1619PB1968 | Housing Assembly |
| 802 | 1619PB1969 | Field |
| 803 | 1619PB1970 | Armature |
| 808 | 1619PB2281 | Nameplate |
| 808 | 1619PB2282 | Nameplate |
| 808 | 1619PB2283 | Nameplate |
| 808 | 1619PB2284 | Nameplate |
| 808 | 1619PB2285 | Nameplate |
| 810 | 1619PB1971 | Carbon-Brush Set |
| 822 | 1619PB1972 | Bearing cover |
| 823 | 1619PB1973 | Gear Housing |
| 850 | 1619PB1974 | Auxiliary Handle |
| 9 | 1619PB1749 | Manufacturer's nameplate GPO 950 |
