Bosch GPO 12 E

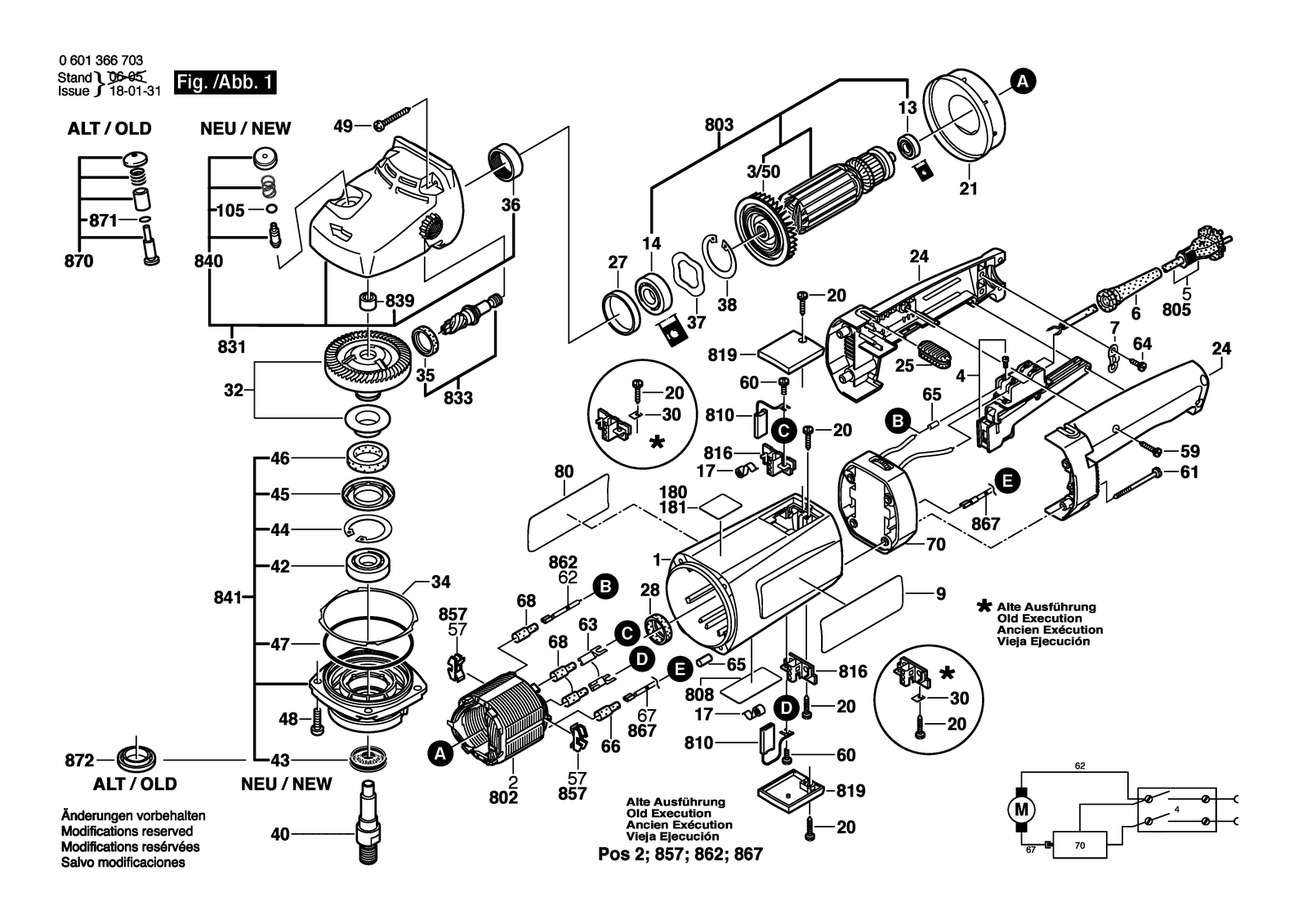

Bosch GPO 12 E universal angle polisher: exploded parts diagram, 2 sheets, 85 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GPO 12 E: 85 positions on 2 sheets
Bosch GPO 12 E parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 3605108129 | Motor Housing Blue |
| 105 | 1600210045 | O-Ring 8,0X1,0 MM |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 3600905131 | Groove ball bearing 9X26X8 |
| 17 | 1604652006 | Spiral Spring |
| 180 | 1611110880 | Warning Plate |
| 181 | 1611110G42 | Reference Plate |
| 2 | 1604220355 | Field 110-120V |
| 20 | 2910211019 | Tapping Screw DIN 7971-ST3,9X16-F |
| 21 | 3600421002 | Air-Deflector Ring |
| 24 | 3605132062 | Handle Black |
| 25 | 1602388029 | Storage Ledge Black |
| 27 | 1600206026 | Intermediate Ring |
| 28 | 1600502011 | Intermediate Ring |
| 3/50 | 1606610126 | Fan |
| 30 | 1601030022 | Tab Washer |
| 32 | 3606333052 | Crown Gear Z=59 |
| 34 | 1600190020 | Shim Thick 0,15 MM |
| 34 | 1600190021 | Shim Thick 0,3 MM |
| 34 | 1600190022 | Shim Thick 0,1 MM |
| 34 | 1600190037 | Shim Thick 0,2 MM |
| 35 | 3600290039 | Seal Ring |
| 36 | 3600200026 | Threaded Ring |
| 37 | 1600150026 | Spring Washer |
| 38 | 1600119009 | Spring retaining ring |
| 4 | 1607200080 | Switch |
| 40 | 1603523100 | Grinding Spindle M14, SW17 |
| 42 | 3600905134 | Groove ball bearing |
| 43 | 1600290036 | Seal Ring Black |
| 44 | 1600119010 | Spring retaining ring |
| 45 | 1600290019 | Retaining snap ring |
| 46 | 1600205034 | Felt Washer |
| 47 | 1600210033 | O-Ring 79,0X1,78 MM |
| 48 | 1603435076 | Thread-forming tap. Screw |
| 49 | 2912401038 | Tapping Screw DIN 7981-4,8X38-C-Z-ST |
| 5 | 1604460032 | Power supply cord AUS 2,65M 2 X 1,0MM Pvc |
| 5 | 1604460144 | Power supply cord GB 230V 4,15M 2 X 1,0MM H07 Rn-F |
| 5 | 1604460201 | Power supply cord GB 110V 4,15M 2 X 1,5MM H07 Rn-F |
| 5 | 1604460440 | Power supply cord CH 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1614460039 | Power supply cord I 4,15M 2 X 1,0MM H07 Rn-F |
| 57 | 3601025003 | Wire Guide |
| 59 | 2910211021 | Tapping Screw DIN 7971-ST3,9X22-F |
| 6 | 3600703011 | Grommet Ø9,2-Ø12X120 MM |
| 60 | 2910021118 | Socket head cap screw DIN 84-AM4X8-8.8 |
| 61 | 3603435043 | Tapping Screw |
| 62 | 3604438028 | Connecting Cable |
| 63 | 1604477001 | Blade terminal |
| 64 | 2603490021 | Torx Oval-Head Screw 4X12 |
| 65 | 1900452003 | End Splice DIN 46 228-A2,5-7 |
| 650 | 3602025017 | Auxiliary Handle |
| 650/20 | 2603481001 | Knurled Thumbscrew M 14 |
| 651 | 9618089612 | Handle Cover |
| 66 | 3600707022 | Shrinkable Tube |
| 67 | 3604438026 | Connecting Cable |
| 68 | 3600707022 | Shrinkable Tube |
| 7 | 1601302013 | Fastening Clamp |
| 7 | 1601302014 | Fastening Clamp |
| 70 | 3607218002 | Speed governor 110-120V |
| 70 | 3607218003 | Speed governor 220-240V |
| 740 | 1601329013 | Protecting Cover |
| 766 | 2607001190 | Parts Set |
| 80 | 3601110189 | Reference Plate Caution |
| 80 | 3601110408 | Sticker |
| 802 | 3604220135 | Field 220-230V |
| 802 | 3604220136 | Field 240V |
| 802 | 3604220137 | Field 110-120V |
| 803 | 3607031329 | Armature 220-240V |
| 803 | 3607031330 | Armature 110-120V |
| 805 | 1607000227 | Power supply cord EU 4,15M 2 X 1,0MM H07 Rn-F |
| 808 | 160111A3H3 | Nameplate |
| 810 | 3607014012 | Carbon-Brush Set |
| 816 | 3604336012 | Brush Holder |
| 819 | 3605500063 | Sealing cap Blue |
| 831 | 3607000109 | Bearing Flange |
| 833 | 3607000079 | Bevel Gear Z=6 |
| 839 | 2600910001 | Needle-Roller Bearing Ø14 MM |
| 840 | 1607000354 | Push-Button |
| 841 | 3607000108 | Bearing Flange |
| 857 | 3601025003 | Wire Guide |
| 862 | 3604438000 | Connecting Cable Blue L=235 MM |
| 867 | 1604431002 | Connecting Cable |
| 870 | 1607000206 | Push-Button Black |
| 871 | 1600210034 | O-Ring 4,0X1,0 MM |
| 872 | 1600290020 | Seal Ring |
| 9 | 3601110188 | Manufacturer's nameplate |
