Bosch GPO 12 CE

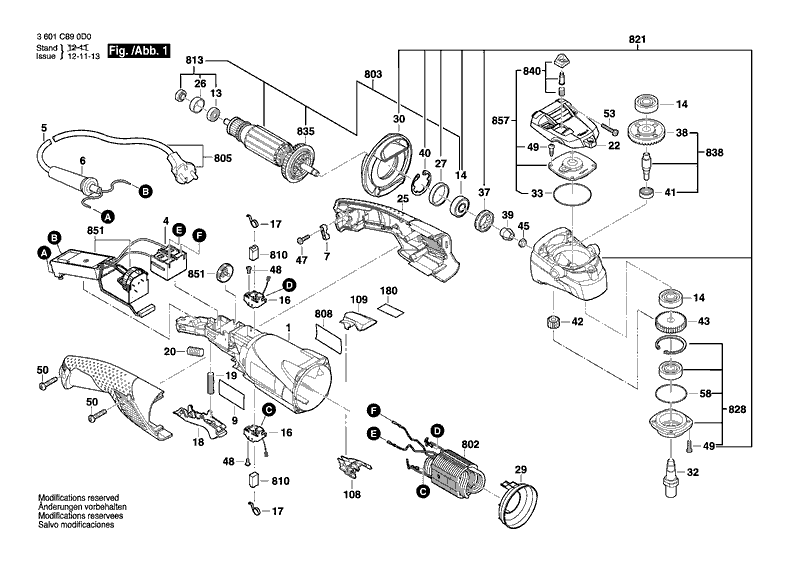

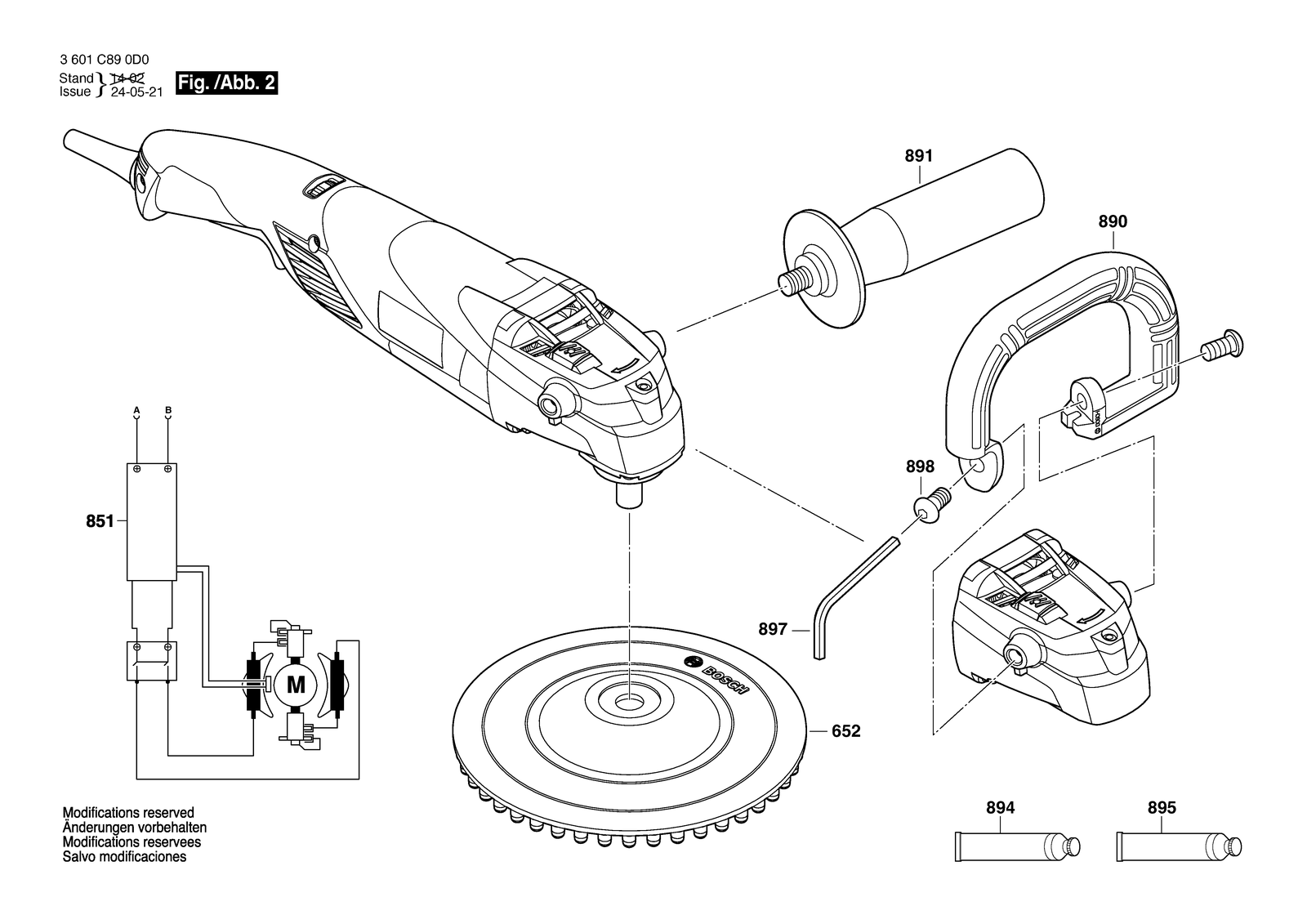

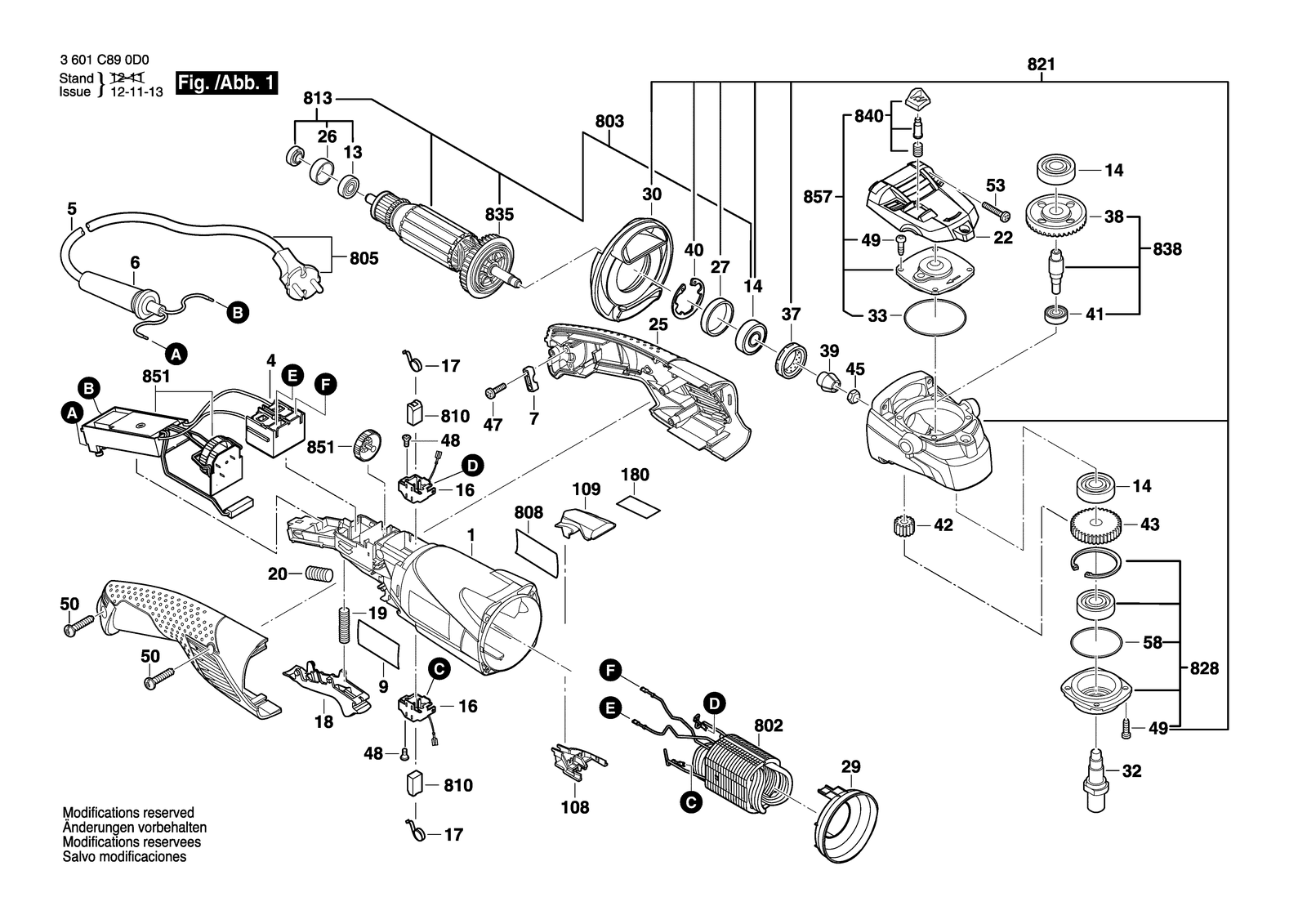

Bosch GPO 12 CE universal angle polisher: exploded parts diagram, 2 sheets, 59 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GPO 12 CE: 59 positions on 2 sheets
Bosch GPO 12 CE parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 1605108255 | Motor Housing Blue |
| 108 | 1619P09759 | Cover |
| 109 | 1605500263 | Cover Black |
| 13 | 2600905032 | Ball Bearing 7X19X6 |
| 14 | 1600905032 | Groove ball bearing 8X22X7 |
| 16 | 1601323023 | Brush Holder With Disconnecting Device |
| 17 | 1604652013 | Spiral Spring |
| 18 | 1602319024 | Adjusting Slide |
| 180 | 1619P09116 | Label |
| 19 | 1604611041 | Compression Spring |
| 20 | 3604611039 | Compression Spring |
| 22 | 1619P07907 | Plastic covering |
| 25 | 1600A01N0J | Handle |
| 26 | 1600206036 | Rubber Ring |
| 27 | 1600206025 | Rubber Ring |
| 29 | 1619P09716 | Air-Deflector Ring |
| 30 | 1600591014 | Air-Deflector Ring |
| 32 | 1619P07906 | Grinding Spindle |
| 33 | 1600210035 | O-Ring 46,0X1,1 MM |
| 37 | 1600290016 | Rotary shaft lip seal |
| 38 | 1619P07918 | Crown Gear |
| 39 | 1619P07919 | Bevel Gear |
| 4 | 1619P09608 | Switch |
| 40 | 1600119011 | Retaining clip |
| 41 | 1619P08829 | Groove ball bearing |
| 42 | 1619P07912 | Cylindrical Gear |
| 43 | 1619P07911 | Cylindrical Gear |
| 45 | 1603300016 | Hex Nut M7, SW10 |
| 47 | 1619P00029 | Screw |
| 48 | 2912401005 | Tapping Screw DIN7981-ST2,9X9,5C-Z |
| 49 | 1619P08825 | Thread-forming tap. Screw |
| 5 | 1604460381 | Power supply cord Usa/can/sma 4,15M 2 X 2X2,08MM SJ 14/2 |
| 5 | 1604460387 | Power supply cord BR 4,15M 2,1MM H07 Rn-F |
| 50 | 1619P00105 | Torx Oval-Head Screw 4X20 |
| 53 | 1619P01066 | Torx Oval-Head Screw 4X25 |
| 58 | 1619P07915 | O-Ring 39,0X1,1 MM |
| 6 | 1600703032 | Grommet Ø8,7-Ø9,5X67 MM |
| 652 | 1619PS0562 | Buffing Disc |
| 7 | 1611035005 | Cable Clip |
| 802 | 1619P09951 | Field 100-127V |
| 803 | 1619P09749 | Armature With Fan 100-127V |
| 808 | 1619P09741 | Nameplate |
| 808 | 1619P09743 | Nameplate |
| 810 | 1607014176 | Carbon-Brush Set |
| 813 | 1607000378 | Parts Set |
| 821 | 1619P09078 | Gear Housing |
| 828 | 1619P09081 | Bearing Flange |
| 835 | 1606610132 | Fan |
| 838 | 1619P09080 | Crown Gear |
| 840 | 1619P09082 | Push button set |
| 851 | 1619P09747 | Speed governor |
| 857 | 1619P09079 | Gear Cover |
| 890 | 1619P07563 | Handle |
| 891 | 160202509T | Auxiliary Handle |
| 894 | 1615430020 | Grease Tube 225 Ml |
| 895 | 1605430003 | Grease Tube 225 Ml |
| 897 | 1619P07612 | Hex Screw Driver |
| 898 | 1619P07611 | Hex Screw |
| 9 | 1619P07981 | Manufacturer's nameplate GPO 12 Ce |
