Bosch GPO 12 universal angle polisher: exploded parts diagram, 1 sheet, 49 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GPO 12: 49 positions on 1 sheet

Bosch GPO 12 parts list (1 sheet)

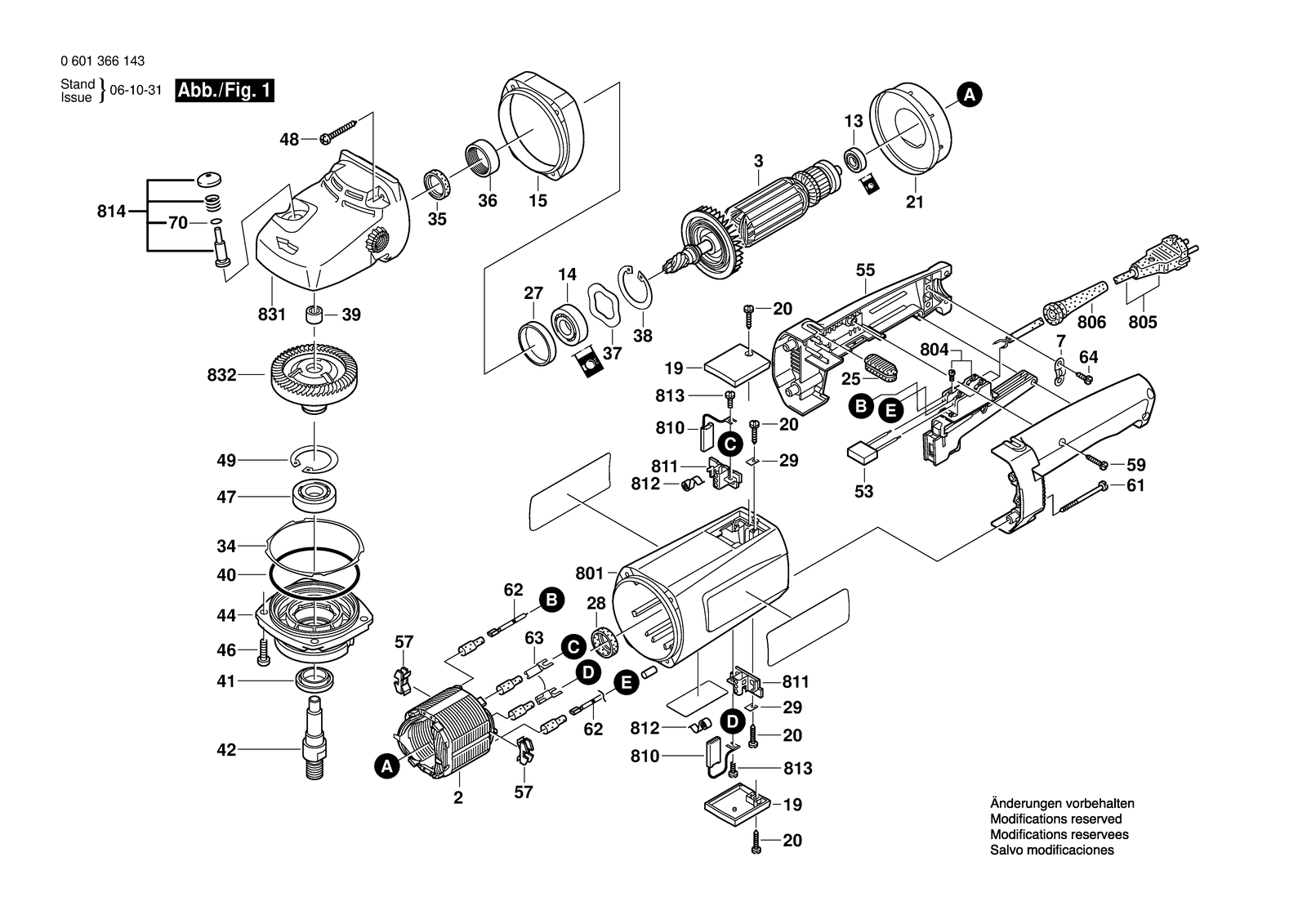

Bosch GPO 12 parts diagram, sheet 1
No.Part numberPart name
131600900024Groove ball bearing DIN 607-2Z-C3
141900905025Ball Bearing 9X26X8
159618086661Intermediate Flange
191605500089Sealing cap Blue
2F000607070Field 220 V
209618087099Screw 4X16 MM
21F000600528Air-Deflector Ring
251602388029Storage Ledge Black
271600206026Intermediate Ring
281600502011Intermediate Ring
291601030022Tab Washer
3F000605106Armature With Fan 220 V
341600190020Shim Thick 0,15 MM
341600190021Shim Thick 0,3 MM
341600190022Shim Thick 0,1 MM
351600290018Rotary shaft lip seal
369618089058Threaded Ring
37F000616014Conical Spring Washer
382916660012Spring retaining ring 30X1,2MM, DIN 472
392600910001Needle-Roller Bearing Ø14 MM
401600210033O-Ring 79,0X1,78 MM
411600290036Seal Ring Black
42F000600150Grinding Spindle
441605805099Bearing Flange
469618086638Screw
473600905134Groove ball bearing
48F000600216Tapping Screw
491600119010Spring retaining ring
53F000600567Roller Container
559618086678Handle
573601025003Wire Guide
599618087100Tapping Screw 4X20 MM
61F000600217Tapping Screw
62F000610024Cable
63F000612021Blade terminal
642910021115Socket head cap screw DIN 84-AM4X5-8.8
71601302013Fastening Clamp
701600210034O-Ring 4,0X1,0 MM
8019618089984Housing
804F000608047Switch
8051619P00057Power supply cord CN 2,65M 2 X 1,00MM H05 Vv-F
8063600703011Grommet Ø9,2-Ø12X120 MM
8109618086921Carbon-Brush Set
8113604336012Brush Holder
8121604652006Spiral Spring
8132910021118Socket head cap screw DIN 84-AM4X8-8.8
8149618086834Pivot Pin
8319618086845Motor Housing
8329618086713Crown Gear
