Bosch GPL 3

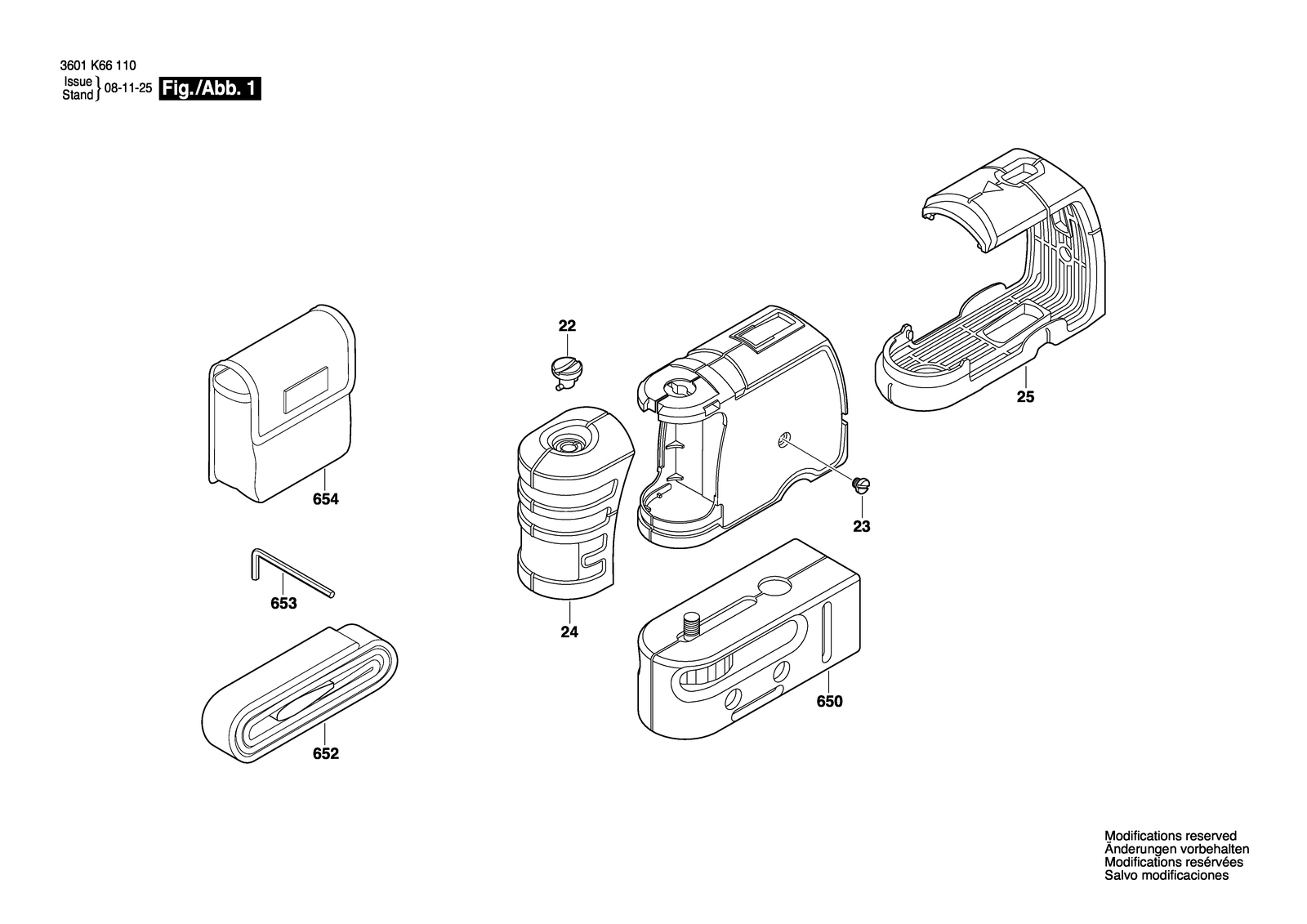

Bosch GPL 3 laser level: exploded parts diagram, 1 sheet, 8 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GPL 3: 8 positions on 1 sheet
Bosch GPL 3 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 22 | 1618C00487 | Screw |
| 23 | 1618C00489 | Plug |
| 24 | 1618C01495 | Battery Cover |
| 25 | 1618C01497 | Gripper |
| 650 | 1618C00465 | Assembly |
| 652 | 1618C00463 | Fibre Strip |
| 653 | 1618C00462 | Hexagon Socket Wrench |
| 654 | 1618C00464 | Pouch |
