Bosch GPH 18V-60

Bosch GPH 18V-60 el. hydr. crimping tool: exploded parts diagram, 1 sheet, 60 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GPH 18V-60: 60 positions on 1 sheet

Bosch GPH 18V-60 parts list (1 sheet)

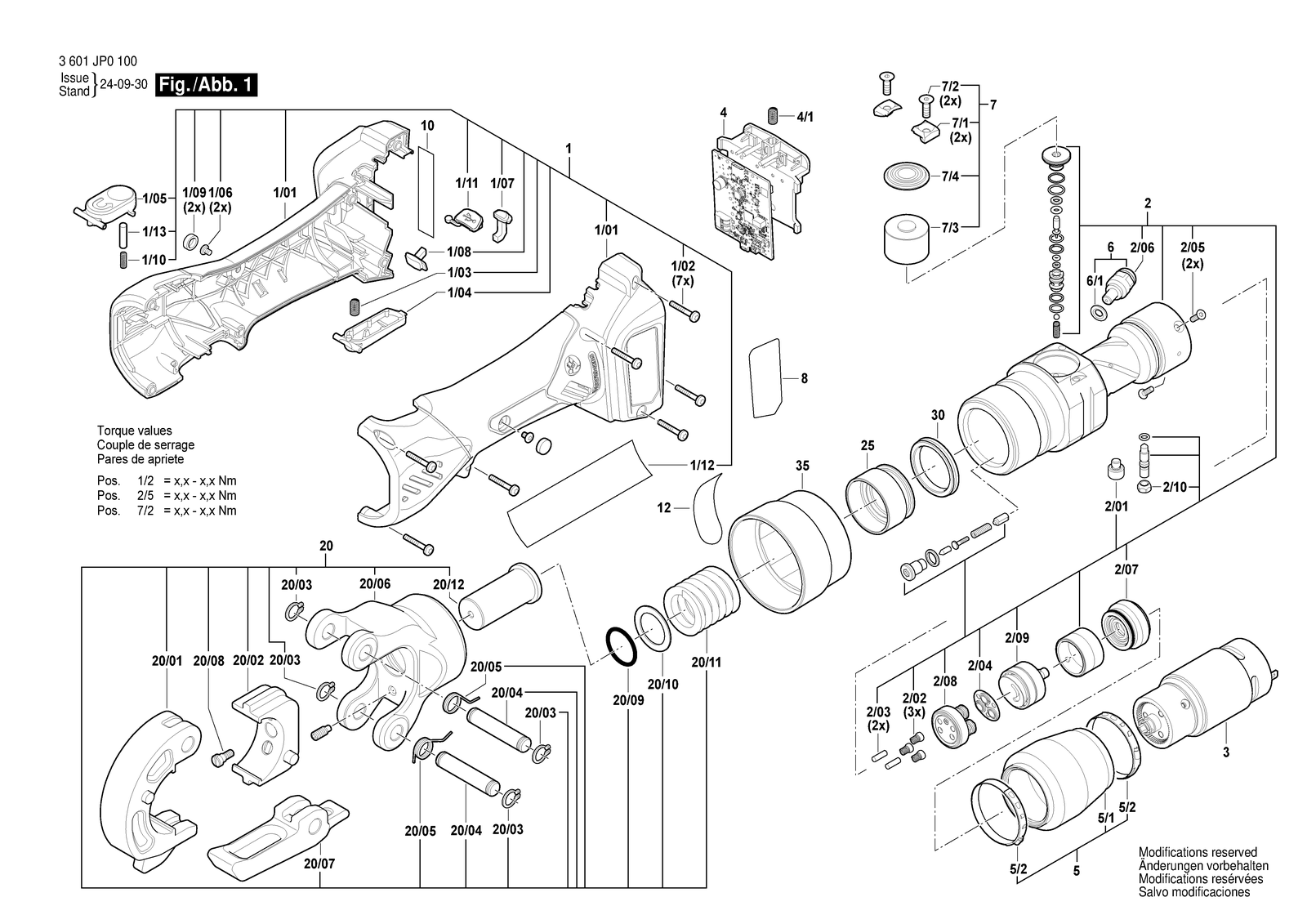

Bosch GPH 18V-60 parts diagram, sheet 1
No.Part numberPart name
11607000FH4Motor Housing
1/011607000G0AHousing
1/021607000G0BScrew
1/031607000G0CCompression Spring
1/041607000G0DPush-Button
1/051607000G0EPush-Button
1/061607000G0FSocket head cap screw
1/071607000G0GLens
1/081607000G0HLens
1/091607000FV3Cover
1/101607000G0PCompression Spring
1/111607000FM4Cap
1/121607000G0NInsulating Foil
1/131607000G0MNeedle Roller
101607000FJ1Manufacturer's nameplate
121607000FK9Sticker
21607000FH5Pump Housing
2/011607000G09Screw Plug
2/021607000FZ3Non-Return Valve
2/031607000FZ4Needle Roller
2/041607000FZ5Plunger plate
2/051607000G03Screw
2/061607000FZ7Pressure Sensor
2/071607000G05Flange nut
2/081607000G06Cylinder Plate
2/091607000G00Pump Shaft
2/101607000G01Nut
201607000FJ7Press
20/011607000FW1Bow
20/021607000FW2Toolholder
20/031607000FW3Spring retaining ring
20/041607000FW4Fulcrum Pin
20/051607000FW5Coiled Spring
20/061607000FW6Crown Piece
20/071607000FW7Hook
20/081607000FW8Pan head screw
20/091607000FW9O-Ring Seal
20/101607000FX0Shim ring
20/111607000FX1Compression Spring
20/121607000FX2Piston Rod
251607000FJ8Piston
31607000FH6Motor
301607000FJ9Piston Seal
351607000FK0Cap
41600A036FLElectronic Module
4/11607000G0JCompression Spring
51607000FH8Tank
5/11607000G07Tank
5/21607000G08Clip
61607000FH9Pressure Sensor
6/11607000FZ6Bonded Seal Ring
71607000FJ0Tractive Electromagnet
7/11607000FZ8Clamp
7/21607000FZ9Countersunk-Head Screw
7/31607000G02Tractive Electromagnet
7/41607000G04Membrane
81607000FF7Nameplate
81607000FF8Nameplate
81607000FF9Nameplate
81607000FG0Nameplate
