Bosch GPB 18V-5 C
Bosch GPB 18V-5 C power radio box: exploded parts diagram, 2 sheets, 54 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0

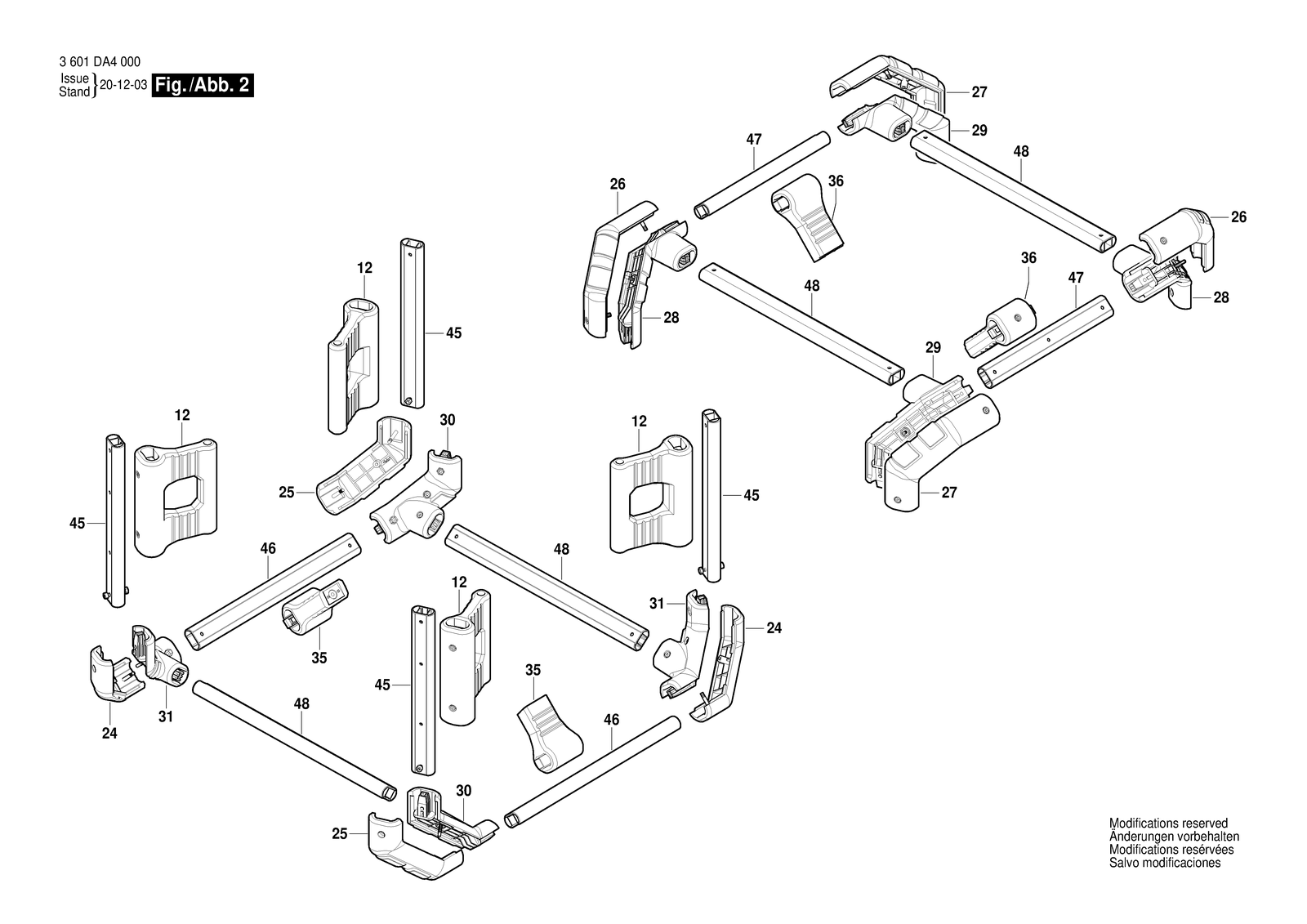

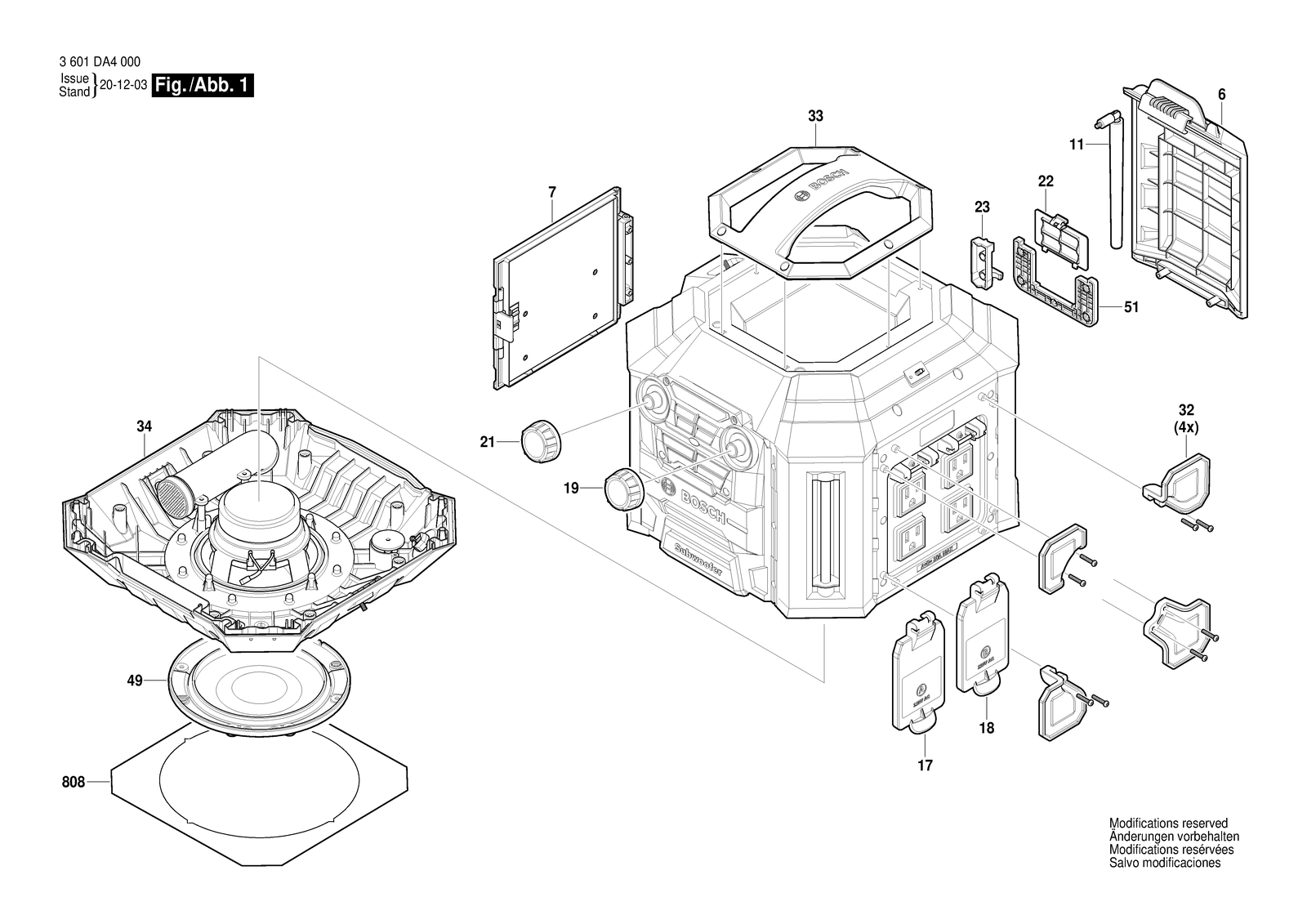

All parts of Bosch GPB 18V-5 C: 54 positions on 2 sheets
Bosch GPB 18V-5 C parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 11 | 1619PB5212 | Radio Antenna |
| 11 | 1619PB6341 | Radio Antenna |
| 12 | 1619PB5213 | Damping rubber |
| 17 | 1619PB5214 | Door Seal |
| 17 | 1619PB5832 | Door Seal |
| 17 | 1619PB5834 | Door Seal |
| 17 | 1619PB5836 | Door Seal |
| 18 | 1619PB5215 | Door Seal |
| 18 | 1619PB5833 | Door Seal |
| 18 | 1619PB5835 | Door Seal |
| 18 | 1619PB5837 | Door Seal |
| 19 | 1619PB5216 | Rotary Knob |
| 19 | 1619PB5838 | Rotary Knob |
| 21 | 1619PB5217 | Rotary Knob |
| 21 | 1619PB5839 | Rotary Knob |
| 21 | 1619PB6340 | Rotary Knob |
| 22 | 1619PB5218 | Cover Flap |
| 23 | 1619PB5219 | Holder |
| 24 | 1619PB5220 | Corner Protection |
| 25 | 1619PB5221 | Corner Protection |
| 26 | 1619PB5222 | Corner Protection |
| 27 | 1619PB5223 | Corner Protection |
| 28 | 1619PB5224 | Corner Protection |
| 29 | 1619PB5225 | Corner Protection |
| 30 | 1619PB5226 | Corner Protection |
| 31 | 1619PB5227 | Corner Protection |
| 32 | 1619PB5228 | Cable Holder |
| 33 | 1619PB5229 | Holding Handle |
| 34 | 1619PB4878 | Housing Base |
| 34 | 1619PB5230 | Housing Base |
| 34 | 1619PB5854 | Housing Base |
| 34 | 1619PB5855 | Housing Base |
| 34 | 1619PB5856 | Housing Base |
| 34 | 1619PB5857 | Housing Base |
| 34 | 1619PB5858 | Housing Base |
| 35 | 1619PB5231 | Damping rubber |
| 36 | 1619PB5232 | Damping rubber |
| 45 | 1619PB5204 | Aluminum Tubing |
| 46 | 1619PB5207 | Aluminum Tubing |
| 47 | 1619PB5205 | Aluminum Tubing |
| 48 | 1619PB5206 | Aluminum Tubing |
| 49 | 1619PB5208 | Protective Grille |
| 51 | 1619PB5235 | Battery Holder |
| 6 | 1619PB5209 | Cover Flap |
| 7 | 1619PB5211 | Cover Flap |
| 808 | 1609B07927 | Nameplate |
| 808 | 1609B07928 | Nameplate |
| 808 | 1619PB5611 | Nameplate |
| 808 | 1619PB5869 | Nameplate |
| 808 | 1619PB5870 | Nameplate |
| 808 | 1619PB5871 | Nameplate |
| 808 | 1619PB5872 | Nameplate |
| 808 | 1619PB6649 | Nameplate |
| 808 | 1619PB6650 | Nameplate |
