All parts of Bosch GOS 10,8 V-Li: 18 positions on 1 sheet

Bosch GOS 10,8 V-Li parts list (1 sheet)

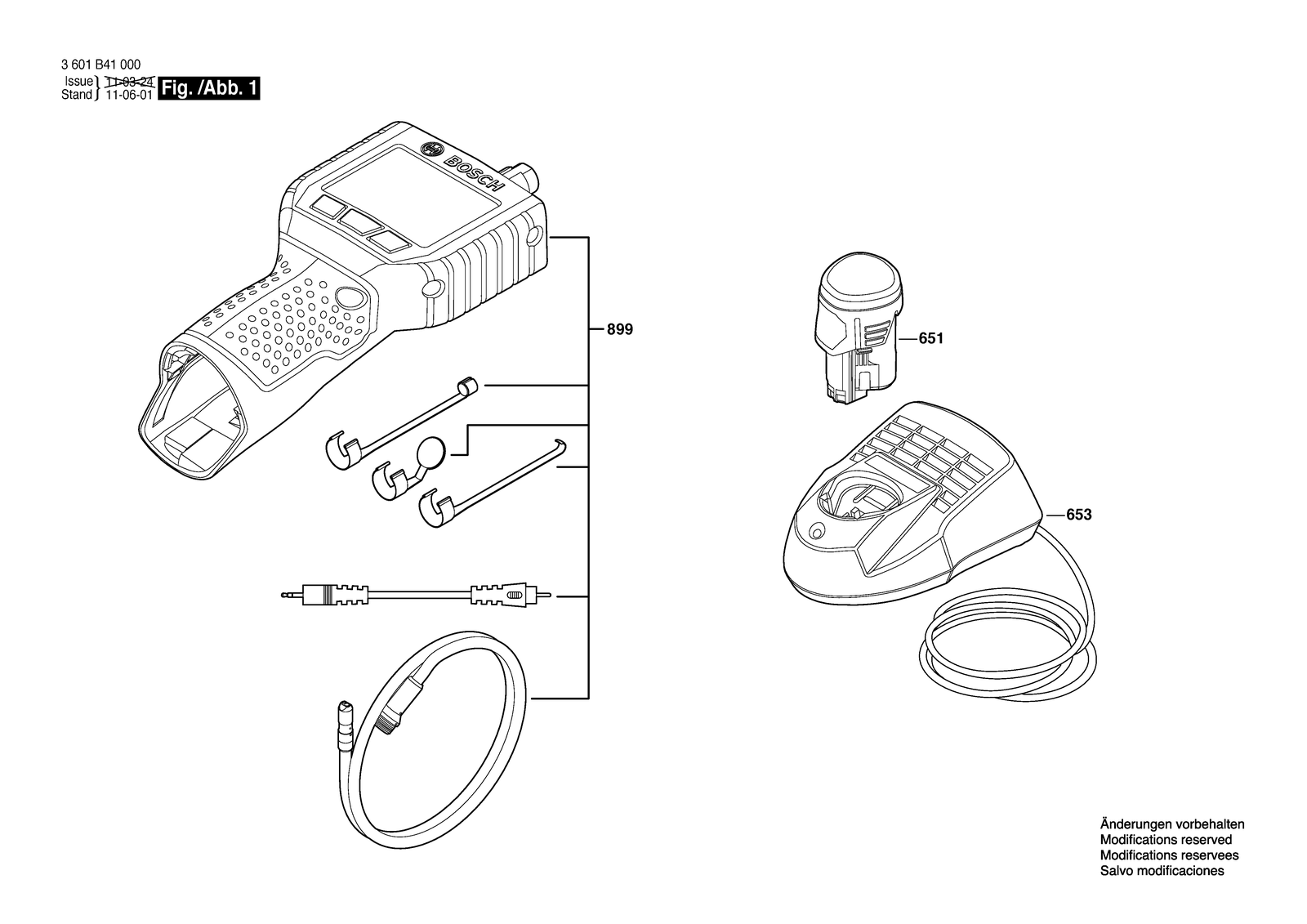

Bosch GOS 10,8 V-Li parts diagram, sheet 1
No.Part numberPart name
6511607A350C5Battery Pack GBA 12V 2.0AH LI Scm
6532607225135Fast Charger UK AL1130CV 230V/12V/3A
6532607225527Fast Charger BR 220/3,6-10,8V, 1H
6532607225531Fast Charger BR 127/3,6-10,8V, 1H
6532607226101Fast Charger EU GAL 1230 CV 230/12V
6532607226195Fast Charger GAL 12V-20 MEX 115V / 3.6V – 12V / 2A
6532607226205Fast Charger GAL 12V-20 ARG 115V / 3.6V – 12V / 2A
6532607225137Fast Charger AUS 240/10,8V
6532607225141Fast Charger SAM 115/10,8V, 30 Min.
6532607225143Fast Charger J 100/10,8V, 30 Min.
6532607225145Fast Charger ROK 230/10,8V, 30 Min.
6532607225303Fast Charger CN 220/10,8V, 30 Min.
8990601241004Camera EU
8990601241040Endoscope Aus
8990601241050Endoscope J
8990601241051Endoscope J
8990601241080Endoscope Cn
89906012410C0Endoscope Rc
