Bosch GOP 55-36

Bosch GOP 55-36 multipurpose tool: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOP 55-36: 33 positions on 1 sheet

Bosch GOP 55-36 parts list (1 sheet)

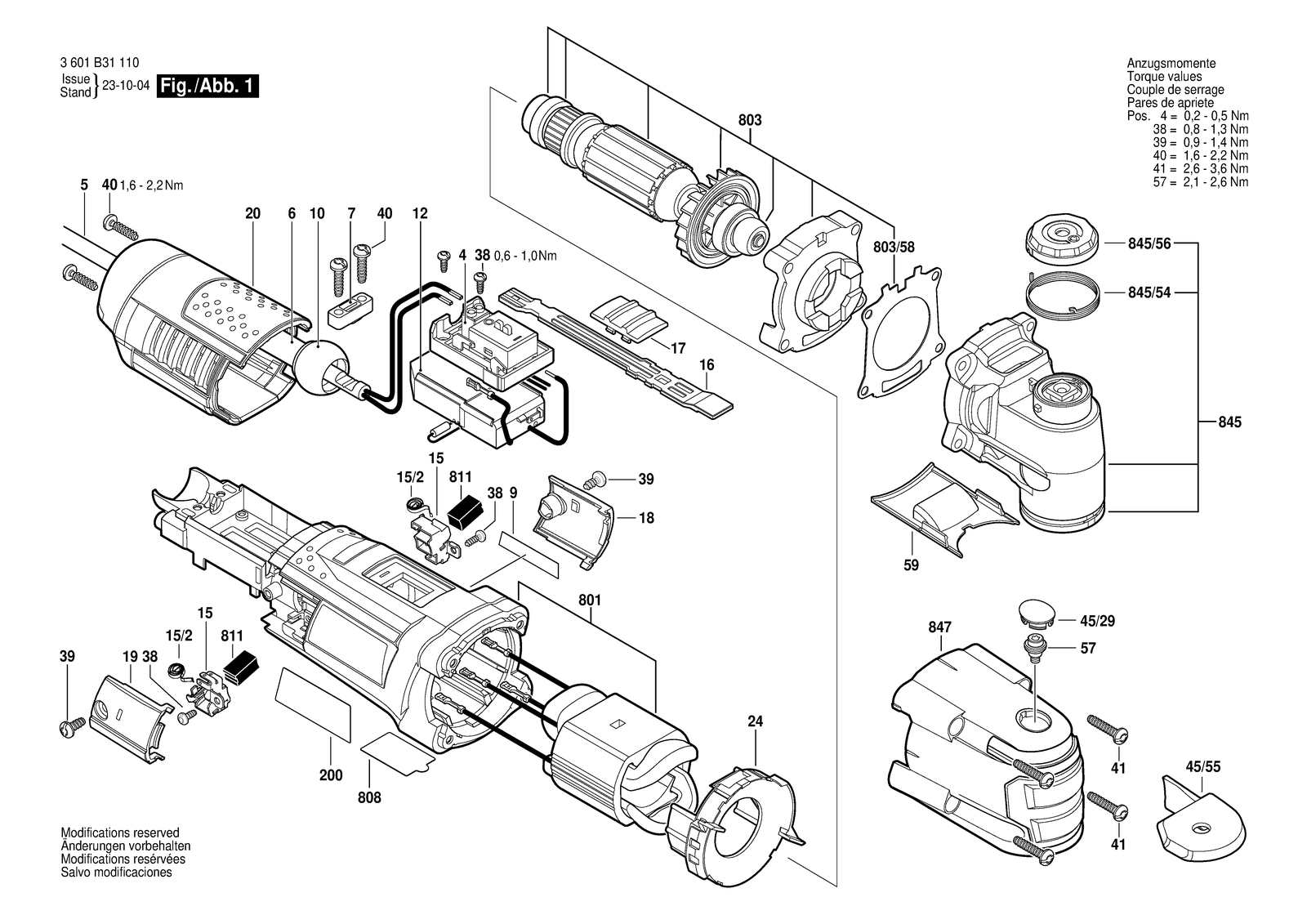

Bosch GOP 55-36 parts diagram, sheet 1
No.Part numberPart name
102609100929ball Joint
1216072335BNSpeed governor
152604337120Brush Holder
15/21619P02809Spiral Spring
162609100914Switch Slide
172609100915Switch Button
182605132079Brush-Cover
192605132080Brush-Cover
202609100909Housing Cover
2002601112117Warning Plate
242601328101Air-Deflector Ring
382603490016Torx Oval-Head Screw 3X8
392603490020Torx Oval-Head Screw 4X8
42609125028Electronics Module
402603490022Screw 4X16
412603415225Torx Oval-Head Screw
45/292601020017Sealing cap
45/552601901025Lever
52604460303Power supply cord US 4,15M 2X0,82MM SJ 18/2
572600114083Insulating ferrule
592601099300Safety Cover
62600703013Grommet Ø7,6-Ø8,2X95 MM
72601035001Cable Clip
8012605190934Housing Assembly
8032604011963Armature
803/582600206032Gasket
8082601113611Nameplate
811160701417XCarbon-Brush Set
8452605806851Gear Head
845/542604690068Torsion Spring
845/562600114091Insulating Cap
8472605105972Cap
92601113612Manufacturer's nameplate GOP55-36
