Bosch GOP 40-30 multipurpose tool: exploded parts diagram, 1 sheet, 33 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOP 40-30: 33 positions on 1 sheet

Bosch GOP 40-30 parts list (1 sheet)

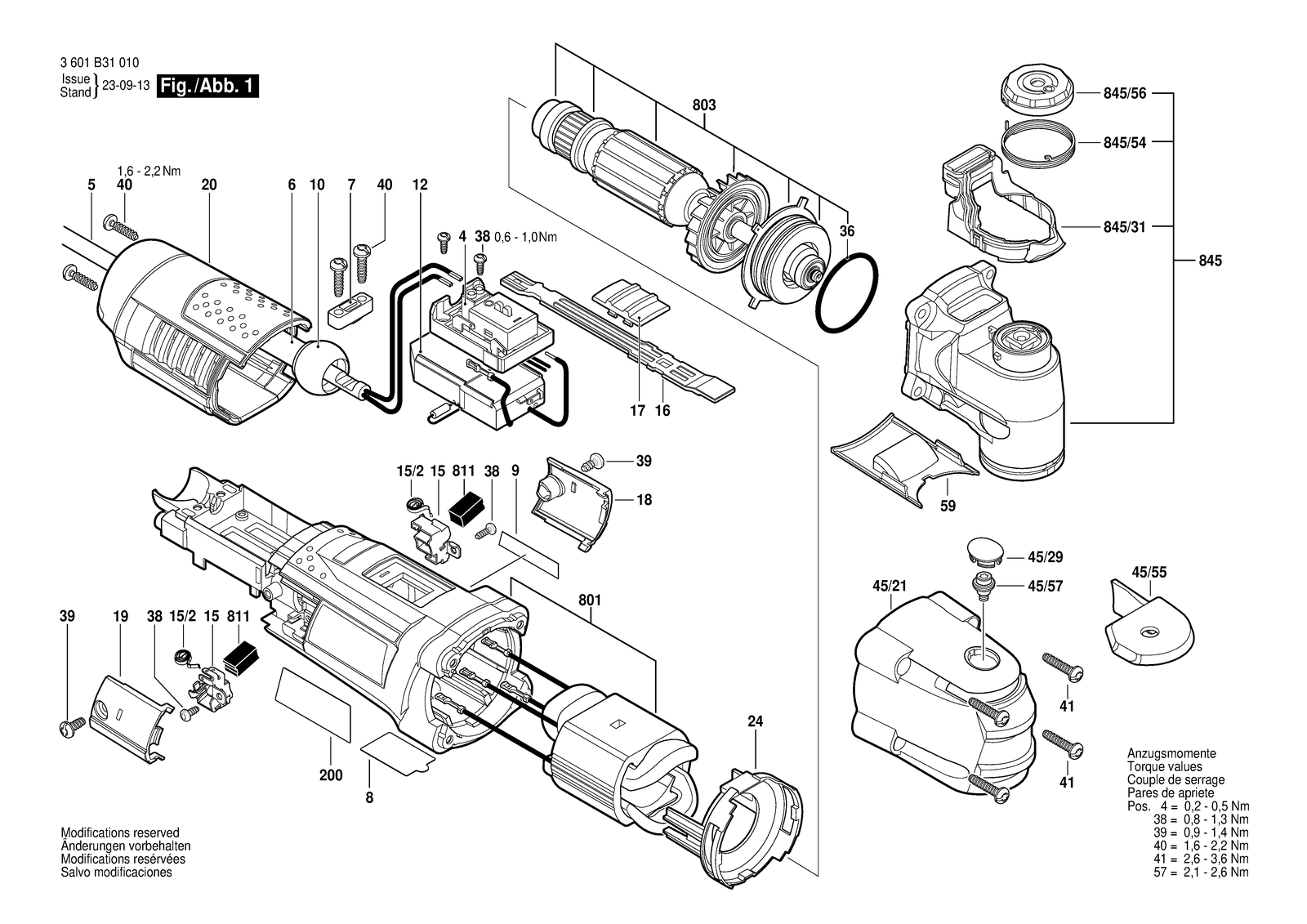

Bosch GOP 40-30 parts diagram, sheet 1
No.Part numberPart name
102609100929ball Joint
1216072335BNSpeed governor
152604337120Brush Holder
15/21619P02809Spiral Spring
162609100914Switch Slide
172609100915Switch Button
182609100911Brush-Cover
192609100912Brush-Cover
202609100909Housing Cover
2002601112117Warning Plate
242609101674Air-Deflector Ring
362600210056O-Ring 31,0X2,0 MM
382603490016Torx Oval-Head Screw 3X8
392603490020Torx Oval-Head Screw 4X8
42609125028Electronics Module
402603490022Screw 4X16
412603490024Torx Oval-Head Screw 4X25
45/212605806504Cap
45/292601020017Sealing cap
45/552601901024Lever
45/572600114083Insulating ferrule
52604460303Power supply cord US 4,15M 2X0,82MM SJ 18/2
592601099299Safety Cover
62600703013Grommet Ø7,6-Ø8,2X95 MM
72601035001Cable Clip
8012605190931Housing Assembly
8032604011960Armature 110~127V
811160701417XCarbon-Brush Set
8452605806852Gear Head
845/311600A004KUIllumination Equipment
845/542604690068Torsion Spring
845/562600114091Insulating Cap
92601113566Manufacturer's nameplate GOP40-30
