Bosch GOP 40-30

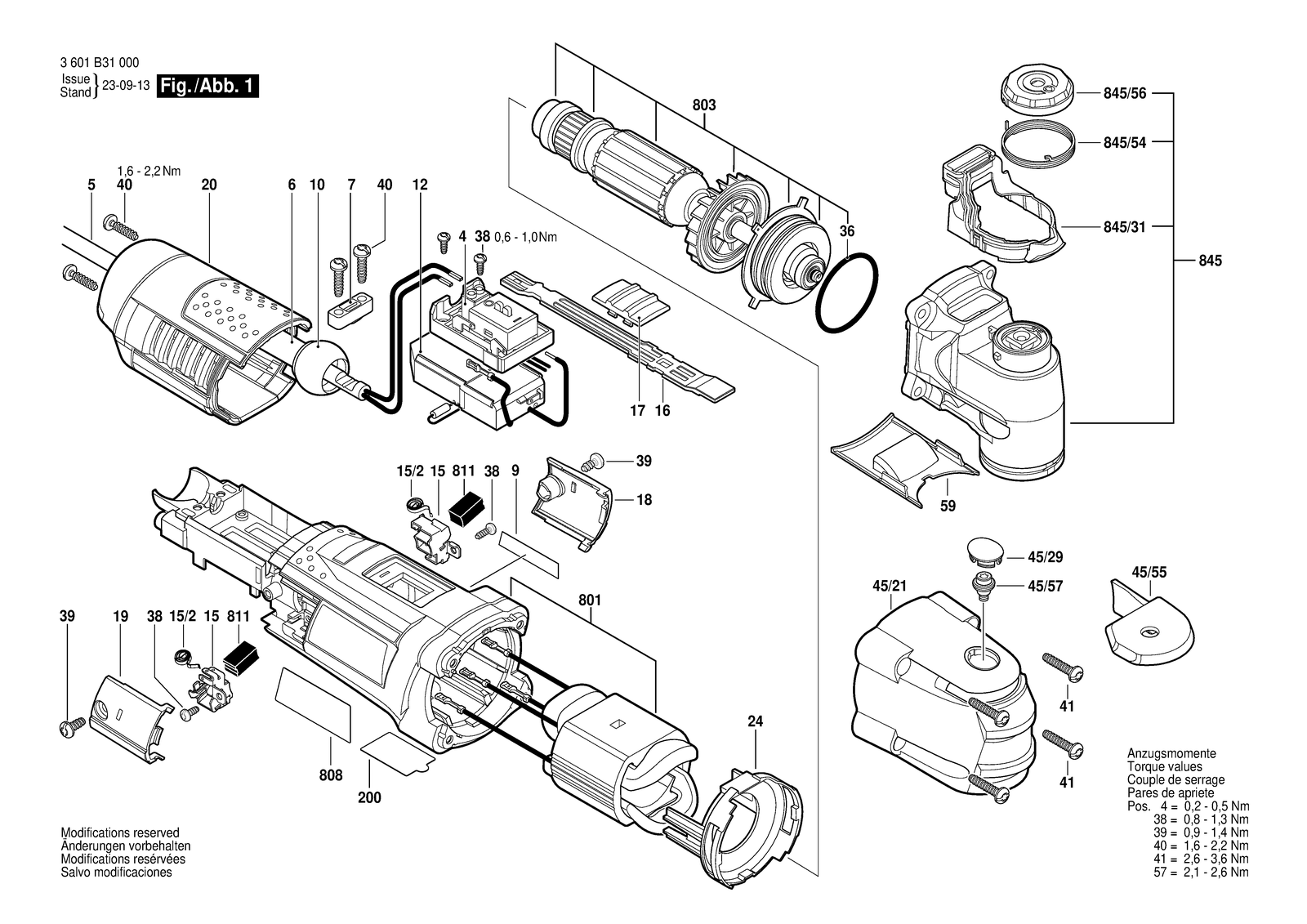

Bosch GOP 40-30 multipurpose tool: exploded parts diagram, 1 sheet, 112 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOP 40-30: 112 positions on 1 sheet
Bosch GOP 40-30 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2609100929 | ball Joint |
| 10 | 2609100929 | ball Joint |
| 10 | 2609100929 | ball Joint |
| 12 | 16072335BM | Speed governor |
| 12 | 16072335BN | Speed governor |
| 12 | 16072335BM | Speed governor |
| 12 | 16072335BM | Speed governor |
| 15 | 2604337120 | Brush Holder |
| 15 | 2604337120 | Brush Holder |
| 15 | 2604337120 | Brush Holder |
| 15/2 | 1619P02809 | Spiral Spring |
| 15/2 | 1619P02809 | Spiral Spring |
| 15/2 | 1619P02809 | Spiral Spring |
| 16 | 2609100914 | Switch Slide |
| 16 | 2609100914 | Switch Slide |
| 16 | 2609100914 | Switch Slide |
| 17 | 2609100915 | Switch Button |
| 17 | 1600A00ZT4 | Switch Button |
| 17 | 1600A00ZT5 | Switch Button |
| 18 | 2609100911 | Brush-Cover |
| 18 | 2605132079 | Brush-Cover |
| 18 | 2605132079 | Brush-Cover |
| 19 | 2609100912 | Brush-Cover |
| 19 | 2605132080 | Brush-Cover |
| 19 | 2605132080 | Brush-Cover |
| 20 | 2609100909 | Housing Cover |
| 20 | 1600A00ZT6 | Housing Cover |
| 20 | 1600A00ZT7 | Housing Cover |
| 200 | 2601113567 | Reference Plate |
| 200 | 160111C1RM | Reference Plate |
| 200 | 160111C1RN | Reference Plate |
| 24 | 2609101674 | Air-Deflector Ring |
| 24 | 2609101674 | Air-Deflector Ring |
| 24 | 2609101674 | Air-Deflector Ring |
| 36 | 2600210056 | O-Ring 31,0X2,0 MM |
| 36 | 2600210056 | O-Ring 31,0X2,0 MM |
| 36 | 2600210056 | O-Ring 31,0X2,0 MM |
| 38 | 2603490016 | Torx Oval-Head Screw 3X8 |
| 38 | 2603490016 | Torx Oval-Head Screw 3X8 |
| 38 | 2603490016 | Torx Oval-Head Screw 3X8 |
| 39 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 39 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 39 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 4 | 2609125028 | Electronics Module |
| 4 | 2609125028 | Electronics Module |
| 4 | 2609125028 | Electronics Module |
| 40 | 2603490022 | Screw 4X16 |
| 40 | 2603490022 | Screw 4X16 |
| 40 | 2603490022 | Screw 4X16 |
| 41 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 41 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 41 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 45/21 | 2605806504 | Cap |
| 45/21 | 2605806504 | Cap |
| 45/21 | 2605806504 | Cap |
| 45/29 | 2601020017 | Sealing cap |
| 45/29 | 2601020017 | Sealing cap |
| 45/29 | 2601020017 | Sealing cap |
| 45/55 | 2601901024 | Lever |
| 45/55 | 2601901024 | Lever |
| 45/55 | 2601901024 | Lever |
| 45/57 | 2600114083 | Insulating ferrule |
| 45/57 | 2600114083 | Insulating ferrule |
| 45/57 | 2600114083 | Insulating ferrule |
| 5 | 1604460185 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460400 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460311 | Power supply cord EU 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2609120275 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460311 | Power supply cord EU 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2604460311 | Power supply cord EU 4,15M 2 X 1,0MM H05 Rn-F |
| 59 | 2601099299 | Safety Cover |
| 59 | 1600A011T6 | Safety Cover |
| 59 | 1600A011T6 | Safety Cover |
| 6 | 2600703011 | Grommet Ø8,3-Ø9,4X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 7 | 2601035001 | Cable Clip |
| 801 | 2605190931 | Housing Assembly |
| 801 | 2609199344 | Housing Assembly |
| 801 | 1600A011LK | Housing Assembly |
| 801 | 1600A011LM | Housing Assembly |
| 803 | 2604011959 | Armature |
| 803 | 2604011960 | Armature 110~127V |
| 803 | 2604011959 | Armature |
| 803 | 2604011959 | Armature |
| 808 | 160111A3T2 | Nameplate |
| 808 | 160111A3T6 | Nameplate |
| 808 | 160111A3TC | Nameplate |
| 808 | 160111A3TE | Nameplate |
| 808 | 160111A4M6 | Nameplate |
| 808 | 160111A4M7 | Nameplate |
| 811 | 160701417X | Carbon-Brush Set |
| 811 | 160701417X | Carbon-Brush Set |
| 811 | 160701417X | Carbon-Brush Set |
| 845 | 2605806852 | Gear Head |
| 845 | 2605806852 | Gear Head |
| 845 | 2605806852 | Gear Head |
| 845/31 | 1600A004KU | Illumination Equipment |
| 845/31 | 1600A004KU | Illumination Equipment |
| 845/31 | 1600A004KU | Illumination Equipment |
| 845/54 | 2604690068 | Torsion Spring |
| 845/54 | 2604690068 | Torsion Spring |
| 845/54 | 2604690068 | Torsion Spring |
| 845/56 | 2600114091 | Insulating Cap |
| 845/56 | 2600114091 | Insulating Cap |
| 845/56 | 2600114091 | Insulating Cap |
| 9 | 2601113565 | Manufacturer's nameplate GOP 40-30 |
| 9 | 160111C1RP | Manufacturer's nameplate Bot Starlock Plus |
| 9 | 160111C1RR | Manufacturer's nameplate Bti |
