Bosch GOP 300 SCE multipurpose tool: exploded parts diagram, 1 sheet, 51 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOP 300 SCE: 51 positions on 1 sheet

Bosch GOP 300 SCE parts list (1 sheet)

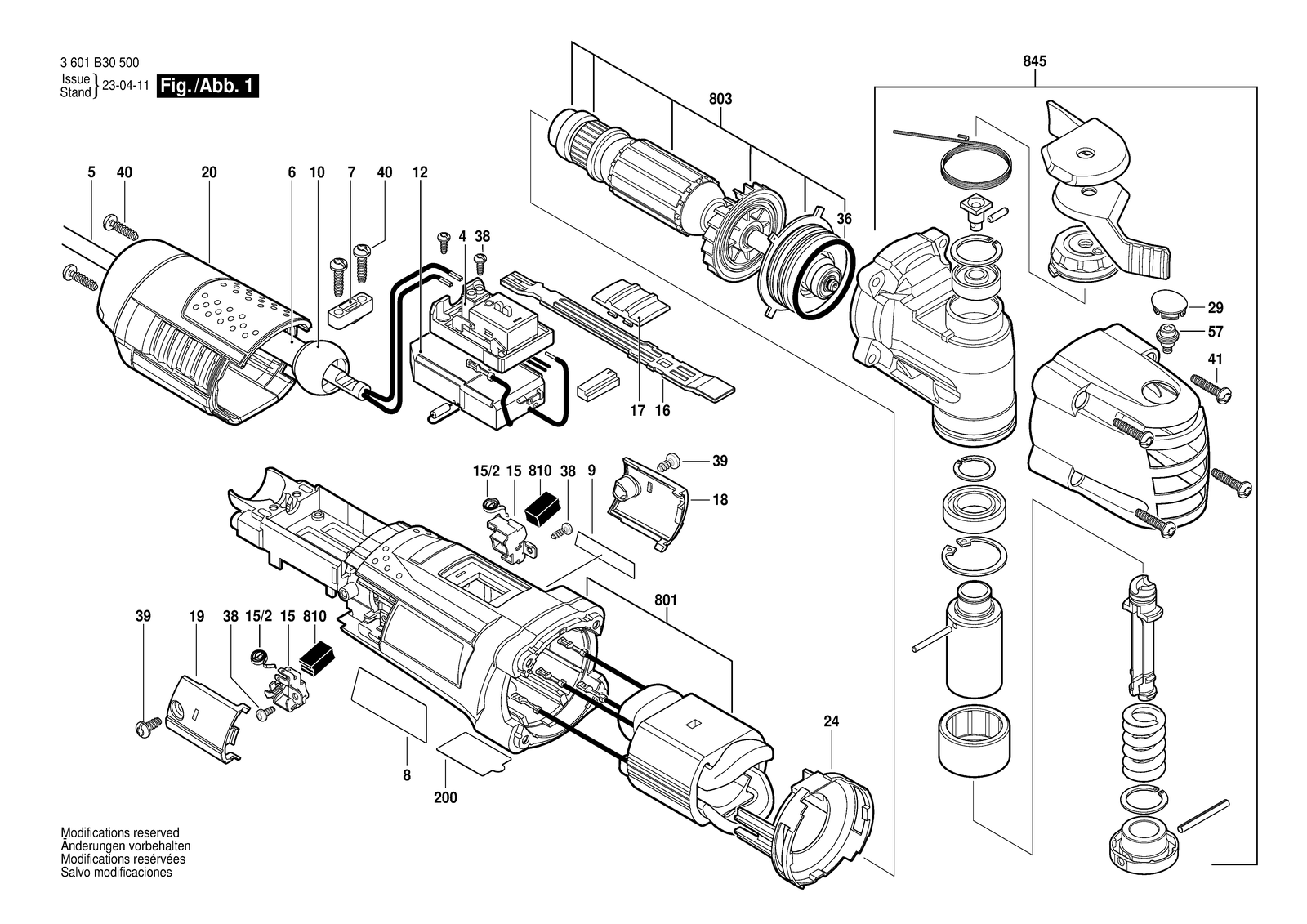

Bosch GOP 300 SCE parts diagram, sheet 1
No.Part numberPart name
102609100929ball Joint
121607233437Electronics Module
121607233438Speed governor
121607233453Electronics Module
152604337120Brush Holder
15/21619P02809Spiral Spring
162609100914Switch Slide
172609100915Switch Button
182609100911Brush-Cover
192609100912Brush-Cover
202609100909Housing Cover
2002601112033Reference Plate
2002601112109Nameplate
242601328093Air-Deflector Ring
292601020017Sealing cap
362600210056O-Ring 31,0X2,0 MM
382603490016Torx Oval-Head Screw 3X8
392603490020Torx Oval-Head Screw 4X8
42609125028Electronics Module
402603490022Screw 4X16
412603490024Torx Oval-Head Screw 4X25
51604460185Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F
51604460400Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F
52604460303Power supply cord US 4,15M 2X0,82MM SJ 18/2
52604460305Power supply cord AUS 3,15M 2X0,75MM Pvc
52604460311Power supply cord EU 4,15M 2 X 1,0MM H05 Rn-F
52609120275Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F
52609120361Power supply cord J 2,5M 2 X 0,75MM Vct F
572600114083Insulating ferrule
62600703011Grommet Ø8,3-Ø9,4X95 MM
62600703012Grommet Ø6,5-Ø6,9X95 MM
62600703013Grommet Ø7,6-Ø8,2X95 MM
71611035005Cable Clip
72601035001Cable Clip
82601111877Nameplate
82601112107Nameplate
82601112108Nameplate
82601112117Warning Plate
82601112119Nameplate
82601112121Nameplate
82601112122Nameplate
82601112396Nameplate
8012609199344Housing Assembly
8012609199346Housing Assembly
8032604011948Armature
8032604011950Armature
810160701417XCarbon-Brush Set
8452605806872Gear Head
92601112011Manufacturer's nameplate GOP 300 Sce
92601112118Manufacturer's nameplate MX30E
92601112123Manufacturer's nameplate GMF 300 Sce
