Bosch GOP 30-28

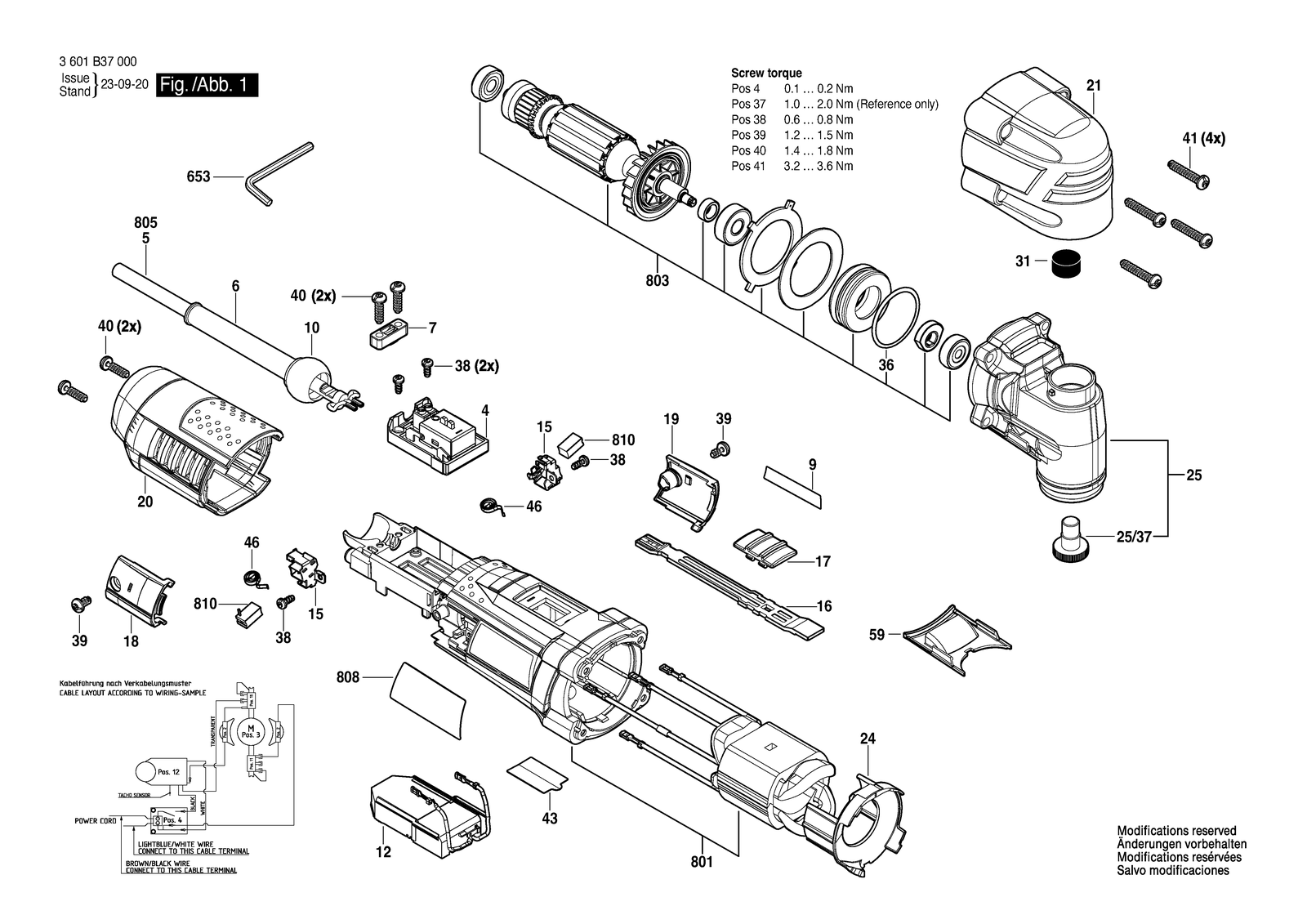

Bosch GOP 30-28 multipurpose tool: exploded parts diagram, 1 sheet, 40 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOP 30-28: 40 positions on 1 sheet
Bosch GOP 30-28 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 2609100929 | ball Joint |
| 12 | 1607233437 | Electronics Module |
| 12 | 1607233438 | Speed governor |
| 15 | 1619P09249 | Brush Holder |
| 16 | 2609100914 | Switch Slide |
| 17 | 2609100915 | Switch Button |
| 18 | 2609100911 | Brush-Cover |
| 19 | 2609100912 | Brush-Cover |
| 20 | 2609100909 | Housing Cover |
| 21 | 2609101664 | Gear Cover |
| 24 | 2609101674 | Air-Deflector Ring |
| 25 | 2609199957 | Gear Box |
| 25/37 | 2609112154 | Screw |
| 31 | 2609170312 | Rubber Gasket |
| 36 | 2600210056 | O-Ring 31,0X2,0 MM |
| 38 | 2603490016 | Torx Oval-Head Screw 3X8 |
| 39 | 2603490020 | Torx Oval-Head Screw 4X8 |
| 4 | 2609125028 | Electronics Module |
| 40 | 2603490022 | Screw 4X16 |
| 41 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 43 | 2609136619 | Reference Plate |
| 46 | 1619P02809 | Spiral Spring |
| 5 | 1604460185 | Power supply cord GB 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 1604460400 | Power supply cord CH 4,15M 2 X 1,0MM H05 Rn-F |
| 5 | 2609120275 | Power supply cord GB 110V 4,15M 2 X 1,0MM H05 Rn-F |
| 59 | 2609101682 | Safety Cover |
| 6 | 2600703012 | Grommet Ø6,5-Ø6,9X95 MM |
| 653 | 2609110831 | Key |
| 7 | 2601035001 | Cable Clip |
| 801 | 2609199344 | Housing Assembly |
| 801 | 2609199346 | Housing Assembly |
| 803 | 2604011960 | Armature 110~127V |
| 803 | 2609199961 | Armature 220~240V |
| 805 | 1607000386 | Power supply cord EU 230V 4,15M 2 X 1,0MM H05 Rn-F |
| 808 | 160111A54H | Nameplate |
| 808 | 160111A54M | Nameplate |
| 808 | 160111A55L | Nameplate |
| 808 | 160111A55N | Nameplate |
| 810 | 1619P02870 | Carbon-Brush Set |
| 9 | 2609136574 | Manufacturer's nameplate GOP 30-28 |
