Bosch GOP 18V multipurpose tool: exploded parts diagram, 1 sheet, 21 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOP 18V: 21 positions on 1 sheet

Bosch GOP 18V parts list (1 sheet)

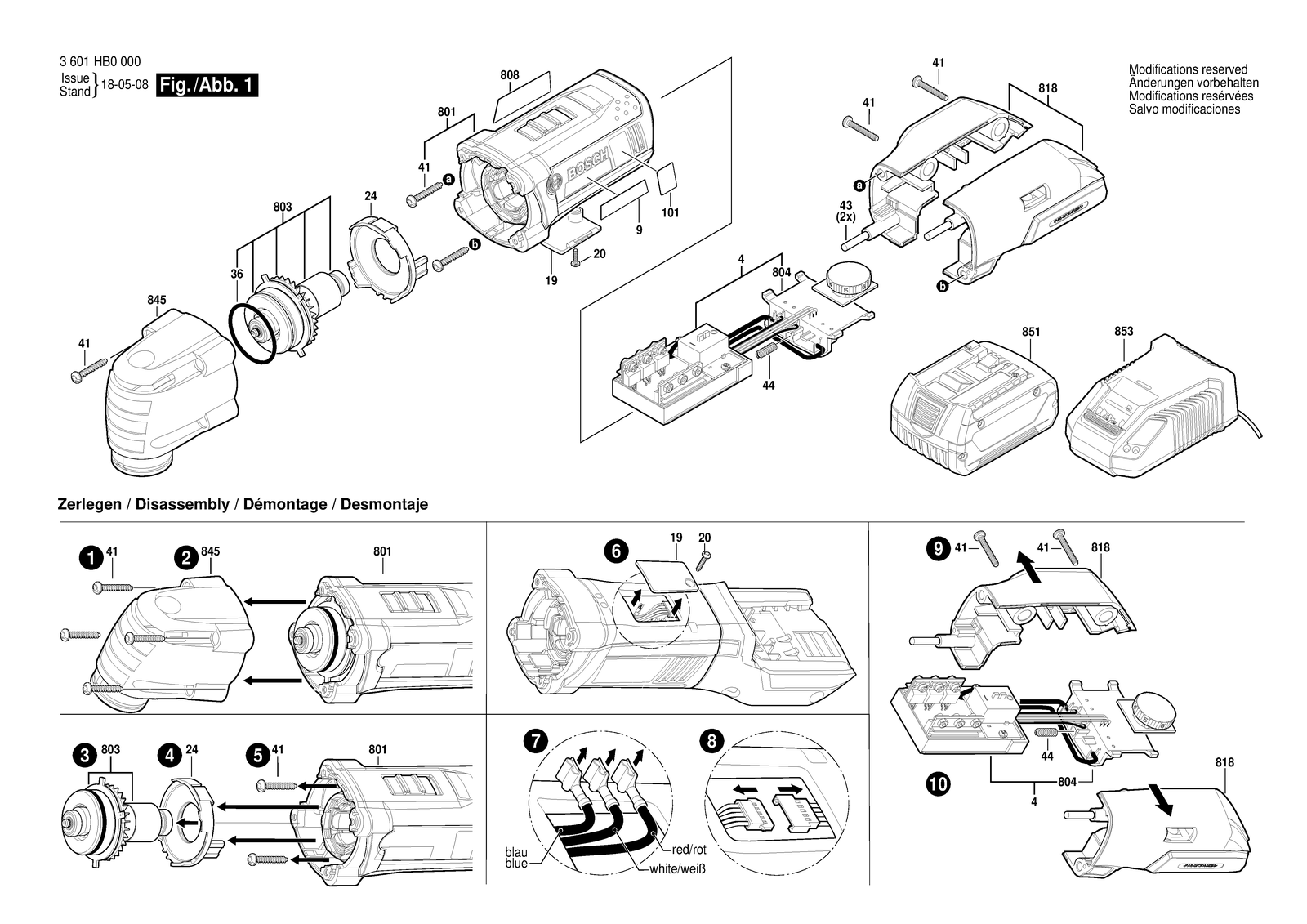

Bosch GOP 18V parts diagram, sheet 1
No.Part numberPart name
1012609133977Sticker
192609101134Cover
202603490016Torx Oval-Head Screw 3X8
242609101144Air-Deflector Ring
362600210056O-Ring 31,0X2,0 MM
41600A01EC4Electronics Module
412603490024Torx Oval-Head Screw 4X25
432609111505Straight Pin
441609280477Compression Spring
8012609199679Housing Assembly
8032609199680Armature assembly
8041609280478Contact retainer
8081600A00Z1RNameplate
8182609199750Battery Housing
8452605806872Gear Head
8511607A350M0Battery Pack GBA 18V 4.0AH
8532607225321Charger EU 230/14,4-18V, 30 40 S
8532607225325Fast Charger AUS 230/10,8-18V, 30 Min
8532607225923Charger GB 230/10,8-18V, 30 42 S
8532607225925Charger Aus GAL 1880 CV 230/14,4-18V
92609134034Manufacturer's nameplate GOP 18 Vec
