Bosch GOP 18V-28 multipurpose tool: exploded parts diagram, 1 sheet, 34 positions. Spare parts with part numbers, availability and prices.

—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOP 18V-28: 34 positions on 1 sheet

Bosch GOP 18V-28 parts list (1 sheet)

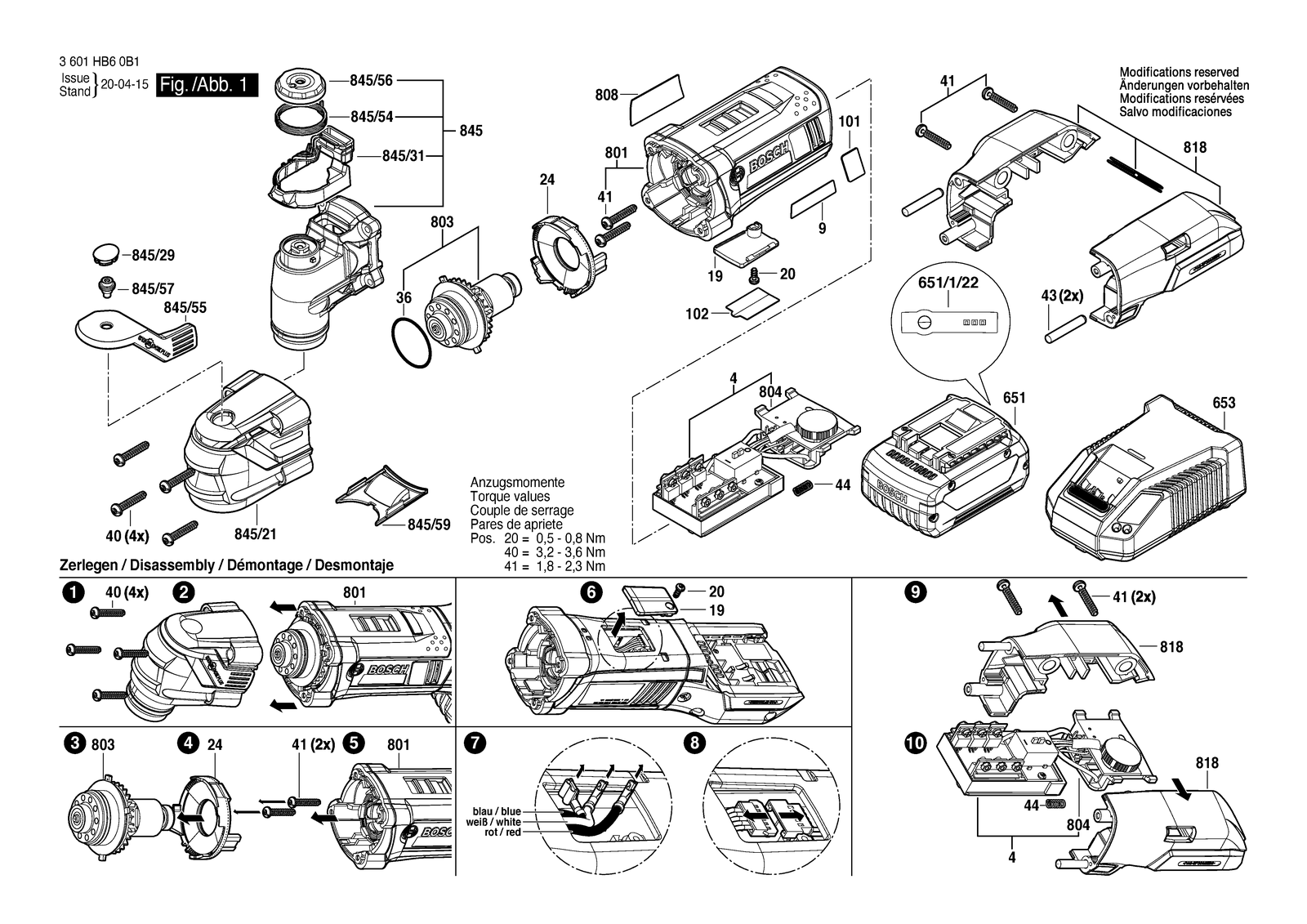

Bosch GOP 18V-28 parts diagram, sheet 1
No.Part numberPart name
1012609133977Sticker
1022609136619Reference Plate
192609101134Cover
202603490016Torx Oval-Head Screw 3X8
242609101144Air-Deflector Ring
362600210056O-Ring 31,0X2,0 MM
41600A01EC4Electronics Module
402603490024Torx Oval-Head Screw 4X25
412603490024Torx Oval-Head Screw 4X25
432609111505Straight Pin
441609280477Compression Spring
6512607337081Battery Pack Bbs Mr-Xl, 18V, 5AH
6512607337085Battery Pack Bbs Mr-Xl, 18V, 5AH Korea
6512607337265Battery Pack GBA 18V 6,0AH M-c (j)
651/1/222601115537Sticker
6532607225931Charger J GAL 1880 CV 100/14,4-18V
6532607225933Charger Rok GAL 1880 CV 220V/14,4-18V
8012609199679Housing Assembly
8031600A00P1TRotor
8041609280478Contact retainer
808160111A768Nameplate
808160111A76ANameplate
8181600A00XD7Battery Housing
8452605806850Gear Head
845/212605806504Cap
845/292601020017Sealing cap
845/311600A004KUIllumination Equipment
845/542604690068Torsion Spring
845/552601901024Lever
845/562600114091Insulating Cap
845/572600114083Insulating ferrule
845/592601099299Safety Cover
92609137747Manufacturer's nameplate
92609138679Manufacturer's nameplate
