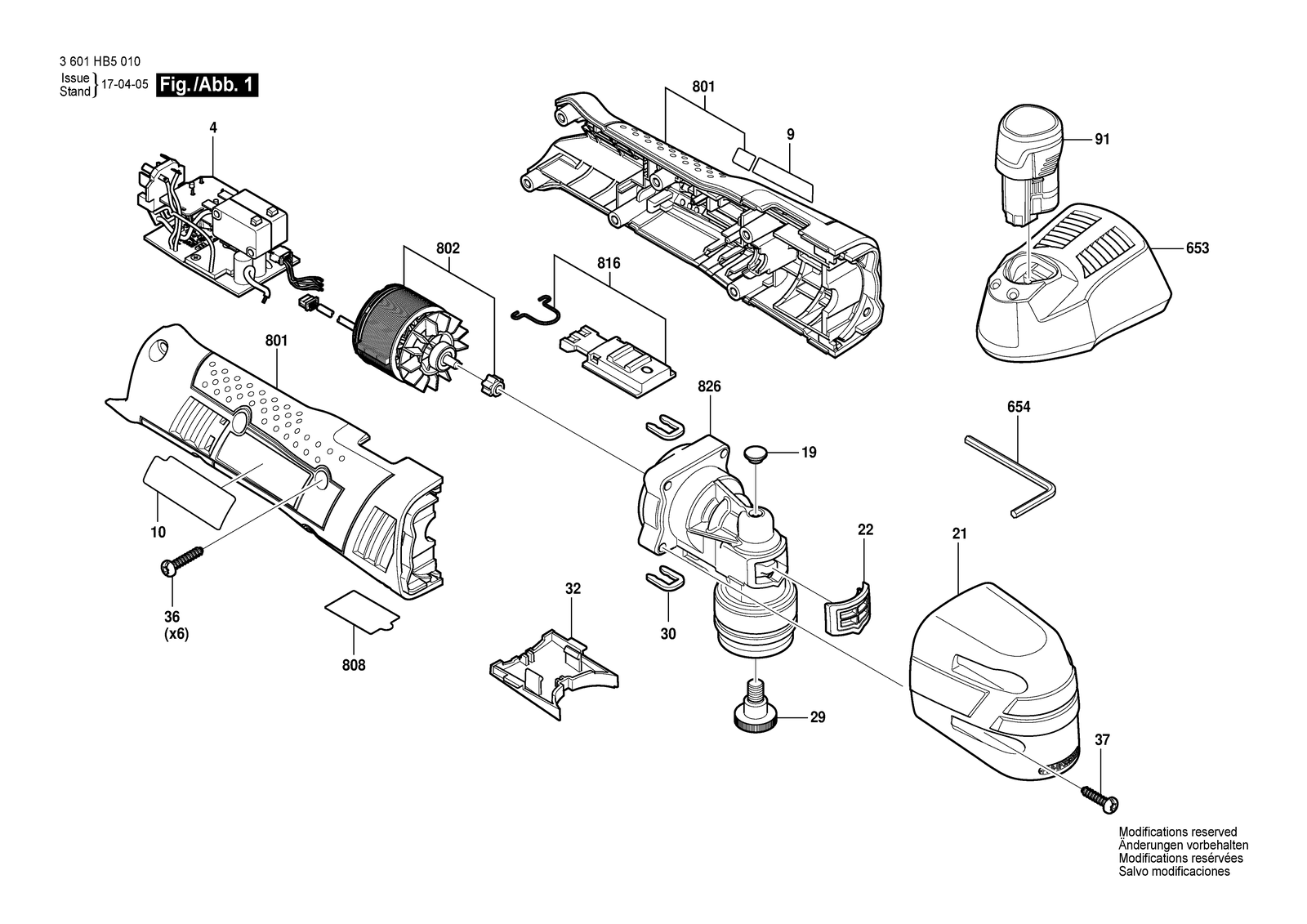

Bosch GOP 12V-28 multipurpose tool: exploded parts diagram, 1 sheet, 22 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOP 12V-28: 22 positions on 1 sheet
Bosch GOP 12V-28 parts list (1 sheet)
| No. | Part number | Part name |
|---|---|---|
| 10 | 1600A01L3K | Warning Label |
| 19 | 2609170308 | Sealing cap |
| 21 | 2609101760 | Cap |
| 22 | 2609170083 | Sealing cap |
| 29 | 2609112252 | Fastening Screw |
| 30 | 2609110537 | Clip |
| 32 | 2609101761 | Safety Cover |
| 36 | 2603490023 | Torx Oval-Head Screw 4X20 |
| 37 | 2603490024 | Torx Oval-Head Screw 4X25 |
| 4 | 16072335D5 | Electronics Module |
| 653 | 2607225139 | Fast Charger Usa/can 120/10,8-12V/30 Min. |
| 653 | 2607225519 | Fast Charger USA 120/3,6-10,8V,1H |
| 654 | 2609110831 | Key |
| 801 | 1607000CJ5 | Housing |
| 802 | 1607000CK9 | Motor |
| 808 | 1600A01343 | Nameplate |
| 808 | 160111A78F | Nameplate |
| 816 | 1607000CJ6 | Switch Slide |
| 826 | 1607000CL0 | Gear Box |
| 9 | 160111C27G | Manufacturer's nameplate GOP 12V-28 |
| 91 | 1607A350C8 | Battery Pack BAT 414 10,8/12V 2,0AH |
| 91 | 2607337237 | Battery Pack BAT 415 10,8V712V 2,5AH |
