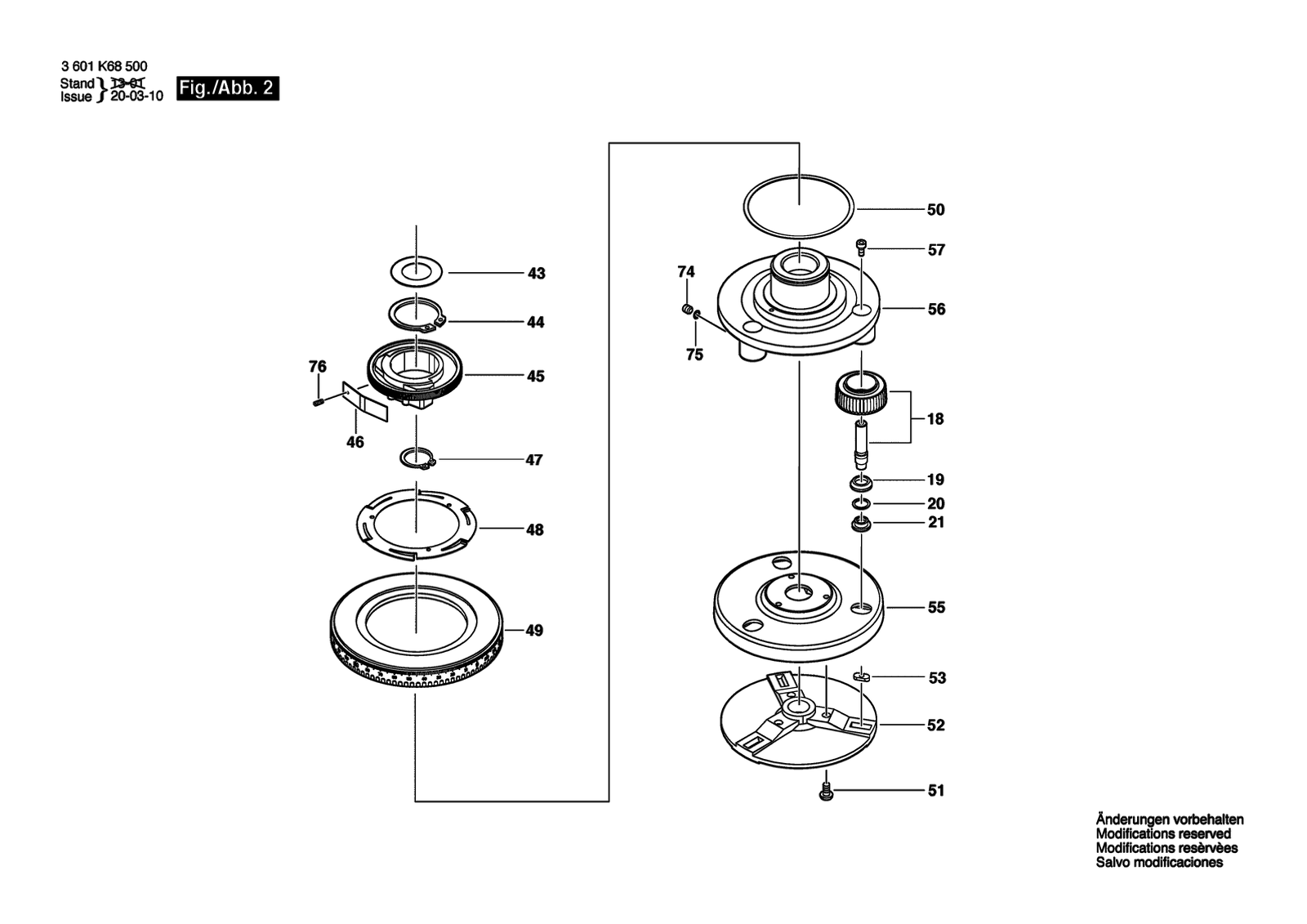

Bosch GOL 32 D/G optical level: exploded parts diagram, 2 sheets, 66 positions. Spare parts with part numbers, availability and prices.
—
Scroll to zoom · drag to move
All parts on this sheet0
All parts of Bosch GOL 32 D/G: 66 positions on 2 sheets
Bosch GOL 32 D/G parts list (2 sheets)
| No. | Part number | Part name |
|---|---|---|
| 1 | 2610A02324 | Screw |
| 10 | 2610A05726 | Screw |
| 11 | 2610A05724 | Set screw |
| 12 | 1619PA5004 | Protective Cover |
| 13 | 2610A11683 | Cover |
| 14 | 2610A05730 | Eyepiece |
| 15 | 2610A05731 | Mat seal |
| 16 | 1619PA5049 | Piston |
| 18 | 2610A05628 | Adjusting Screw |
| 19 | 2610A05629 | Tension Cone |
| 2 | 2610A05748 | Pivot Pin |
| 20 | 2610A05630 | Washer |
| 21 | 2610A05631 | Nut |
| 23 | 1619PA5229 | Focusing device 16MM |
| 23/14 | 2610A03404 | Cap |
| 24 | 2610A03394 | Cap |
| 25 | 2610A11684 | Cover Ring |
| 26 | 2610A03366 | Lens |
| 27 | 2610A03392 | Spacer |
| 28 | 2610A03377 | Pusher |
| 29 | 2610A05649 | Contact strap |
| 3 | 2610A03364 | Compensator |
| 30 | 2610A05652 | Toothed rack |
| 31 | 2610A03380 | Screw |
| 32 | 2610A05653 | Lens |
| 34 | 2610A03379 | Reader |
| 35 | 2610A03367 | O-Ring |
| 36 | 2610A11904 | Mat seal |
| 37 | 2610A05751 | Transport Lock |
| 38 | 2610A03368 | Screw |
| 39 | 2610A03339 | Indicator |
| 40 | 1619PA5231 | Telescope GOL 32 D |
| 40 | 1619PA5232 | Telescope GOL 32 G |
| 43 | 2610A05665 | Washer |
| 44 | 2610A05666 | Retaining ring |
| 45 | 2610A05667 | Gear |
| 46 | 2610A05669 | Contact strap |
| 47 | 2610A05671 | Spring retaining ring |
| 48 | 2610A05744 | Retaining ring |
| 49 | 2610A05673 | Graduated Disc |
| 5 | 2610A05662 | Contact strap |
| 50 | 2610A05675 | Washer |
| 51 | 2610A05694 | Screw |
| 52 | 2610A05691 | Base Plate |
| 53 | 2610A05693 | Ball seat |
| 55 | 2610A11687 | Cover Plate |
| 56 | 1619PA5054 | Base Plate |
| 57 | 2610A05734 | Screw |
| 58 | 2610A05702 | Screw |
| 58/1 | 2610A05677 | Cap |
| 59 | 2610A03382 | Screw |
| 60 | 2610A03370 | Set screw |
| 61 | 2610A05758 | Screw |
| 62 | 2610A05718 | Bubble Level |
| 63 | 2610A05697 | Contact strap |
| 64 | 2610A03383 | Viewfinder tube |
| 65 | 1619PA5043 | Hex Socket Head Cap Screw |
| 66 | 1619PB5538 | Sleeve |
| 67 | 1619PA5044 | Hex head tapping screw |
| 73 | 1619PA5233 | Mounting Kit |
| 74 | 1619PA5234 | Screw |
| 75 | 1619PA5235 | Washer |
| 76 | 1619PA5236 | Screw |
| 77 | 2610A03372 | Cross hair insert |
| 78 | 1619PB5537 | Spacer |
| 8 | 1619PA5048 | Screw |
